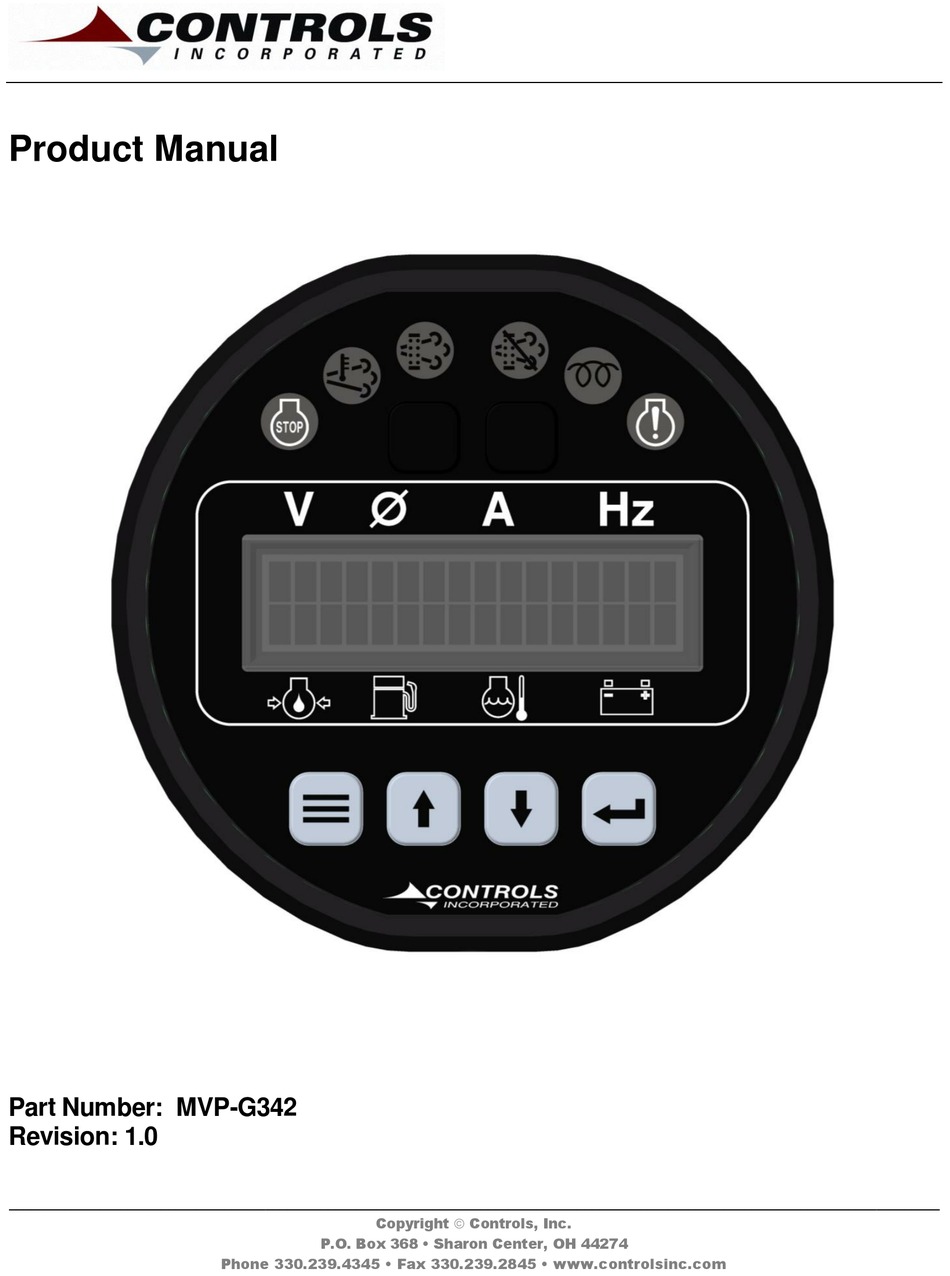

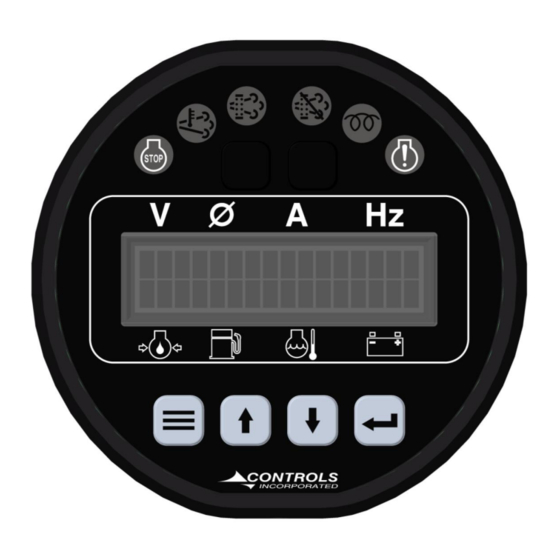

Product Manual
Part Number: MVP-G342
Revision: 1.0
______________________________________________________________________________________________________________________________________
Copyright  Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MVP-G342 and is the answer not in the manual?

Questions and answers

Related Manuals for Controls MVP-G342

Summary of Contents for Controls MVP-G342

  • Page 1 Product Manual Part Number: MVP-G342 Revision: 1.0 ______________________________________________________________________________________________________________________________________ Copyright  Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRIOR TO ENGINE START ………………...…………………………………………………………………….….…….……….…………... CAN Bus CONFIGURATION THROTTLE SETTINGS …………………………..………………………………….……………………………………….….………………..MANUAL OPERATION SPECIFICS INSTALLATION INFORMATION ……...………………………………...……………………………………………………………..CONNECTOR INFORMATION ……...………………………………...…………………………………………………………………. ENGINE ALARMS, CODES AND MESSAGES ……………………………………………………………………………...…….. ENGINE ECU ALARMS/DE-RATE/SHUT DOWNS ALARM ANNUNCIATION AND CODE READER PANEL INDICATION LAMPS ACTIVE AND STORED ENGINE ECU CODES CONTROL PANEL ANALOG AND DIGITAL INPUTS ……………………………………………………………………..…...
  • Page 3 Prior to starting the engine, select the proper throttle control mode and parameters required for application. Generator Safety Configuration Menu Generator Safety Configuration Genset Rating (Default = 1 KW) Genset Derate (Default = 0%) AC Check Bypass (Default = 0:05) High Frequency Check (Default = Off) High Frequency Pre-alarm Setting (Default = 65.0 Hz) High Frequency Alarm Setting (Default = 67.0 Hz)

  • Page 4: Installation Information

    INSTALLATION INFORMATION CONNECTOR INFORMATION...
  • Page 5 BATTERY + CAN HIGH FUEL/RUN CAN LOW FUEL LEVEL OUTPUT 2 BATTERY - OUTPUT 3...

  • Page 6: Engine Alarms, Codes And Messages

    ENGINE ALARMS, CODES AND MESSAGES Engine ECU Alarm/De-Rate/Shut Downs It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes. The panel operates with J1939 engines. These engines have an ECU (engine control unit) which is essentially a computer that runs the engine. When engine parameters are out of normal operating ranges, the ECU takes specific actions which can include the following: 1) Broadcast a trouble code 2) Broadcast a red or yellow lamp...

  • Page 7: Active And Stored Engine Ecu Codes

    Indicator Lamps Regen Regen Lamp Inhibit Active Engine Engine Lamp Lamp Lamp Fault Alarm Lamp Lamp Active and Stored Engine ECU Codes The panel also provides the ability to check the engine ECU for all ACTIVE and STORED engine ECU codes. These codes can be viewed via the Active Codes and Stored Codes menus.

  • Page 8: Control Panel Analog And Digital Inputs

    CONTROL PANEL ANALOG AND DIGITAL INPUTS The panel has one analog input and up to one digital input available to monitor other components, senders or signals. These inputs can be used for a number of purposes including alarms and shut downs.

  • Page 9: Menu System

    MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options. Press UP arrow button to enter menu. Press DOWN arrow button to reverse. Exit Menu System Hold MENU button and press ENTER button. To Change a Setting Press ENTER button to bring up brackets [ ].
  • Page 10 Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes Stored Engine Fault Codes View/Scroll Stored Fault Codes Engine Parameters View ECU Engine Information (% Load, Torque, Oil Temp, etc.) Engine Parameters View Generator Information (Power, Phase, etc.) Emissions Parameters Regen Options (Auto, Inhibit, Request) DEF Level...
  • Page 11 Configuration Menus Quick Setup Engine Type – Default = Electronic T3 Engine Mfg. TSC Minimum Speed TSC Maximum Speed Performance Display Engine Type Eng. Parameter Configuration Parameter Selection (Speed, Coolant Temp., Oil Pressure, Fuel Level, Voltage, Hour Meter) Parameter Setup (Varies based on parameter) Generator Configuration Phase Type Voltage Type...
  • Page 12 Sender Check By-Pass (Default = 0:10) Engine Safety Configuration Oil Pressure Check (Default = Run) Oil Pressure Alarm Action (Default = Shutdown) Oil Pressure Alarm Delay (Default = 0:05) Temperature Check (Default = Run) Low Temperature Pre-Alarm (Default = 0 Deg.) Low Temperature Alarm (Default = 0 Deg.) High Temperature Pre-Alarm (Default = 240 Deg.) High Temperature Alarm (Default = 240 Deg.)
  • Page 13 Display Configuration (10) Display Mode Voltage Display English/Metric Selection Performance Display Off/On Fuel Display CAN Configuration Engine Manufacturer (11) TSC1 Address (Default = 3) Others available Source Address (Default = 44) Others available Engine Address (Default = 0) Others available Speed Transmit On/Off Temperature Transmit On/Off Oil Pressure Transmit On/Off...
  • Page 14 Allow Service Regeneration Yes/No (Deere Only) Regeneration Interlock On/Off TSC Transmit Yes/No (stop TSC to engine during regeneration) DPF Inhibit Lamp Source XCAN-AC Calibration Call Controls, Inc. for Details (14) (15) Clutch Configuration Clutch #1 Engage Trip (Default = None)
