Controls MVP-A6235 Product Manual

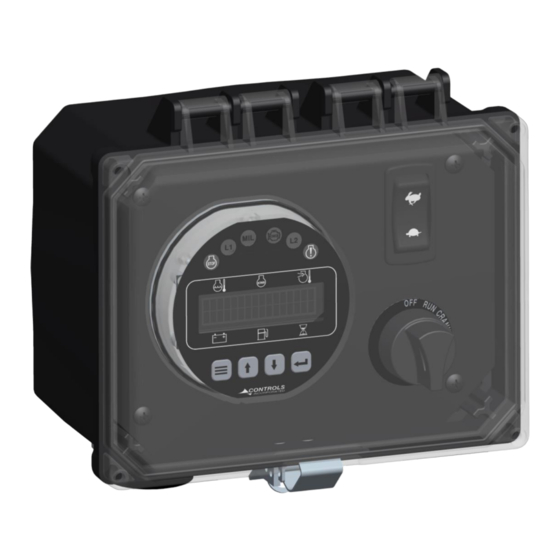

Engine control module for kubota diesel engines
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Part Number: MVP-A6235
Revision: 2.0
Engine Type: Kubota Diesel with DPF Emissions Control
______________________________________________________________________________________________________________________________________
Product Manual
Engine Control Module
Kubota Diesel Engines
Copyright  Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVP-A6235 and is the answer not in the manual?

Questions and answers

Related Manuals for Controls MVP-A6235

Summary of Contents for Controls MVP-A6235

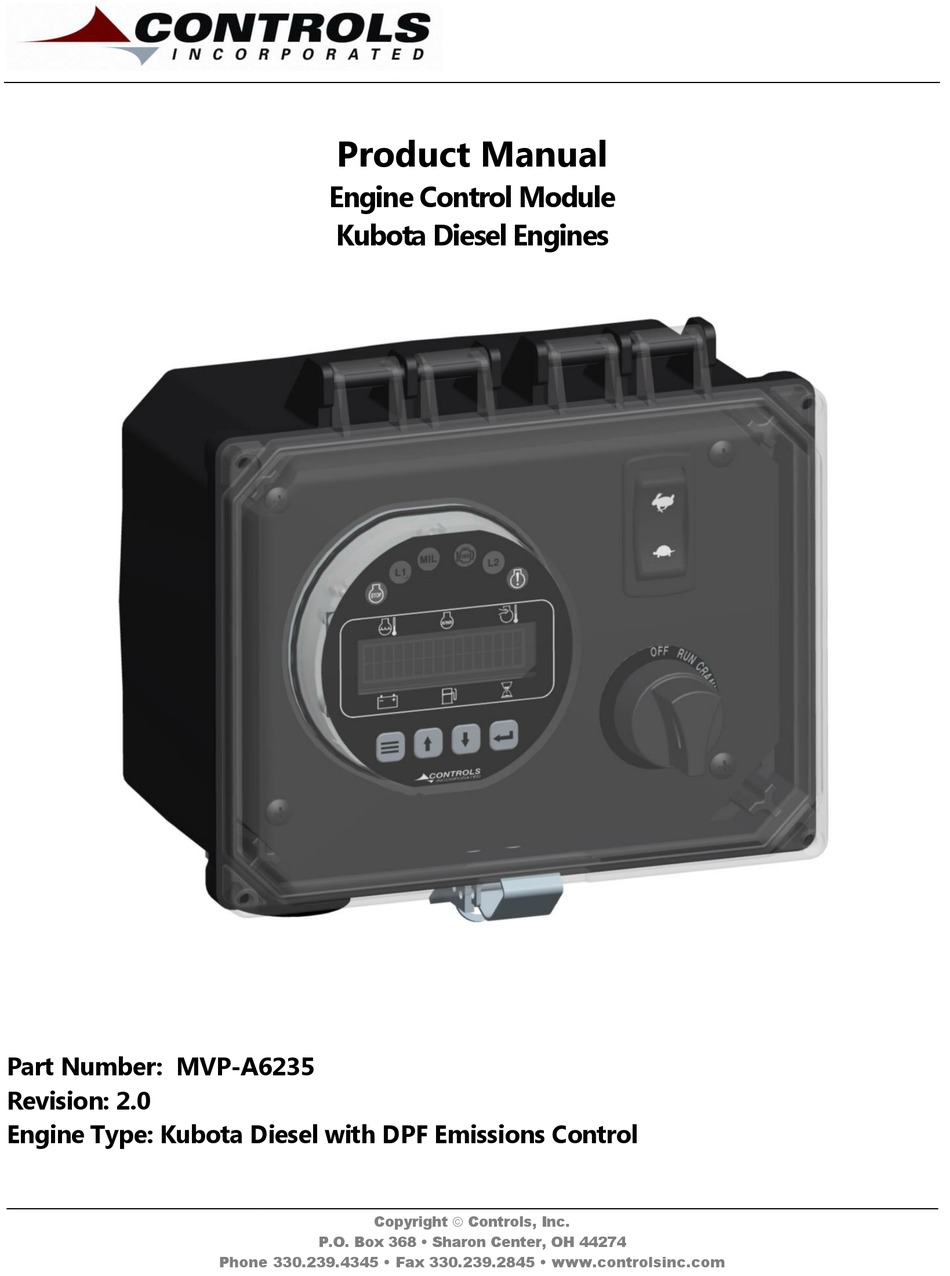

  • Page 1 Product Manual Engine Control Module Kubota Diesel Engines Part Number: MVP-A6235 Revision: 2.0 Engine Type: Kubota Diesel with DPF Emissions Control ______________________________________________________________________________________________________________________________________ Copyright  Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...

  • Page 2: Table Of Contents

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS INSTALLATION INFORMATION ……...………………………………...……………………………………………………………..CONNECTOR INFORMATION ……...………………………………...………………..…………………………………………………. MENU NAVIGATION ………………………………………………………………..……………………………………………..…………….…..MENU SYSTEM …………………………………………………………………...…………………………………………………..……………….…..

  • Page 3: Installation Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 2 -...
  • Page 4 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION BATTERY + 5VDC SUPPLY CAN HIGH NEUTRAL SWITCH CAN LOW THROTTLE DOWN...
  • Page 5 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S PANEL CONNECTOR Engine Harness Connector –Deutsch 21 pin (HDP24-24-21PE) Engine Harness Connector (21 Pin)

  • Page 6: Menu Navigation

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU NAVIGATION To access the control module menu system, power the unit and press the Menu button. While pressing the menu button a message will appear to also press Enter to access.

  • Page 7: Operator Menu

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Operator First Menu Menu Controller Setup Menu OPERATOR MENU - 6 -...

  • Page 8: Emissions Parameters

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Emissions Parameters This menu allows for the viewing of the engine emissions data as broadcast by the ECU by pressing the up arrow button.

  • Page 9: Module Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S This menu allows for the viewing on the engine model number and serial number.

  • Page 10: Controler Setup Menu

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Navigating the Controller Setup menu structure is done in the same manner as the Operator menu system.

  • Page 11: Parameter Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S the control panel programming. For more detailed options, you can use the main menu structures that follow.

  • Page 12: Throttle Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Heading Default Range Configure Channels Channels/Custom Message Digital Input Normally Open Open/Closed Pre Alarm/Alarm/Throttle Up/Throttle Down/Neutral...
  • Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S stop anywhere in between. The TSC Multistate throttle allows you to set up to four ascending discrete speeds.

  • Page 14: Engine Safety Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S J1939 throttle, also called “torque speed control” or TSC1. This is the most commonly used throttle option.

  • Page 15: Module Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Heading Default Range Sender Check Bypass 0:10 Seconds 0:05 -1:00 Fuel Level Check Off/Always/Run...

  • Page 16: Display Configuration

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Heading Default Range Low Power Mode Off/On Power Save Delay 2:00 2:00-5:00 Pre Alarms Displayed...

  • Page 17: Safety Shutdowns

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S The primary engine protection in an engine equipped with an ECU is managed by the engine’s ECU.

  • Page 18: Indicator Lamps

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S removing power to the fuel solenoid or ignition circuit. The display will indicate the reason for the shutdown and a red alarm lamp will be illuminated in the upper left corner of the module.
  • Page 19 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S The engine ECU continuously monitors the engine’s emissions parameters. When certain conditions are reached, the ECU will indicate that a regen is needed. This controller works in cooperation with the ECU to display this information as well as provide an interface between the operator and ECU.
  • Page 20 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S The MVP module has two regeneration function buttons, Regen Request and Regen Inhibit. Regen Request – This button will operate when a required regen has been annunciated by the ECU and subsequently denied by the Operator.
  • Page 21 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S If the Operator chooses Yes, the controller will alert the Operator that the engine RPM may increase.
  • Page 22 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S After the operator acknowledges a final prompt screen, a regen request will be sent to the engine ECU.
  • Page 23 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S The regen process will be aborted if either the Neutral Switch or the Parking Brake circuits open during the process.
