R&S TSMA6 Manual

R&S TSMA6 Manual

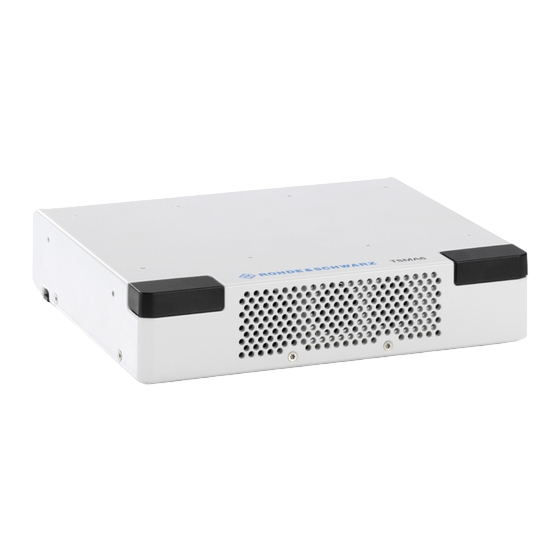

Autonomous mobile network scanner
Hide thumbs Also See for TSMA6:

Advertisement

Quick Links

Download this manual
®
R&S
TSMA6
Autonomous Mobile Network Scanner
Supplement Resizing Backup
Partition
(a0èÃ2)
4900905302

Advertisement

loading

Related Manuals for R&S TSMA6

Summary of Contents for R&S TSMA6

  • Page 1 ® R&S TSMA6 Autonomous Mobile Network Scanner Supplement Resizing Backup Partition (a0èÃ2) 4900905302...

  • Page 2: Problem Description

    4 Resize Backup Partition Size..............4 1 Affected Devices This supplement is only relevant for R&S TSMA6 devices (4900.8005K02) with a serial number < 101146. The supplement has to be applied only, if the creation of a user backup from the R&S TSMA6 web GUI is not possible (see...
  • Page 3 ® Verify Backup Partition Size R&S TSMA6 3 Verify Backup Partition Size To verify the size of the backup partition, proceed as follows 1. Open the Disk Management. Use <Windows> + <R> to open "Run", type diskmgmt.msc in the empty box and click "OK".
  • Page 4 4 Resize Backup Partition Size To resize the backup partition, proceed as follows. 1. Bring the R&S TSMA6 into "PC Mode" and close any open program. 2. A third party tool is used to resize partitions. Navigate to the AOMEI Hompage and download the "Partition Assistant Standard Edition".
  • Page 5 7. In the "Move and Resize Partition" dialog, click on the right slider, keep the mouse button pressed and move it in the left direction to shrink the "Data" partition. The size of shrinking depends on our assembled hardware option: ● TSMA6-B1T (256 GB) – "Unallocated space after": 70.00 GB –...
  • Page 6 ® Resize Backup Partition Size R&S TSMA6 – "Unallocated space after": 70.02 GB – "Partition size": 792.18 GB Confirm with "OK". 8. Select the "Backup" partition and with the right mouse click choose "Resize Parti- tion". 9. In the "Move and Resize Partition" dialog, click on the left slider and keep the mouse button pressed to move it in the left direction to enlarge the "Backup"...
  • Page 7 The resized "Backup" partition should be extended to the following values: ● Unallocated space before: 0.00 KB ● Partition size: 80.97 GB 10. Check the partition sizes before you confirm. ● TSMA6-B1T (256 GB) ● TSMA6-B1S (1 TB) Supplement Resizing Backup Partition 4900.9053.02 ─ 02...
  • Page 8 ® Resize Backup Partition Size R&S TSMA6 11. Press "Apply" to start the partition resizing. 12. In the following dialog, press "Proceed". 13. If the program detects any partition used by other applications, confirm with "Yes". Supplement Resizing Backup Partition 4900.9053.02 ─ 02...
  • Page 9 15. The process if finished successfully when the following dialog is displayed. 16. Confirm with "OK". 17. Restart the R&S TSMA6. The "Backup" button should now be available in the web- GUI. 18. Navigate to "Start" > "Settings" > "System" > "Apps & features" to uninstall "AOMEI Partition Assistant"...
  • Page 10 ® Resize Backup Partition Size R&S TSMA6 19. The R&S TSMA6 is now ready for operation. The "Backup" button should appear in the web GUI. Supplement Resizing Backup Partition 4900.9053.02 ─ 02...
