Eros Six Drawer
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
57 x
57 x
36 x
bolt
locking nut
dowel
long screw
F
L
L
R
R
30 x
12 x
Long screw
L+R
Slde rail

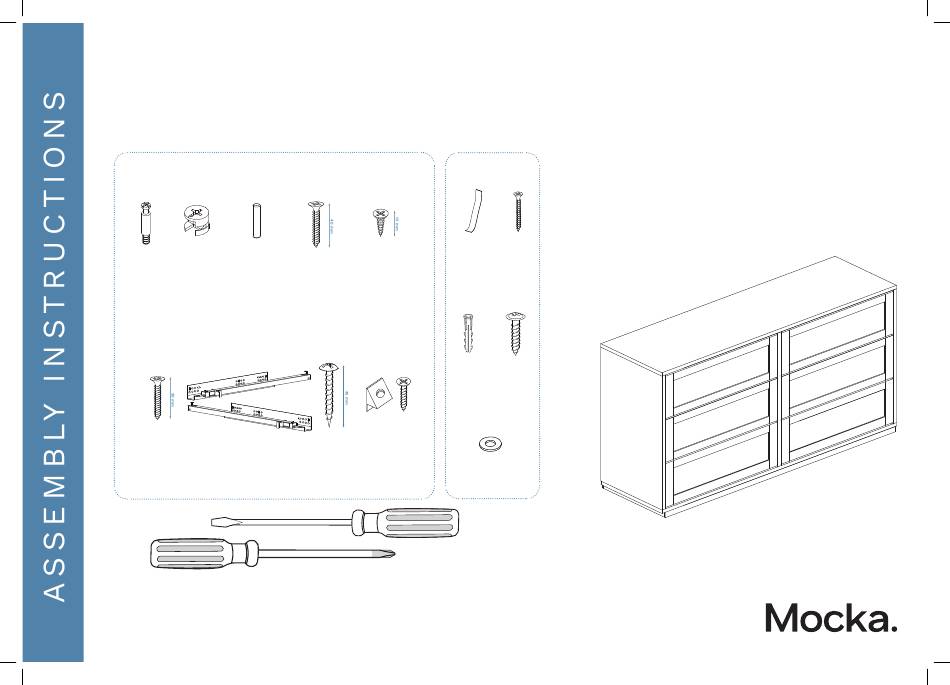

HARDWARE SUPPLIED
Phillips & Flathead screwdrivers and hammer required
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
mocka.co.nz I mocka.com.au
D
E
W
2 x
safety
strap
13 x
16 x
small screw
X
I
H
2 x
wall
anchor
Z
11 x
12 x
wedge
long screw
2 x
washer
WARNING: Any furniture that is not anchored to a wall has the potential to
tip over in certain circumstances, i.e. if a child attempts to climb up on the
furniture or in the event of an earthpuake. Accordingly, we recommend that
all furniture is anchored to a wall. We supply a free safety wall anchor with
all furniture sold and we recommend these are used to prevent your product
tipping. The fixing device provided should fit most wall types, but please note
that different wall materials may require different fixing devices from those
supplied.
2 x
long
screw
Y
2 x
screw
Advertisement
Related Manuals for Mocka Eros Six Drawer
Summary of Contents for Mocka Eros Six Drawer
- Page 1 Eros Six Drawer Thank you for your purchase. WARNING: Any furniture that is not anchored to a wall has the potential to Please follow the instructions below for correct assembly. tip over in certain circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthpuake.
- Page 2 Eros Six Drawer Attach 3 x left slide rails (L) to panel [3] and secure with 9 x small screws (E). Insert Insert 13 x bolts (A) into panel [1]. Tighten with a srewdriver. 2 x bolts (A) into panel [3]. Tighten with a screwdriver.
- Page 3 Eros Six Drawer Attach 3 x left slide rails (L) to panel [5] and secure with 9 x small screws (E). Insert Attach 3 x right slide rails (R) to panel [4] and secure with 9 x small screws (E).
- Page 4 Eros Six Drawer Attach 3 x right slide rails (R) to panel [5] and secure with 9 x small screws (E). Insert 4 x dowels (C) to panels [6] and attach panels [4] and [5]. Insert 4 x Insert 2 x bolts (A) into panel [5]. Tighten with a screwdriver.
- Page 5 Eros Six Drawer Insert 4 x dowels (C) to panels [6] and attach panels [3] and [5]. Insert 4 x Attach panels [7] to panel [1] and secure with 4 x locking nuts (B). locking nuts (B) into panels [6]. Tighten with a screwdriver.
- Page 6 Eros Six Drawer Insert 6 x dowels (C) into panel [3], [4] and [5]. Attach panel [1] to panels [3], Slide panels [8] between the grooves on panels [3], [4], [5] and [7] to [4] and [5], secuure with 9 x locking nuts (B). Tighten with a screwdriver.
- Page 7 Eros Six Drawer Panel piece x 2 Attach 6 x bolts (A) into panels [9]. Tighten with a screwdriver. Insert 6 x dowels (C) into panels [3], [4] and [5]. Attach panel [2] to panels [3], [4], [5] and [7], securing with 13 x long screws (D). Tighten with a screwdriver.
- Page 8 Eros Six Drawer Insert 4 x dowels (C) into panels [2] and [9]. Attach panels [9] and [10] to Insert 12 x dowels (C) to panels [10] and attach panels [9]. Insert 6 x panel [2] and secure with 11 x long screws (H). Tighten with a screwdriver.
- Page 9 Eros Six Drawer Drawer x 6 Drawer x 6 Slide panels [15] between the grooves on panels [12] and [13] to Insert 30 x bolts (A) into panel [11]. Attach panels [12], [13] and [11] to panels form thebase of the drawer as shown. Attach panels [14] to [11] and secure with 24 x locking nuts (B).
- Page 10 Eros Six Drawer Drawer x 6 Attach panels [16] to panels [12], [13] and [14] secure with 30 x medium screws (F). Attach 2 x wall strap (W) to panels [7] using 2 x screw (Y). Tighten with a Tighten with a screwdriver.
- Page 11 Eros Six Drawer Ⅰ Ⅲ Ⅱ Ⅳ Now all drawers are made up, slide them into rails in the six drawer cabinet. Tighten with a screwdriver. mocka.co.nz I mocka.com.au...
- Page 12 Eros Six Drawer Strap Washer Wall anchor Wall screw Wall screw Wall screw Once assembled lift furniture into place, do not drag. Use a drill to create a small hole lining up with the top of the safety stap (W). Fasten to wall using wall anchor (X), washer (Z) and screw.
