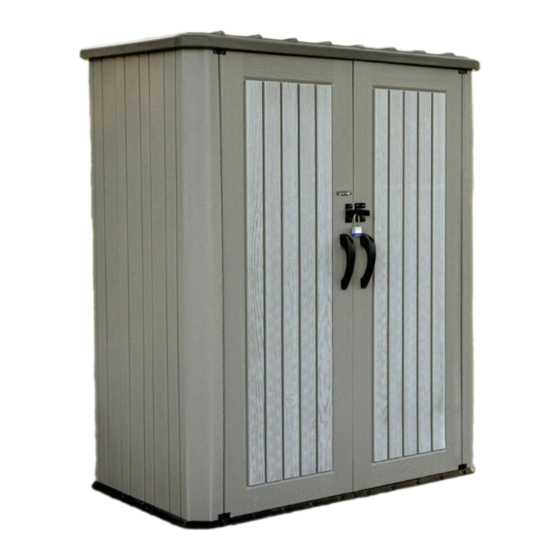

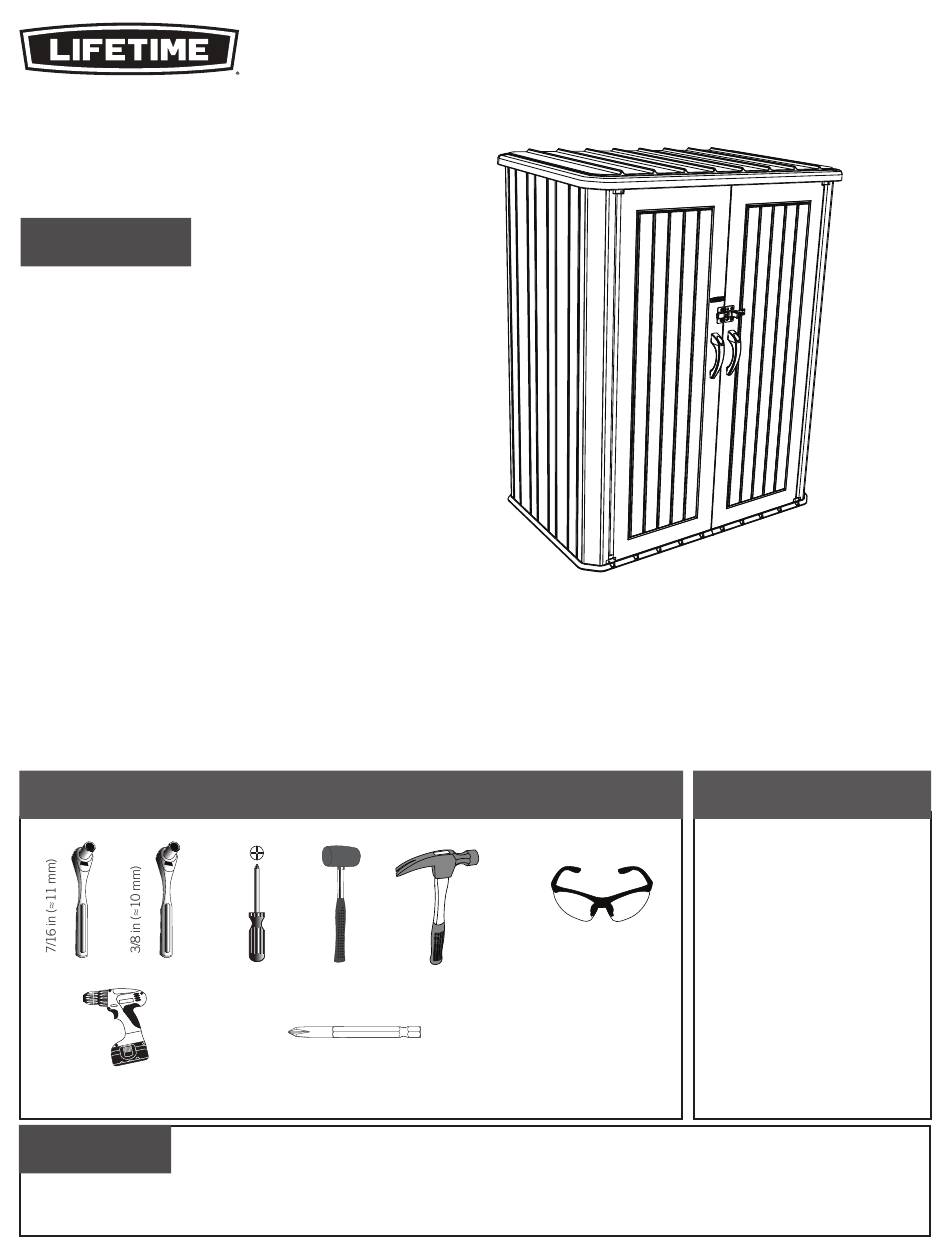

VERTICAL
STORAGE SHED
MODEL 60375
ITM./ART. # 2127829
BEFORE ASSEMBLY:
• Assemble on a level platform
• At least 2 people recommended for setup
• Inspect all parts and hardware. Ensure all are
included using the Parts Identifier in the middle
of these instructions. The Parts Identifier , in
yellow, can be removed from the instructions for
quick reference
FOR DOMESTIC OUTDOOR USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED (NOT INCLUDED—UNLESS OTHERWISE INDICATED*)
Electric Drill
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
ADC #2 Phillips Bit
(Included)
Live Chat: www.lifetime.com
(click on "LIVE CHAT" tab)
For customer service in the United Kingdom and continental Europe:
É-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
MODEL# AND PRODUCT ID
Model Number: 60375
Product ID:
TABLE OF CONTENTS
Icon legend....................................................4
Warnings & notices......................................5
Parts identifi er..............................................6
Floor & wall assembly..................................8
Shelf installation........................................24
Door Assembly.............................................30
Roof installation.........................................45
Wall hook installation.................................55
Door alignment...........................................57
Cleaning & Care..........................................59
Registration..............................................60
Warranty....................................................61
(both are needed when contacting us)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 60375 and is the answer not in the manual?

Questions and answers

Related Manuals for Lifetime 60375

Summary of Contents for Lifetime 60375

  • Page 1 Cleaning & Care..........59 ADC #2 Phillips Bit Registration..........60 (Included) Warranty............61 Electric Drill QUESTIONS? CONTACT LIFETIME CUSTOMER SERVICE: Live Chat: www.lifetime.com MODEL# AND PRODUCT ID Call: 1-800-225-3865 (both are needed when contacting us) (click on “LIVE CHAT” tab) Model Number: 60375 For customer service in the United Kingdom and continental Europe: 7:00 am–5:00 pm (Monday–Friday) MST...
  • Page 2 Garantie............62 (Incluse) Perceuse électrique ® QUESTIONS ? CONTACTER AUX SERVICES À LA CLIENTÈLE LIFETIME N° DE MODÈLE ET RÉFÉRENCE DU PRODUIT t’Chat en direct: www.lifetime.com Composer le 1-800-225-3865 (cliquer sur la languette « LIVE CHAT ») (il faut avoir les deux au moment de nous contacter) Du lundi au vendredi 7:00 h –...

  • Page 3: Table Of Contents

    Registro.............60 (Incluida) Garantía............63 Taladro eléctrico ® ¿PREGUNTAS? PONERSE EN CONTACTO CON LOS SERVICIOS DE CLIENTES LIFETIME Chat en vivo: www.lifetime.com MODEL E ID DEL PRODUCTO Llamar : 1-800-225-3865 (cliquear en la lengüeta «LIVE CHAT») (se necesitan los dos al contactarnos) De lunes hasta viernes 7:00 h–17:00 h (MST)

  • Page 4: Leyenda De Íconos

    ICON LEGEND / LÉGENDE DES ICÔNES / SIGNIFICADO DE LOS ÍCONOS • Indicates special heed should be taken when reading. • Indique qu’une attention spéciale doit être portée à la lecture. • Indica que uno debe prestar atención al leer. •...

  • Page 5: Advertencias Y Avisos

    WARNINGS & NOTICES / AVERTISSEMENTS ET AVIS / ADVERTENCIAS Y AVISOS English: • Failure to follow these warnings may result in serious injury or property damage and will void warranty. • To ensure safety, do not attempt to assemble this product without following the instructions carefully. •...

  • Page 6: Identifi Cador De Piezas

    PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS Plastic Parts / Pièces en plastique Piezas de plástico DRI (x1) AGL (x1) AGY (x1) AHD (x1) AGW (x1) AGN (x1) DRH (x1) HEP (x2) CCC (x1) HES (x2) BYS (x2) BYR (x2) HET (x2) EUG (x2)
  • Page 7 PARTS IDENTIFIER / IDENTIFICATEUR DE PIÈCES / IDENTIFICADOR DE PIEZAS Metal Parts / Pièces en métal Piezas de metal HEG (x2) 1745.2 mm HEI (x2) 1738.6 mm HEJ (x2) HEU (x2) HEN (x1) HEM (x1) HEO (x2) HEC (x1) HED (x1) FGM (x1) DGR (x1) DGS (x1)

  • Page 8: Ensamble Del Piso Y De Los Muros

    FLOOR & WALL ASSEMBLY / ASSEMBLAGE DU PLANCHER ET DE MURS / ENSAMBLE DEL PISO Y DE LOS MUROS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Blister Pack / Blister Blíster CHK (x2) ADZ (x20) DDL (x2) ADC (x1) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts / Pièces en métal...
  • Page 9 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS DDL (x2) • Slide the tabs along the edge of an right fl oor panel (DRH) underneath the other left fl oor panel (DRI). The tabs interlock.
  • Page 10 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • While another adult holds the panel (AGY) in place, insert a square wall support tube (HEJ) into the square hole at the bottom of the Panel.
  • Page 11 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • While another adult holds the panel (AHD) in place, insert two square wall support tubes (HEI) into the square holes at the bottom of the panel.
  • Page 12 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide the panel to the right to lock the panel into place. • Faites glisser le panneau vers la droite afi n d’enclencher le panneau en place.
  • Page 13 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) • Align the fi ve holes along the edges of the panels. While another adult presses against the back of the panel, secure the panels together with fi...
  • Page 14 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1.10 • Fold the edges of the left rear corner panel (AGL). Tilt the panel to locate the end tabs over the slots in the fl oor panel. Stand the wall panel upright while inserting the tabs into the slots.
  • Page 15 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 1.11 • Align the fi ve holes along the edges of the panels. While another adult presses against the back of the panel, secure the panels together with fi...
  • Page 16 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1.12 • Fold the edge of the right front corner panel (AGY). Tilt the panel to locate the end tabs over the slots in the fl oor panel. Stand the wall panel upright while inserting the tabs into the slots.
  • Page 17 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 1.13 • Align the fi ve holes along the edges of the panels. While another adult presses against the back of the panel, secure the panels together with fi...
  • Page 18 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1.14 • Fold the edge of the left front corner panel (AGN). Tilt the panel to locate the end tabs over the slots in the fl oor panel. Stand the wall panel upright while inserting the tabs into the slots.
  • Page 19 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x5) 1.15 • Align the fi ve holes along the edges of the panels. While another adult presses against the back of the panel, secure the panels together with fi...
  • Page 20 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1.16 • Using two (2) adults, turn the shed on it’s back. • À l’aide de deux (2) adultes, tournez la remise sur le dos. •...
  • Page 21 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 1.18 • While holding the hinge cap in place, insert the wall support tube (HEG) into the hole at the front right-hand side of the fl...
  • Page 22 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x1) ADC (x1) 1.19 • Place a bushing (HEA) onto the wall support tube. • Placez une bague (HEA) sur le tube de soutien mural. •...
  • Page 23 SECTION 1 (CONTINUED) / SECTION 1 (SUITE) SECCIÓN 1 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x1) ADC (x1) 1.21 • Using a mallet, gently tap the bushing and wall support tube to the bottom of the fl oor. •...

  • Page 24: Instalación De La Estantería

    SHELF INSTALLATION / INSTALLATION DU RAYONNAGE / INSTALACIÓN DE LA ESTANTERÍA HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Blister Packs / Blisters Blísteres CHK (x6) HEQ (x2) ADZ (x8) FEX (x2) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts / Pièces en métal Piezas de metal...
  • Page 25 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS FEX (x2) • There are three heights from which to choose for the shelves. The heights do not have to be the same for both shelves. Locate the level of each shelf and place a screw anchor (FEX) into the side walls of the shed.
  • Page 26 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x4) • Insert the triangular shelf brackets (HET) into the slots in the wall/shelf support channels. •...
  • Page 27 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x2) HEQ (x2) • Place an L-shaped shelf bracket (HES) up against the corner wall panel at the same level as the triangular bracket.
  • Page 28 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Snap the support tube (HEU) into the groove along the bottom of the shelf (HEP). To orient the shelf correctly, the three- letter ID, HEP, on the bottom of the shelf should be on the left-hand side.
  • Page 29 SECTION 2 (CONTINUED) / SECTION 2 (SUITE) SECCIÓN 2 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x8) • Secure the shelf to the brackets using eight (8) screws (ADZ). Do not overtighten; tighten only only until fl ush with the brackets. Repeat this step for the remaining shelf.

  • Page 30: Ensamble De Las Puertas

    DOOR ASSEMBLY / ASSEMBLAGE DES PORTES / ENSAMBLAJE DE LAS PUERTAS HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Blister Packs / Blisters Blísteres HJS (x2) ADW (x2) CHK (x4) BYZ (x4) GQS (x4) ADZ (x6) AEE (x6) AAB (x2) AEB (x6) AZP (x4) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS...
  • Page 31 DOOR ASSEMBLY / ASSEMBLAGE DES PORTES / ENSAMBLAJE DE LAS PUERTAS PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Plastic Parts / Pièces en plastique Piezas de plástico AGZ (x1) AGO (x1) TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO 7/16 in/po (≈11 mm) ADC (x1)
  • Page 32 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS LEFT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE GAUCHE / ENSAMBLAJE DE LA PUERTA IZQUIERDA • Insert the hinge tube (HEO) up through the hole at the bottom corner of the left door (AGO). The hinge tube (HEO) has a notch at each end.
  • Page 33 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) GQS (x2) FGM (x1) AZP (x2) AEB (x2) • Set the left door on its front, and attach the locking hardware to the door as indicated. •...
  • Page 34 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADZ (x6) • Set the left door channel (HEN) into the groove along the edge of the door. Align the holes at the top and bottom of the channel with the divots at the top and bottom of the left door.
  • Page 35 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADC (x1) CHK (x4) DGS (x1) DGR (x1) • Orient the bottom and top deadbolts (DGR & DGS) as indicated, and align the holes in the deadbolt with those at the bottom of the channel.
  • Page 36 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) ADW (x1) AEE (x3) • Attach the front and rear handle pieces (BYS and BYR) together. Secure the handle to the door using the hardware indicated. •...
  • Page 37 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS RIGHT DOOR ASSEMBLY / ASSEMBLAGE DE LA PORTE DROITE / ENSAMBLAJE DE LA PUERTA DERECHA • Insert the hinge tube (HEO) up through the hole at the bottom corner of the right door (AGZ). Hinge tube has a notch at each end.
  • Page 38 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Slide a right door square tube (HEM) into the square hole at the bottom of the right door (AGZ) until it hangs out about two inches (5 cm).
  • Page 39 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS AHS (x1) • Insert an end cap (AHS) into the end of the square tube. Push the tube into the door until the end cap is fl ush with the bottom of the door.
  • Page 40 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS BYZ (x2) ADW (x1) AEE (x3) 3.10 • Attach the front and rear handle pieces (BYS and BYR) together. Secure the handle to the door using the hardware indicated. •...
  • Page 41 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 7/16 in/po (≈11 mm) GQS (x2) HJS (x2) 3/8 in/po FGN (x1)* (≈10 mm) EDA (x1)* AEB (x4) AAB (x2) AZP (x2) 3.11...
  • Page 42 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS 3.12 • Slide the hinge tube in the left door down onto the rib in the hinge cap. Turn the tube so the notch at the end fi ts over the rib in the hinge cap.
  • Page 43 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS HEB (x1) 3.13 • Slide another hinge cap over the two tubes. The rib in the hinge cap should fi t into the notch in the door hinge tube. •...
  • Page 44 SECTION 3 (CONTINUED) / SECTION 3 (SUITE) SECCIÓN 3 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS HEB (x1) 3.14 • Perform steps 3.12–3.13 for the right door. • Réaliser les étapes 3.12–3.13 pour la porte droite. •...

  • Page 45: Instalación Del Tejado

    ROOF INSTALLATION / INSTALLATION DU TOIT / INSTALACIÓN DEL TEJADO HARDWARE REQUIRED / QUINCAILLERIE REQUISE / HERRAJE REQUERIDO Blister Pack / Blister Blíster HEF (x10) DIW (x4) HEE (x2) CHK (x2) HEK (x2) ADV (x14) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS Metal Parts / Pièces en métal Piezas de metal...
  • Page 46 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADC (x1) HEF (x3) • Place the roof beam (HEC) down onto the underside of the roof panel (CCC). Position the three center-most holes in the tube over the holes in the panel.
  • Page 47 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADC (x1) HEF (x7) • Secure the header (HED) to the roof panel using seven (7) screws (HEF). The hole in the header should face up. Tighten screws only until fl...
  • Page 48 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • Open the doors as shown. Orient the roof assembly as shown and set it down on the walls of the shed. The header should be over the doors.
  • Page 49 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x3) • While one person holds the roof panel against the back wall, secure the roof panel to the left side of the back wall using three (3) screws (ADV).
  • Page 50 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x3) • Repeat step 4.7 for the back right. Do not overtighten. Please note the angle of insertion of the screws—upward. •...
  • Page 51 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS ADV (x8) • As one adult holds the roof panel tight against the wall panels, secure the roof panel to the right corner wall panels using four (4) screws (ADV).
  • Page 52 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS HEK (x2) • The rear walls have been removed from this image. We’re looking from the back towards the front. Secure the roof panel to the front, right corner wall panel using one (1) screw (HEK).
  • Page 53 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS DIW (x4) HEE (x2) • Using an L-bracket (HEE), secure the roof support beam to the wall using two (2) screws (DIW). DO NOT overtighten. Repeat this step for the right side.
  • Page 54 SECTION 4 (CONTINUED) / SECTION 4 (SUITE) SECCIÓN 4 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS CHK (x2) • With the doors open, insert a screw (CHK) through the wall panel and the hinge joint of the left door. This is a self- tapping screw and requires some pressure to get the screw through the metal hinge.

  • Page 55: Instalación De Los Ganchos Murales

    WALL HOOK INSTALLATION / INSTALLATION DES CROCHETS MURAUX / INSTALACIÓN DE LOS GANCHOS MURALES ACCESSORIES REQUIRED / ACCESSOIRES REQUIS / ACCESORIOS REQUERIDOS Wall Hooks Bag / Sac de crochets muraux Bolsa de ganchos murales HEL (x6) PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS TOOLS REQUIRED / OUTILS REQUIS / INSTRUMENTAL REQUERIDO...
  • Page 56 SECTION 5 (CONTINUED) / SECTION 5 (SUITE) SECCIÓN 5 (CONTINUACIÓN) TOOLS AND ACCESSORIES REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y ACCESORIOS REQUERIDOS HEL (x6) • Insert the six (6) wall hooks (HEL) into any of the notches in the wall panels (any wall of the shed). Then push downward to lock them in place.

  • Page 57: Alineación De Las Puertas

    DOOR ALIGNMENT / ALIGNEMENT DES PORTES / ALINEACIÓN DE LAS PUERTAS HARDWARE REQUIRED / HERRAJE REQUERIDO / QUINCAILLERIE REQUISE DOOR ALIGNMENT / ALIGNEMENT DOOR ALIGNMENT / ALIGNEMENT DES PORTES / ALINEACIÓN DE DES PORTES / ALINEACIÓN DE LAS PUERTAS LAS PUERTAS PARTS REQUIRED / PIEZAS REQUERIDAS / PIÈCES REQUISES EUG (x2) TOOLS REQUIRED / INSTRUMENTAL REQUERIDO / OUTILS REQUIS...
  • Page 58 SECTION 6 (CONTINUED) / SECTION 6 (SUITE) SECCIÓN 6 (CONTINUACIÓN) TOOLS & HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS INSTRUMENTAL Y HERRAJE REQUERIDOS • If the Doors are not level, follow the steps below to even them out. • Si les portes ne sont pas de niveau l’une avec l’autre, suivre les étapes ci-dessus pour les niveler. •...

  • Page 59: Limpieza Y Cuidado

    ® product purchase. By following the instructions below, your new Lifetime product should provide you with years of service and enjoyment. The polyethylene panels are stain and solvent resistant. Most stains can be removed using a mild soap and a soft-bristled brush.

  • Page 60: Registro

    à des tiers, et ne leur permettra pas d’utiliser vos données personnelles à leurs propres fi ns. Nous vous invitons à lire notre politique de confi dentialité à www.lifetime.com (en anglais seulement) ENREGISTRER CE PRODUIT aujourd’hui! REGISTRAR EL PRODUCTO EN LÍNEA EN WWW.LIFETIME.COM...
  • Page 61 This warranty is expressly in lieu of all other warranties, expressed or implied, including warranties of merchantability or fi tness for use to extent permitted by Federal and state law. Neither Lifetime Products, Inc., nor any representative assumes any other liability in connection with this product. This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
  • Page 62 à cette condition et aucun représentant de la société ne peut renoncer à l’application de cette politique ou la modifi er. Ce produit n’est pas destiné à des fi ns institutionnelles ou commerciales; Lifetime Products, Inc. n’assume aucune responsabilité à cet égard. Toute utilisation institutionnelle ou commerciale annule la garantie.

  • Page 63: Garantía

    NO ESTÁN DISPONIBLES O SON OBSOLETAS. El comprador original recibe una garantía de que los productos de césped y jardín de Lifetime están libres de defectos de material o mano de obra durante un período de 10 años a partir de la fecha de compra original al por menor.
  • Page 64 NOTES / REMARQUES / NOTAS...
  • Page 65 NOTES / REMARQUES / NOTAS...
  • Page 66 NOTES / REMARQUES / NOTAS...
  • Page 67 IMPORT INFORMATION / IMPORTATIONS / INFORMACIÓN DE IMPORTACIONES Distributed by: Costco Wholesale Korea, Ltd. 40, Iljik-ro Costco Wholesale Corporation Gwangmyeong-si P.O. Box 34535 Gyeonggi-do, 14347, Korea Seattle, WA 98124-1535 1899-9900 1-800-774-2678 www.costco.co.kr www.costco.com Importado por: Importadora Primex S.A. de C.V. Costco Wholesale Canada Ltd.* Blvd.
  • Page 68 ® AMÉLIORER VOTRE ACHAT LIFETIME EN AJOUTANT DES ACCESSOIRES OU DES AUTRES PRODUITS ® Pour acheter des accessoires ou des autres produits Lifetime , visiter le : www.lifetime.com Ou composer au 1-800-424-3865 Du lundi au vendredi 7 h – 17 h (HNR) et samedi 9 h – 13 h (HNR) (Français) ®...
