Lifetime 60392 Assembly Instructions Manual

8'x5' outdoor storage shed

Advertisement

Quick Links

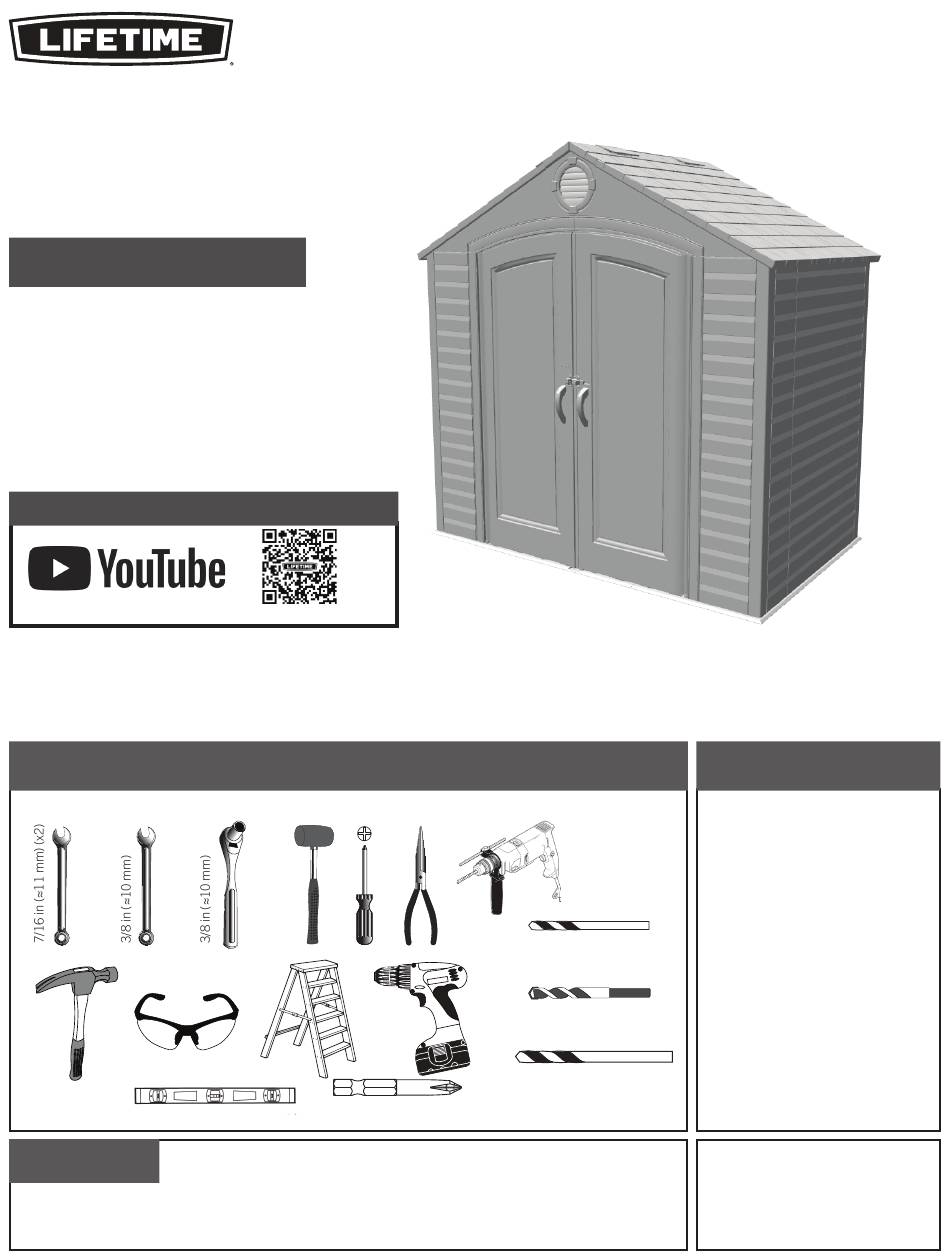

8'x5'
OUTDOOR STORAGE SHED
MODEL 60392
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 3 adults recommended for setup
WATCH THE HOW-TO ON YOUTUBE
Scan the code, or visit go.lifetime.com/60392-fullassembly
®
YouTube
and the YouTube logo are trademarks of Google, LLC.
FOR DOMESTIC USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED
(Not included—unless otherwise indicated*)
QUESTIONS?
Call:
1-800-225-3865
(English, French, Spanish)
ADC (x1)
CONTACT LIFETIME® CUSTOMER SERVICE:
Live Chat:
www.lifetime.com/customerservice/home
(Click on the "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
5/16 in (≈8 mm)
Wood Drill Bit
5/16 in (≈8 mm)
Masonry Drill Bit
ARA (x1)*
1/8 in (≈3mm) included
For Customer Service in mainland Europe,
email:
csinternational@lifetime.com
TABLE OF CONTENTS
Icon legend...................................4
Warnings & notices........................5
Platform assembly........................6
Truss assembly...........................11
Gable assembly...........................16
Door assermbly...........................21
Floor assembly............................31
Parts identifi er.............................i-iv
Wall assembly.............................36
Door installation..........................41
Roof assembly.............................45
Door alignment...........................54
Anchoring your shed...................56
Cleaning & care..........................59
Registration...........................60
Warranty...........................61
Model Number: 60392
Product ID:
