Summary of Contents for Zennio MINiBOX 0-10V X3

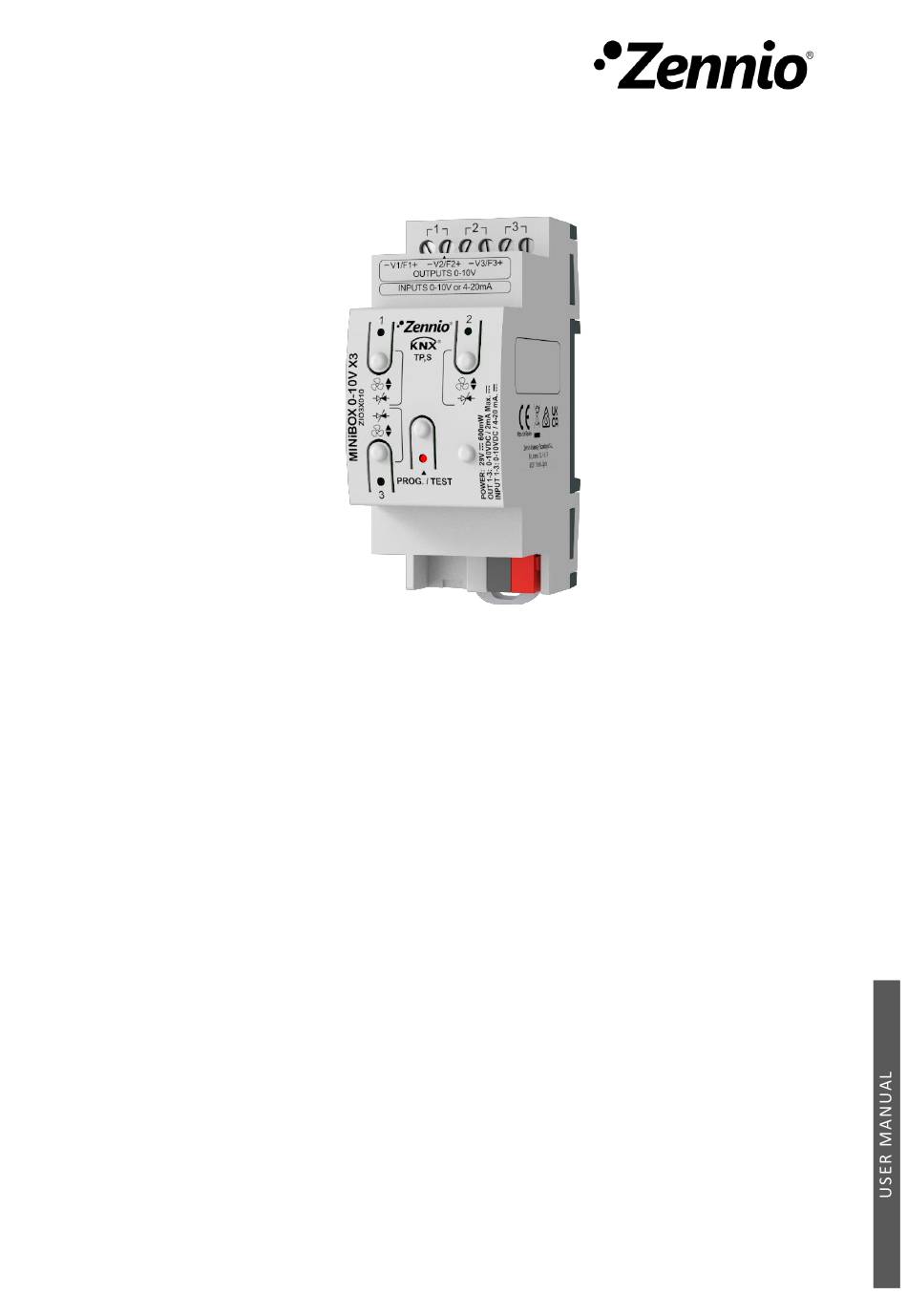

- Page 1 ➢ MINiBOX 0-10V X3 Multifunction Actuator with 3 fold 0-10V analog input/output ZIO3X010 Application program version: [1.0] User manual edition: [1.0]_a www.zennio.com...
-
Page 2: Table Of Contents
MINiBOX 0-10V X3 CONTENTS Contents ............................2 Introduction .......................... 3 1.1 MINiBOX 0-10V X3 ......................3 1.2 Installation ........................4 1.3 Start-Up and Power Loss ....................5 Configuration......................... 6 2.1 General ..........................6 2.2 Fan Coil ..........................8 2.3 Analog Voltage Outputs ....................9 2.4 Thermostats ........................ -
Page 3: Introduction
1 INTRODUCTION 1.1 MINiBOX 0-10V X3 MINiBOX 0-10V X3 from Zennio is a KNX actuator that aims at fulfilling the climate control needs of KNX environments with integrated fan coil units where the valves in the pipes are controlled through analogue 0-10 VDC signals. -
Page 4: Installation
MINiBOX 0-10V X3 1.2 INSTALLATION MINiBOX 0-10V X3 connects to the KNX bus through the on-board KNX connector. Once the device is provided with power from the KNX bus, both the individual address and the associated application program may be downloaded. -
Page 5: Start-Up And Power Loss
Please consult the next sections of this document for further details. On the other hand, when a bus power failure takes place, MINIBOX 0-10V X3 will interrupt any pending actions, and will save its state so it can be recovered once the power supply is restored. -
Page 6: Configuration
MINiBOX 0-10V X3 2 CONFIGURATION 2.1 GENERAL After importing the corresponding database in ETS and adding the device into the topology of the project, the configuration process begins by entering the Parameters tab of the device. ETS PARAMETERISATION The only parameterisable screen that is always available is “General”. From this screen it is possible to activate/deactivate all the required functionality. - Page 7 MINiBOX 0-10V X3 Heartbeat (Periodical Alive Notification) [disabled/enabled]: this parameter lets the integrator incorporate a one-bit object to the project (“[Heartbeat] Object to Send ‘1’”) that will be sent periodically with value “1” to notify that the device is still working (still alive).
-
Page 8: Fan Coil
MINiBOX 0-10V X3 2.2 FAN COIL MINiBOX 0-10V X3 incorporates a module to control the fan and valves of a 2 or 4 pipes fan coil unit via its 0-10V analog voltage outputs. Please refer to the specific user manual “Fan Coil ‘Analog’”, available in the MINiBOX 0-10V X3 product section, at the Zennio website (www.zennio.com) for detailed... -
Page 9: Analog Voltage Outputs
MINiBOX 0-10V X3 2.3 ANALOG VOLTAGE OUTPUTS The MINiBOX 0-10V X3 incorporates three 0-10V analog outputs which can be used to control fans and valves of a fan coil unit or other adjustable loads or generic outputs between these voltage levels. -
Page 10: Thermostats
MINiBOX 0-10V X3 2.4 THERMOSTATS MINiBOX 0-10V X3 implements three Zennio thermostats which can be enabled and configured independently. Please refer to the specific “Zennio Thermostat” user manual (available in the MINiBOX 0-10V X3 product section at the Zennio homepage, www.zennio.com) for detailed information about the functionality and the configuration of the related parameters. -
Page 11: Logic Functions
KNX bus, and to send the results through other communication objects specifically enabled for this purpose. MINiBOX 0-10V X3 can implement up to 10 different and independent functions, each of them entirely customisable and consisting in up to 4 consecutive operations each. -
Page 12: Manual Control
MINiBOX 0-10V X3 2.6 MANUAL CONTROL MINiBOX 0-10V X3 enables manual control of the status of its output relays through the respective pushbuttons on the top of the device. A specific pushbutton is therefore available per output. Manual operation can be done in two different ways, named as Test On Mode (for testing purposes during the configuration of the device) and Test Off Mode (for a normal use, anytime). - Page 13 MINiBOX 0-10V X3 When the button is pressed, the device will act over the output according to the length of the button press and to the current state: ➢ Long press: action equivalent to a 0% or 100% control command in the output control object.
- Page 14 MINiBOX 0-10V X3 ETS PARAMETERISATION The Manual Control is configured from the “Configuration” sub tab itself under “Manual Control”. Figure 4. Manual control. Manual Control [Disabled / Only Test Off Mode / Only Test On Mode / Test Off Mode + Test On Mode]: Depending on the selection, the device will permit using the manual control under the Test Off, the Test On, or both modes.
-
Page 15: Annex I. Communication Objects
MINiBOX 0-10V X3 ANNEX I. COMMUNICATION OBJECTS “Functional range” shows the values that, with independence of any other values permitted by the bus according to the object size, may be of any use or have a particular meaning because of the specifications or restrictions from both the KNX standard or the application program itself. - Page 16 MINiBOX 0-10V X3 [FCx] Manual Fan: Manual Control 2 Bytes C - W T U DPT_TimePeriodHrs 0 - 65535 0 = Endless; 1 - 24 h Duration [FCx] Fan: Automatic Air 1 Byte C - W T U DPT_Scaling 0% - 100%...
- Page 17 MINiBOX 0-10V X3 3=Economy 4=Building Protection 2 Bytes C - W - - DPT_Value_Temp -273.00º - 670433.28º [Tx] Setpoint Thermostat Setpoint Input 58, 96, 134 2 Bytes C - W - - DPT_Value_Temp -273.00º - 670433.28º [Tx] Basic Setpoint Reference Setpoint 0 = Decrease Setpoint;...
- Page 18 MINiBOX 0-10V X3 161, 162, 163, 164, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 178, 179, 180, 1 Bit C - W - - DPT_Bool [LF] (1-Bit) Data Entry x Binary Data Entry (0/1)
- Page 19 Join and send us your inquiries about Zennio devices: https://support.zennio.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo (Spain). Tel. +34 925 232 002. www.zennio.com info@zennio.com...
