WINIX ZERO 5 AIR PURIFIER
USER MANUAL
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZERO 5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Winix ZERO 5

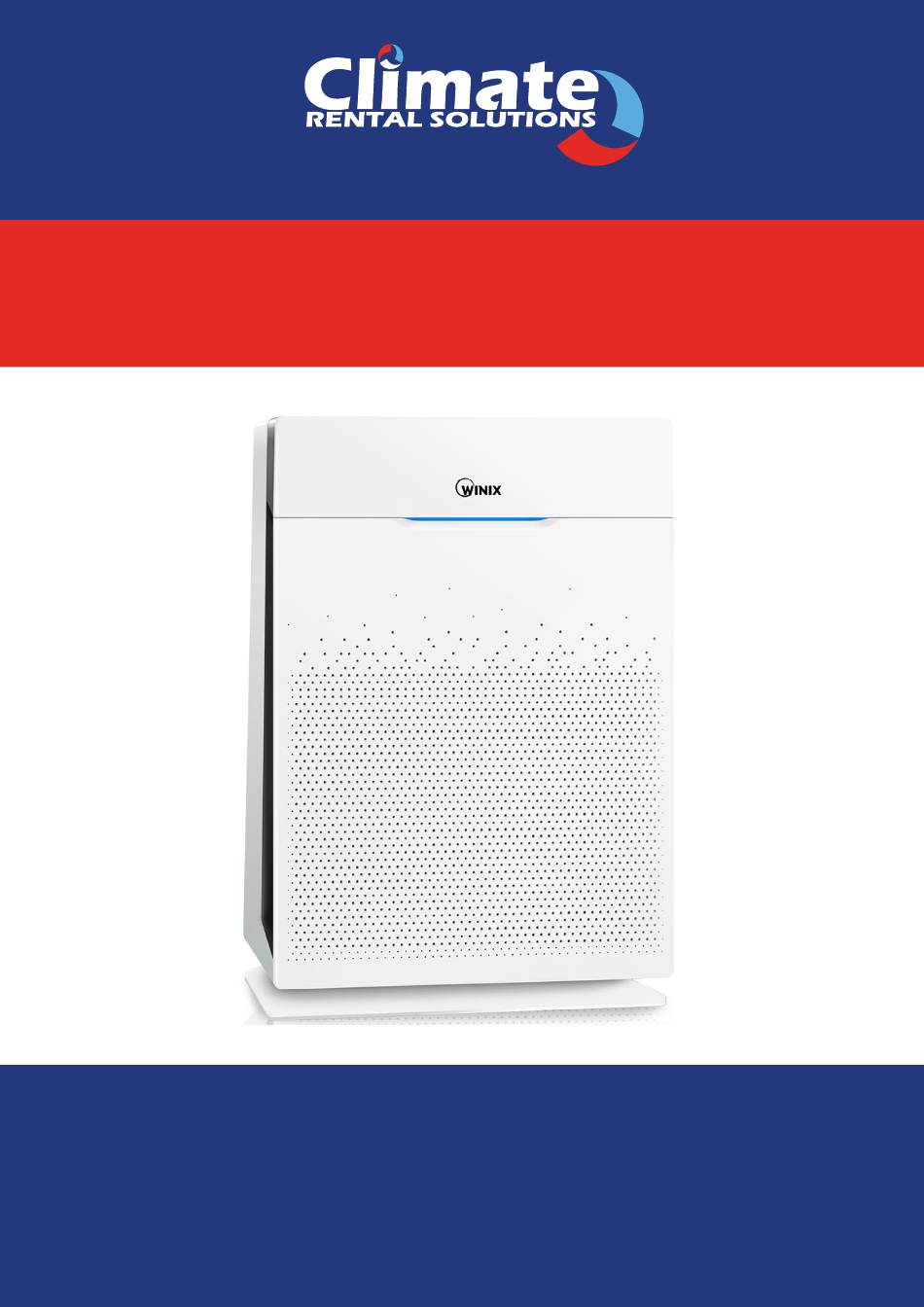

  • Page 1 WINIX ZERO 5 AIR PURIFIER USER MANUAL SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
  • Page 2: Table Of Contents

    USER MANUAL WINIX ZERO 5 AIR PURIFIER CONTENTS CONTENTS ......................2 5-STAGE AIR PURIFICATION ................3 CONTROLS ......................4 WHERE TO USE .....................5 INSTALLING FILTERS ....................6 SAFETY AND CAUTIONS ..................8 INITIAL OPERATION ....................9 AUTO & SLEEP .....................10 MANUAL MODE, TIMER AND PLASMAWAVE ® ...................11 CHILD LOCK, AIR QUALITY LED LIGHT .............12...
  • Page 3: 5-Stage Air Purification

    USER MANUAL WINIX ZERO 5 AIR PURIFIER 5-STAGE AIR PURIFICATION Page 3...
  • Page 4: Controls

    USER MANUAL WINIX ZERO 5 AIR PURIFIER CONTROLS Page 4...
  • Page 5: Where To Use

    USER MANUAL WINIX ZERO 5 AIR PURIFIER WHERE TO USE Allow 30 ~ 45 cm of space between TVs, radios, and other electronic products electromagnetic interference from certain electronics may cause product malfunction. Place indoors away from direct sun light direct exposure may cause product malfunction or failure.
  • Page 6: Installing Filters

    USER MANUAL WINIX ZERO 5 AIR PURIFIER INSTALLING FILTERS This product comes with all of the required filters. The protective plastic wrap must be removed from the filters before use. • Operating the unit without removing the plastic wrap may result in product failure.
  • Page 7 USER MANUAL WINIX ZERO 5 AIR PURIFIER Install the filters until they fit securely in place. Filters must be installed in this order: 3 True HEPA Filter (rear) 2 Deodorization filter (middle) 1 Pre-filter (front) • To install the Pre-filter, insert bottom tabs into the...
  • Page 8: Safety And Cautions

    USER MANUAL WINIX ZERO 5 AIR PURIFIER SAFETY AND CAUTIONS Before operating this equipment, carefully read and follow these safety cautions Ensure filters are inserted before running unit running unit without filters can shorten the units life and cause electric shock or injury.
  • Page 9: Initial Operation

    USER MANUAL WINIX ZERO 5 AIR PURIFIER INITIAL OPERATION Insert the power cord into an electrical outlet. • The Control Panel lights will turn on and off. Press the ‘Power’ button. NOTE : During the first 4 minutes of power up, the Air Quality light will flash as the Smart Sensors measure the air quality in the environment, after which normal operation will begin.
  • Page 10: Auto & Sleep

    USER MANUAL WINIX ZERO 5 AIR PURIFIER AUTO & SLEEP Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo) Auto Mode Enables Auto operation based on the unit’s air quality Smart Sensors.
  • Page 11: Manual Mode, Timer And Plasmawave

    USER MANUAL WINIX ZERO 5 AIR PURIFIER MANUAL MODE, TIMER AND PLASMAWAVE ® Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo) Manual Mode (setting fan speed) Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
  • Page 12: Child Lock, Air Quality Led Light

    USER MANUAL WINIX ZERO 5 AIR PURIFIER CHILD LOCK, AIR QUALITY LED LIGHT Child Lock This feature prevents children from tampering with the control panel. Press and hold the Child Lock button for 3 sec- onds to enable or disable the feature.
  • Page 13: Filter Care

    USER MANUAL WINIX ZERO 5 AIR PURIFIER FILTER CARE Know The Filters When the Check Filter indicator LED is on, it is time to replace both the True HEPA and Deodorization filters. Filter Indicator Light When to service When to replace...
  • Page 14 3 True HEPA filter by pulling on the numbered tags at the top of each filter. NOTICE : For optimal performance, only genuine Winix filters should be used with this unit. Filter Assembly and Replacement Filters should be re-installed in the reverse order of their removal.
  • Page 15 USER MANUAL WINIX ZERO 5 AIR PURIFIER After replacing the filters, power on the unit. Once the unit running, press and hold the RESET but- ton for 5 seconds. Cleaning the Pre-filter Intervals between filter cleanings may vary depending on the air quality.
  • Page 16: Cleaning The Dust Sensor

    USER MANUAL WINIX ZERO 5 AIR PURIFIER CLEANING THE DUST SENSOR Cleaning the Dust Sensor For optimal performance of the Dust Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.
  • Page 17: Cleaning Care

    USER MANUAL WINIX ZERO 5 AIR PURIFIER CLEANING CARE Cleaning the Exterior & Interior Cleaning the exterior Wipe with a soft damp cloth using room tempera- ture water. Afterwards, wipe it down with a clean dry cloth. • For optimal performance, clean the front panel 1-2 times a month.
  • Page 18: Frequently Asked Questions

    USER MANUAL WINIX ZERO 5 AIR PURIFIER FREQUENTLY ASKED QUESTIONS Problem Check / Actions to take It does not turn on at all. Is there a power outage? • Check to see if other lights and electrical equipment are working and try again.
  • Page 19: Unit Specifications

    The exterior, design, and product specifications may be changed without prior notice to improve product performance. SAFETY INSTRUCTIONS Thank you for purchasing a Winix air purifier. This product is for household use only. IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER WARNING : Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.
  • Page 20 USER MANUAL WINIX ZERO 5 AIR PURIFIER IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER • Do not block the intake or outlet vents. • Do not use near hot objects, such as a stove. • Do not use where the unit may come into contact with steam.
