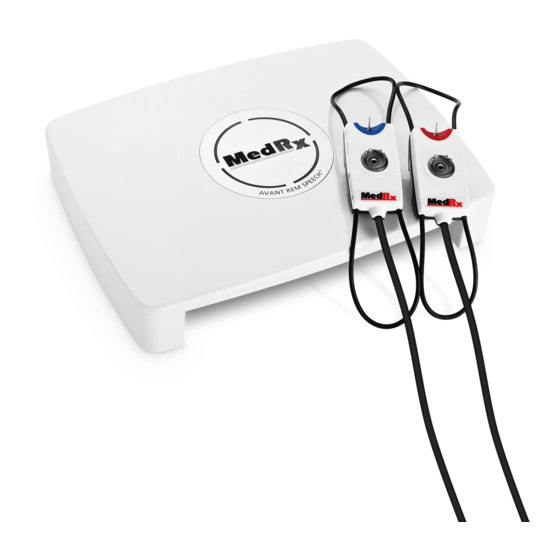

LSM Quick Guide
1. Speaker Calibration:
Click on the speaker calibration icon.
Position the patient so they are directly
facing the speaker and sit no more than
3 feet away. Place the probe mics on
the patient's ears with the probe tubes
hanging. Run the speaker calibration.
2. Probe Tube Calibration:
Click on the probe tube calibration icon.
Place the probe tube in the calibration
position. Run the calibration.
3. Select Target:
Set up the target you would like to use
in the target tab.
4. Select Stimulus:
Choose the stimulus you would like to use
in the wrench tab.
5. Insert the Probe Tube:
Place the probe tubes into the patient's ears.
Confirm placement with the new optional probe tube
insertion guide.
6. Insert Hearing Aid:
Place the hearing aid in the patient's ears while the probe
tubes are in position.
medrx-diagnostics.com
Advertisement
Table of Contents
Related Manuals for MedRx LSM
Summary of Contents for MedRx LSM
- Page 1 LSM Quick Guide 1. Speaker Calibration: Click on the speaker calibration icon. Position the patient so they are directly facing the speaker and sit no more than 3 feet away. Place the probe mics on the patient’s ears with the probe tubes hanging.
- Page 2 7. Optional On-Top Mode: On-top mode is available for testing and fitting on the same computer screen. 8. Run Measurements: Click start to run your measurement and click stop once finished to record. 9. Adjustments/Rerun/Change Levels: Make adjustments in your hearing instrument software and rerun measurements to see changes.
