MedRx Avant A2D+ Training Manual

Audiometer
Hide thumbs Also See for Avant A2D+:
Table of Contents

Advertisement

Quick Links

See also: Training Manual , Installation Manual
TRAINING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Avant A2D+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MedRx Avant A2D+

Summary of Contents for MedRx Avant A2D+

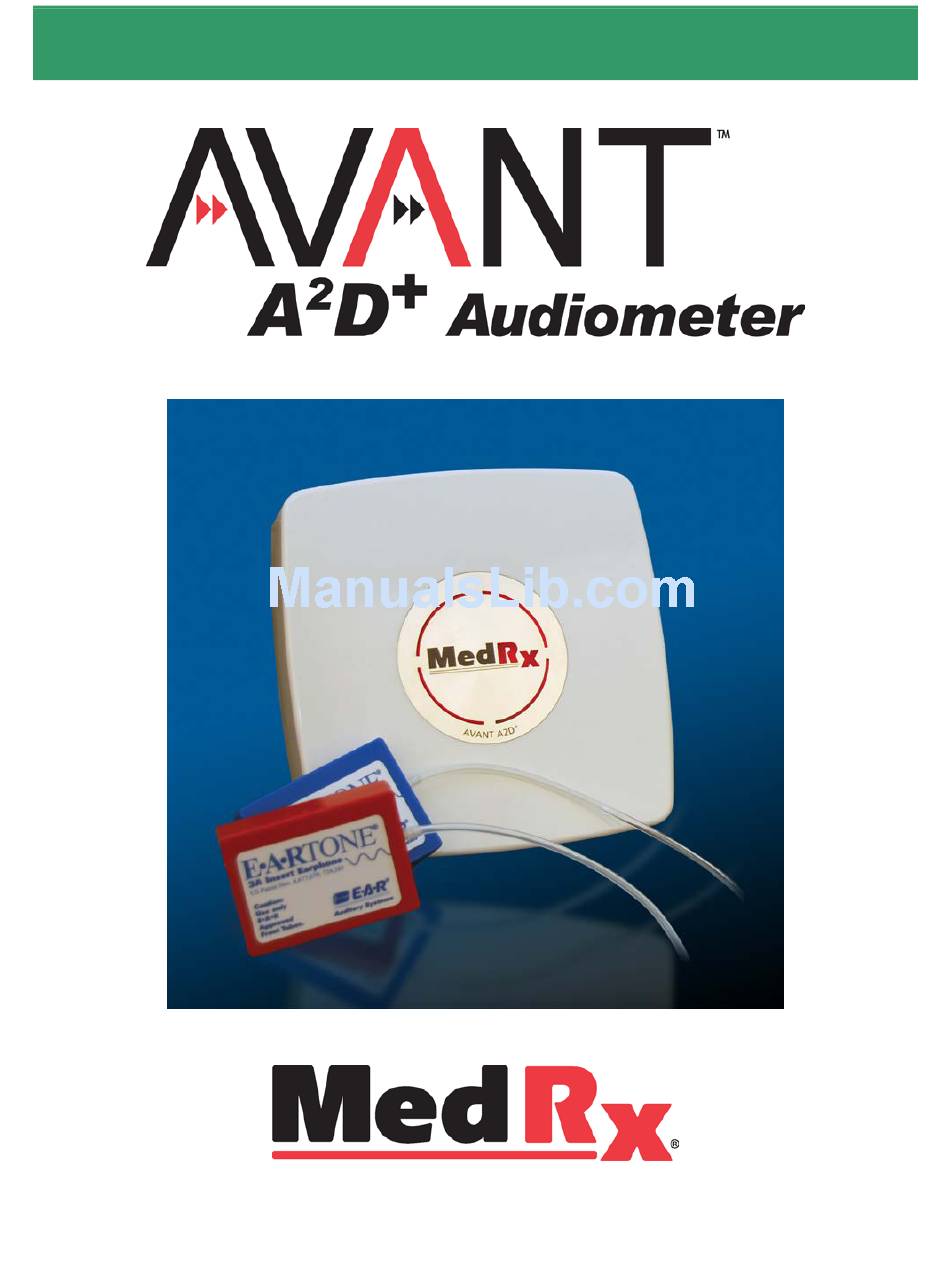

  • Page 1 TRAINING MANUAL...

  • Page 2: Table Of Contents

    #0086 www.medrx-usa.com 1200 Starkey Rd., #105, Largo FL 33771 U.S.A. Toll Free: (888) 392-1234 • (727) 584-9600 Fax: (727) 584-9602 • Email: medrx@medrx-usa.com MedRx's Authorized Representative in Europe (Regulatory affairs only) Emergo Europe, Molenstraat 15 2513 BH The Hague, The Netherlands...

  • Page 3: Introduction

    Compact yet rugged, this PC-Based system is USB powered and supports current ANSI and IEC audiometric tests. This manual assumes that the system hardware, software and drivers are installed and A2D+ working properly. Please refer to the MedRx AVANT Audiometer Installation Manual for A2D+ assistance.

  • Page 4: Avant™ Audiometer Software Overview

    The AVANT Audiometer Software Overview General Overview  AVANT Audiometer software can run stand-alone or from NOAH System or the TIMS NOAH- Compatible Office System. Launching the AVANT Audiometer Software Stand Alone NOAH • Double click the AVANT Audiometer • shortcut on your Windows Desktop.
  • Page 5 Audiometer The screen shots below detail the Basic Options available in the AVANT software. The View tab allows you to set the default The Audiometry tab sets the look and appearance of the test environment. A2D+ behavior of the audiometer. The MHA/HLS tab sets the default look If your system has a Tympanometer and behavior of the Master Hearing Aid...
  • Page 6 Advanced Options The Advanced Options screen allows you to configure your system to meet your individual clinical needs. It also provides MedRx Technical Support with tools for helping you troubleshoot technical issues. Access this screen from the File Menu on the Avant Main Screen as shown to the right.

  • Page 7: Preparing For Testing

    A2D+ as shown. If your booth did not include patch cables these are readily available from electronics or stereo stores, or from MedRx. A2D+ To install the Audiometer inside the booth,...
  • Page 8 Use the accessories provided with your Avant A2D+. Typical acceptable transducers are shown on the “Preparing for Testing” page in the training manual. Operator headsets for use with the Avant A2D+ should have 32 ohms impedance and the speaker power should be at least 50 watts. Air conduction transducers for use with this device should have an impedance of 10 ohms.
  • Page 9 TDH Earphones 1. Place the earphone on the patient’s head so the center of the earphone is directly over the opening of the ear canal. 2. Adjust the headband so the earphones remain in place, but be careful not to make it so tight as to cause patient discomfort.
  • Page 10 Performing Audiometric Testing The screen shot below shows the controls which are available from the Audiometer main window. The sections of the manual that follow explain how to use these tools to perform hearing evaluations using your A2D+ Audiometer. 1. Test selection tool bar 8.

  • Page 11: Pure Tone Audiometry

    Pure Tone Audiometry Pure Tone Audiometry measures the patient’s peripheral hearing sensitivity, or the softest levels they can hear pure tones at a variety of frequencies. These thresholds are plotted on a standard graph called an audiogram. The AVANT Audiometer software controls the hardware, stores the data (if running within NOAH or TIMS) and prints a standard audiogram report.
  • Page 12 Pure Tone Audiometry via the Bone Conductor 1. Following the instructions on page 9, place the Bone Conductor on the mastoid process behind the ear with better air conduction thresholds as measured above. If the thresholds are equal, place the Bone Conductor on the mastoid process behind the right ear. 2.

  • Page 13: Speech Audiometry

    Speech Audiometry Speech audiometry evaluates how well the patient can hear and understand speech. The typical test battery includes tests of speech threshold and tests of speech discrimination. The sections below detail how to perform these tests on the AVANT A2D+ Audiometer. Speech Reception Threshold (SRT) The Speech Reception Threshold (SRT) is defined as the lowest level at which the patient can repeat Spondee words with 50% accuracy.
  • Page 14 10 dB and repeat the steps above. If the patient fails to achieve a 50% score after 6 words at a given level, stop the test, raise the level 5 dB and repeat the steps above. When the patient scores 50% at a given level, the test is complete. The software automatically plots the score on the SRT graph.

  • Page 15: Quicksin

    QuickSIN Purpose of the QuickSIN The primary complaint of hearing-impaired persons is difficulty hearing in background noise. The measurement of SNR loss (signal-to-noise ratio loss) is important because speech understanding in noise cannot be reliably predicted from the pure tone audiogram (Killion & Niquette, 2000). The QuickSIN test was developed to: •...
  • Page 16 1. Select a list from the List Selection Window one of the following two ways: • Click the list, then click Select. • Double-Click the list number. 2. Play the first sentence in the list by clicking the Play button. Ask the patient to repeat the sentence.

  • Page 17: Hearing Loss Simulator

    Hearing Loss Simulator The Hearing Loss Simulator demonstrates the effect of the client’s hearing loss for the significant third party. The program attenuates an input signal to simulate the audiogram. The third party listens to the free field speakers. The third party can hear how their own voice is distorted by the hearing loss when the Record input option is used.

  • Page 18: Master Hearing Aid

    File allows the user to play sound files. The program supports MP3 and WAV files and comes with a preset MedRx Sounds Sensations set of files. After the option is activated, use the player panel to control the playback.

  • Page 19: Printing

    How to use the Master Hearing Aid: 1. Select the Master Hearing Aid (MHA) icon from the main screen. 2. Enter the Audiogram values manually if the data is not automatically imported to this screen. 3. Select the input signal type: File, CD, Mic, or Record. 4.

  • Page 20: Limited Warranty

    MedRx, Inc is not responsible for problems resulting from installation of unapproved software or hardware. In the event of unapproved software or hardware installed on the system causing a conflict, MedRx will service the product for a fee to be determined at the time of service.
