Page 1

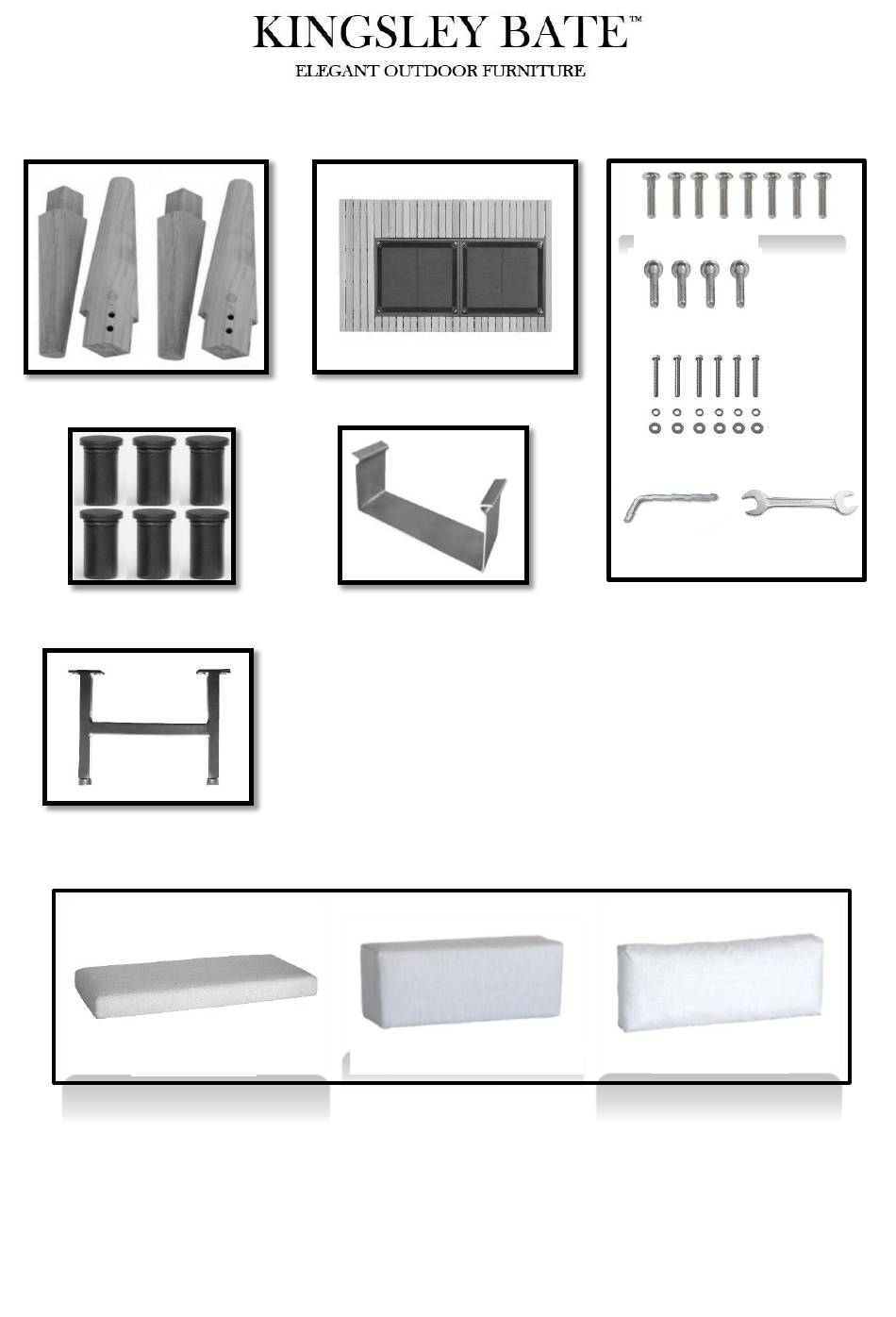

ASSEMBLY INSTRUCTIONS FOR THE LO61/64 M6 X 50mm M6 X 20mm LEGS SEAT FRAME BOLT HEX M8 X 80mm SPLIT & FLAT WASHER ALLEN KEY 4mm WRENCH PLUGS CONNECTOR HARDWARE CENTER LEG SUPPORT BACK CUSHION UPHOLSTERED BACKREST SEAT CUSHION CUSHION...
Page 2
STEP-II Carefully lay the SEAT FRAME upside down on your clean surface, insert and attach the legs as shown in the assembly photographs using the M6 x 50mm bolts provided. You may need to wiggle the legs as you finish tightening the bolts to make sure they are fully secured. NOTE: DO NOT USE POWER TOOLS AS IT MAY DAMAGE THE ITEM.
Page 3
STEP-IV Requires two people. With the assistance of a second person, lift the SEAT FRAME up, rotate it in the air and set it gently back on the ground. Locate the six holes on the underside of the UPHOLDSTERED BACKREST and take note of the position of the corresponding holes on the SEAT FRAME.
Page 4
Plugs are provided to fill any unused holes in the metal frame that may be visible between the slats of the table section. Locate any unused holes in the metal frame that are visible from above. From the underside of the frame, insert a plug upward into the hole as shown in the photographs. The plugs are designed to fit snugly, and it may be necessary to use a rubber mallet, to press them into place.
