ASSEMBLY INSTRUCTIONS FOR THE LO32

LEGS

CONNECTOR

SEAT CUSHION

STEP-I

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the

Wood.

NOTE: During assembly of the furniture please match joints with the corresponding

letters or numbers stamped on wood.

SEAT FRAME

UPHOLSTERED BACK

UPHOLSTERED BACKREST

CUSHIONS

M6 X 50mm

BOLTS HEX M8 X 80mm

SPLIT & FLAT WASHERS

ALLEN KEY 4mm

HARDWARE

BACK CUSHION

WRENCH

Table of Contents

Do you have a question about the LO32 and is the answer not in the manual?

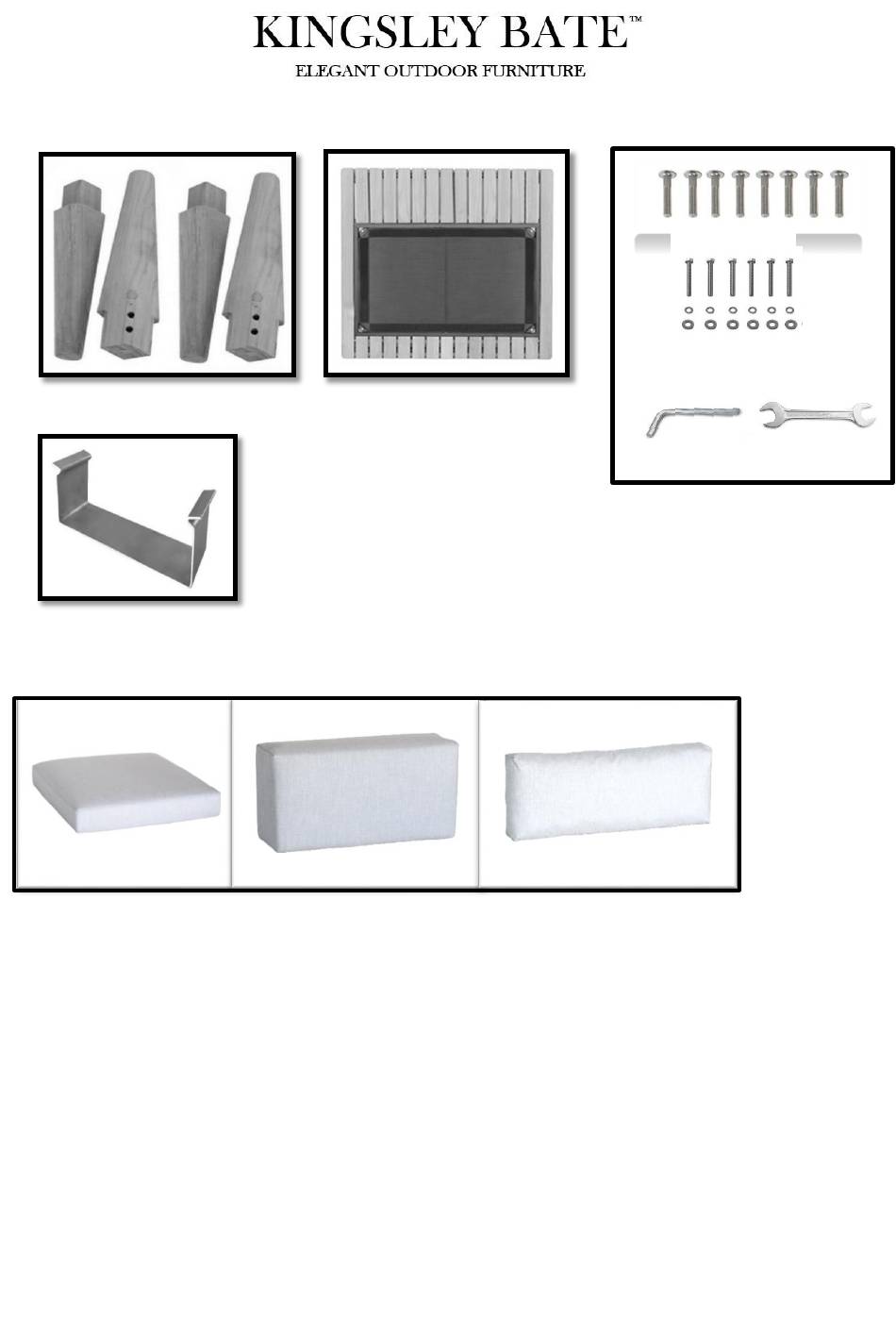

Page 1 ASSEMBLY INSTRUCTIONS FOR THE LO32 M6 X 50mm BOLTS HEX M8 X 80mm SPLIT & FLAT WASHERS LEGS SEAT FRAME ALLEN KEY 4mm WRENCH HARDWARE CONNECTOR UPHOLSTERED BACK SEAT CUSHION BACK CUSHION BACK CUSHION UPHOLSTERED BACKREST CUSHIONS STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the Wood.
Page 2 STEP-II Carefully lay the SEAT FRAME upside down on your clean surface, insert and attach the legs as shown in the assembly photographs using the M6 x 50mm bolts provided. You may need to wiggle the legs as you finish tightening the bolts to make sure they are fully secured. NOTE: DO NOT USE POWER TOOLS AS IT MAY DAMAGE THE ITEM.
Page 3 STEP-IV If you are connecting multiple sectional items together the photographs above illustrate where to attach them. DO NOT ATTACH THEM WHILE ITEM IS UPSIDE DOWN AS YOU WILL NOT BE ABLE TO UPRIGHT THE ASSEMBLY. IF YOU HAVE ANY QUESTIONS REGARDING THE ASSEMBLY OF YOUR KINGSLEY BATE FURNITURE, PLEASE CONTACT KINGSLEY BATE CUSTOMER SERVICE AT 703-361-7000.
