LEG ASSEMBLY
STEP-I
Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
NOTE: During assembly of the furniture please match the tenons and mortise holes with the
corresponding letters or numbers stamped on the furniture.
BOTTOM LONG LEG STRETCHERS and dowel assembly as shown.
STEP-III:
Again, (very important) carefully matching the numbers / letters stamped on the components,
fit the STRETCHER assembly into the LEG ASSEMBLY frames as shown above.

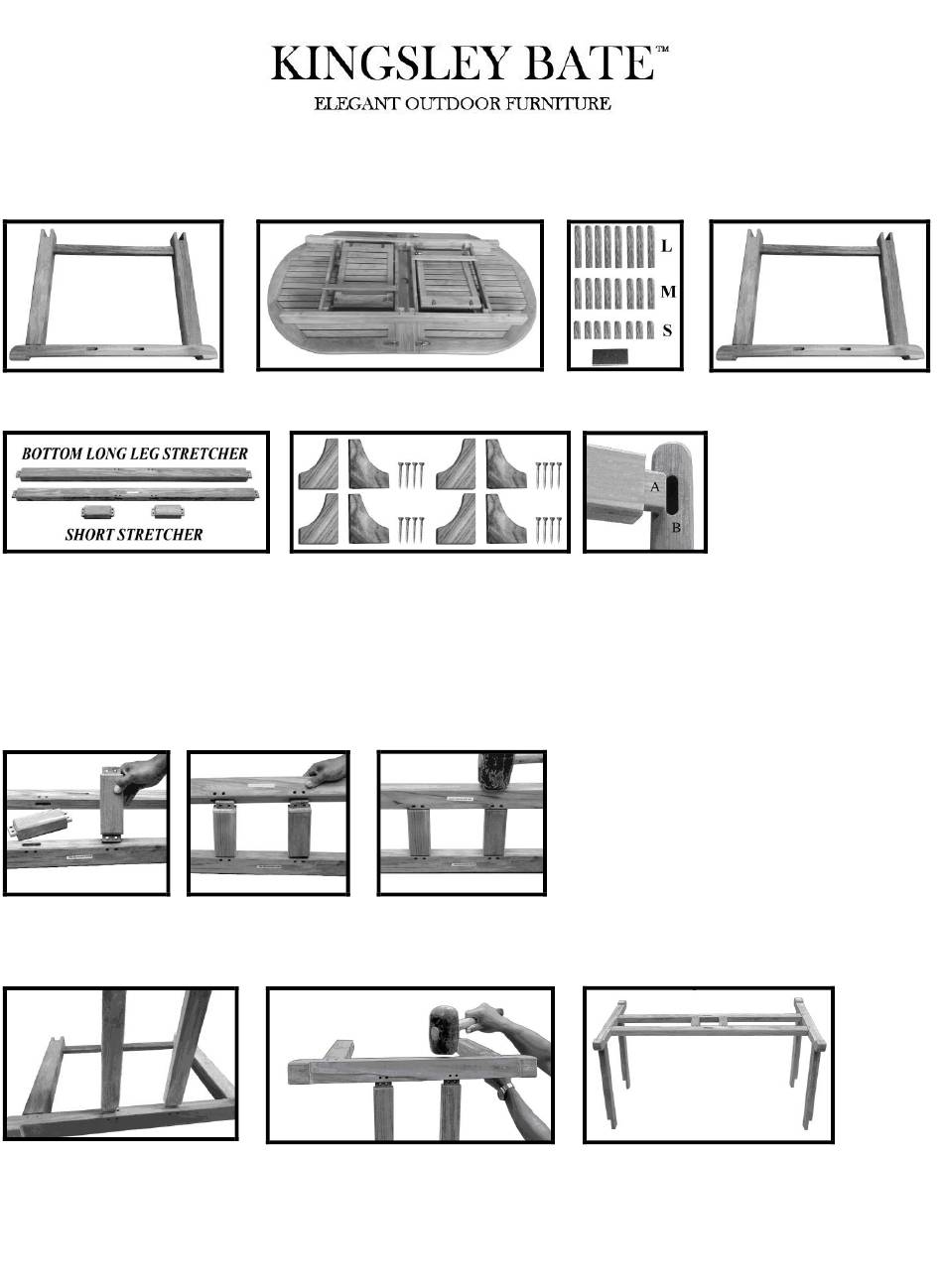

ASSEMBLY INSTRUCTIONS FOR THE TR-114
TABLE TOP ASSEMBLY
LEG SUPPORT BRACKETS
DOWELS
LEG ASSEMBLY
* NOTE
A TENON
B MORTISE HOLE
STEP-II
Making sure to carefully match the
numbers / letters stamped on the
component
parts,
STRETCHER
tenons
respective mortise holes of the
fit
SHORT
into
the
Advertisement
Table of Contents
Related Manuals for kingsley-bate TR-114
Summary of Contents for kingsley-bate TR-114
- Page 1 ASSEMBLY INSTRUCTIONS FOR THE TR-114 LEG ASSEMBLY TABLE TOP ASSEMBLY DOWELS LEG ASSEMBLY * NOTE A TENON B MORTISE HOLE LEG SUPPORT BRACKETS STEP-I Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
- Page 2 STEP-IV: Once you are certain that the LEGS line up with the apron under TABLE ASSEMBLY, Insert all dowels as shown in the photographs. Use the wood block provided in between the hammer head and dowel head for the last few blows to avoid marring the wood.
