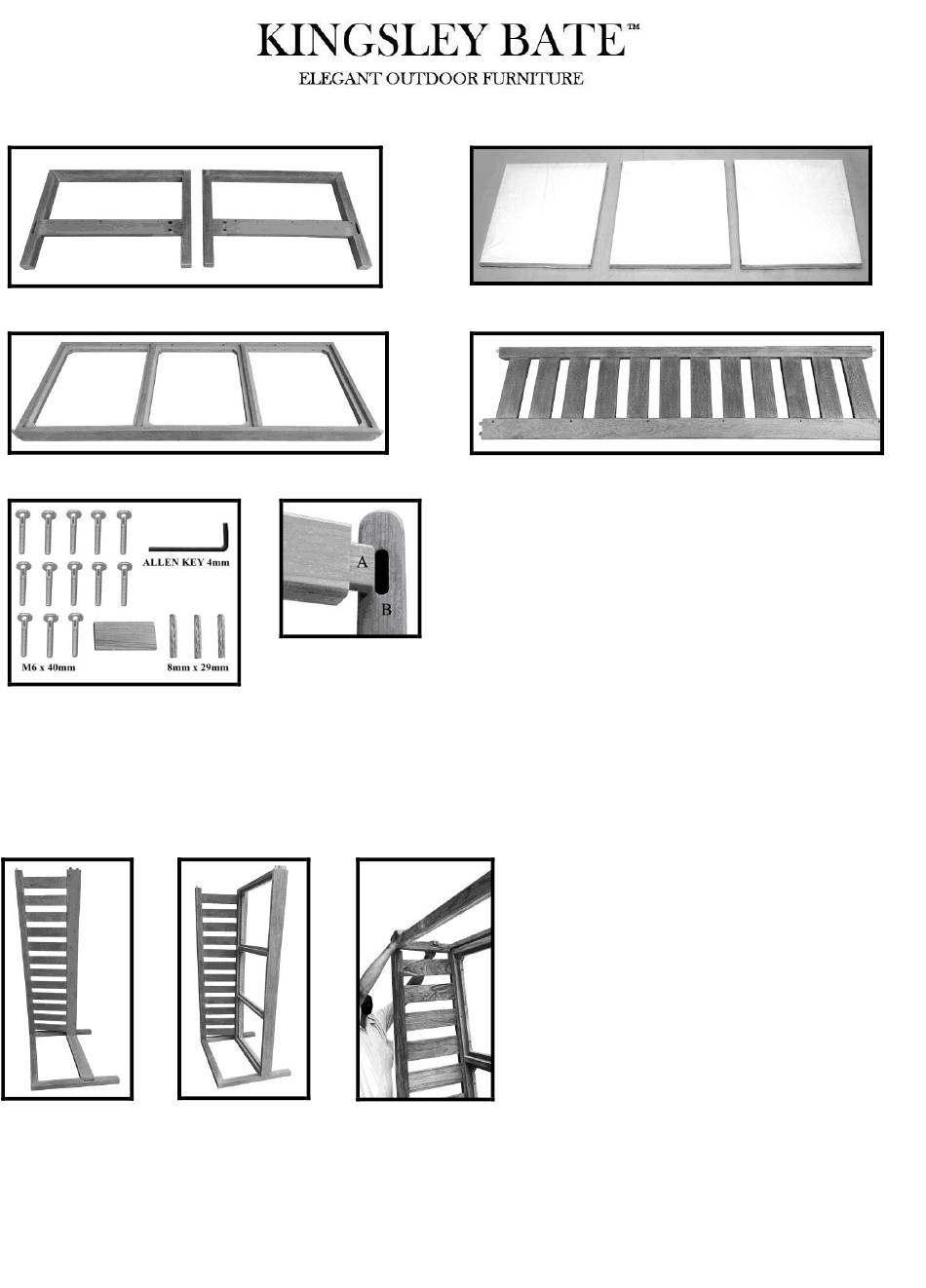

ASSEMBLY INSTRUCTIONS FOR THE MK-80
RIGHT LEFT END FRAME
SEAT FRAME
HARDWARE
STEP-I
Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
NOTE: During assembly of the furniture please match joints with the corresponding letters or
numbers stamped on the wood.
As shown in the photos above, carefully fit the remaining END FRAME mortise holes over all
exposed tenons and using a rubber mallet or a regular hammer with the wood block between
the hammer and the wood, gently drive all the mortise holes onto the tenons until all joints fit
snugly together.
SEAT INSERT
* NOTE
A TENON
B MORTISE HOLE
STEP-II
Gently lay the END FRAME with the
stamps near the mortise holes on a
clean, flat surface and fit the BACK
and SEAT FRAME tenons into the
END
FRAME
necessary, gently rock the parts while
pushing down on them until all the
joints fit snugly together.
BACK
mortise
holes.
If
