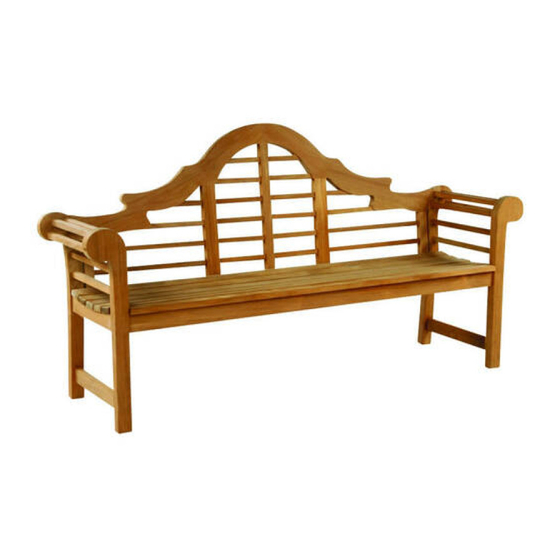

ASSEMBLY INSTRUCTIONS FOR THE LT-60
RIGHT END FRAME
SEAT

STEP-I

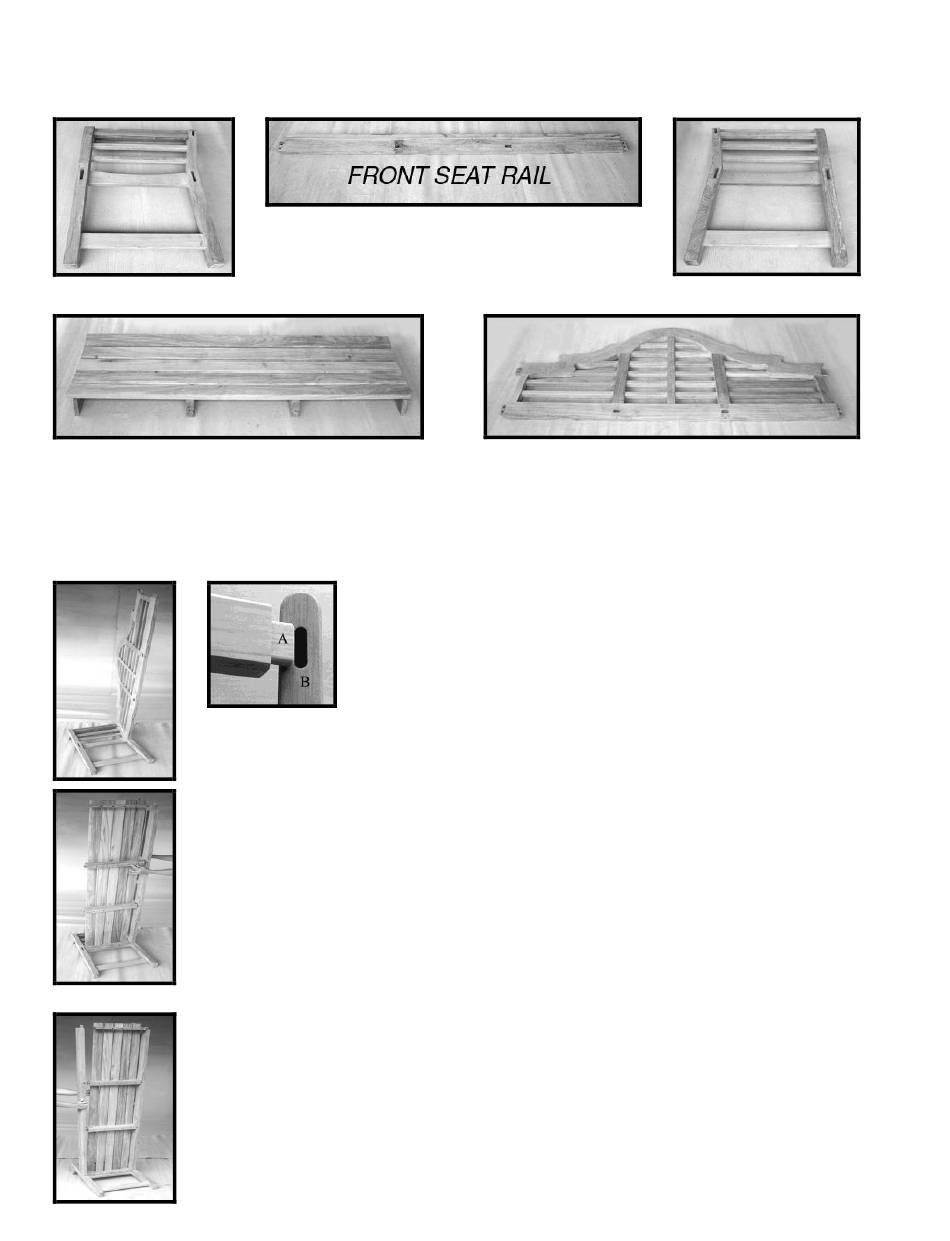

Unpack, inspect and lay the parts on a clean, flat, soft surface to avoid marring the wood.
NOTE: During assembly of the furniture please match joints with the corresponding
letters or numbers stamped on the furniture.

STEP-III

Place the SEAT against the RIGHT END FRAME as shown in the
assembly diagram and insert the tenons of the center seat braces into
the bottom rail mortise holes of the BACK.
NOTE: There is a front and back to the seat. Please make sure to match
the stamped letters or numbers that you will find on the seat braces
under the SEAT with those on the END FRAMES, BACK or FRONT
SEAT RAIL.

STEP-IV

Place the FRONT SEAT RAIL tenon into the RIGHT END FRAME
mortise hole. Place the SEAT tenons into the FRONT SEAT RAIL
mortise holes.
KINGSLEY-BATE
Fine Garden Furniture
*NOTE
A TENON
B MORTISE HOLE

STEP-II

Fit the BACK tenons into the RIGHT END FRAME
mortise holes. If necessary, gently rock the BACK
while pushing the tenons down into the mortise holes
until the joints fit snugly together.
LEFT END FRAME
BACK
