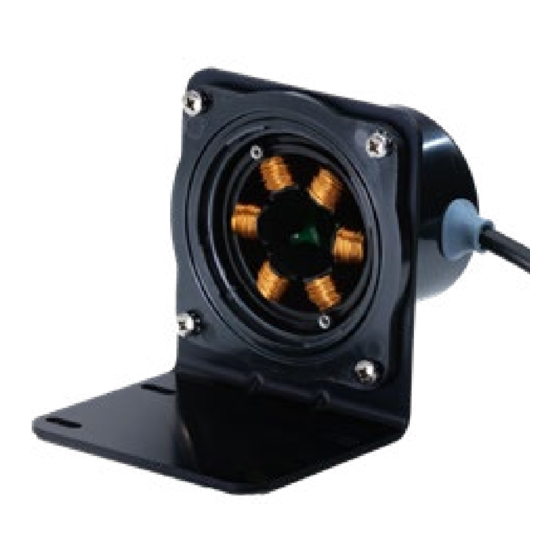

EAGLEDRIVE ™ INSTALLATION, OPERATION AND WARRANTY INFORMATION EagleDrive™ DEMSE DEMSN Without Enclosure EagleDrive™ DEELE DEELN Without Enclosure DOC No: PN 86880 REV A...
Page 2
This document embodies proprietary information owned by Micropump, Inc. and is submitted under a confidential relationship. Except for uses expressly granted in writing, all rights are reserved by Micropump, Inc. A Unit of IDEX Corporation. DOC No: PN 86880 REV A...
Page 3
FCC 15.109(g): 2017 Class A ICES-003:2016 Class A Technical documentation prepared by: Technical File Compiler: Jordan Breazile Fabian Stiegler Mechanical Engineer IDEX Europe GmbH Micropump, Inc Weinstrasse 39 Vancouver, WA 98684 91058 Erlangen Germany Manufacturer: Importer in country of use:...
Page 4
UKCA DECLARATION OF INCORPORATION Herewith we declare that the products described in this Installation, Operation, and Warranty Handbook comply with the following provisions applying to them: Drives, series EMSN and EELN Machinery Directive 2006/42/EC EMC Directive 2004/108/EC Class A Low Voltage Directive 2006/95/EC Applied harmonized standards, in particular: AS/NZS 61000-6-4:2012 Class A EN 809:1998/A1:2009...
Page 5
STA N DA R D L I M I T ED WA R R A N T Y The products manufactured by Micropump Incorporated are warranted to be free from defects in workmanship and material at the time of shipment from the place of manufacture.
Page 6
YO U R M I CRO PU M P PRO DU CT. . . represents years of fluid handling experience and we feel it is the finest product available of its type. The product you have purchased was designed and constructed for use within designated limits and conditions.
SA FE T Y The following are used throughout this guide to indicate procedure that, if not followed correctly, may result in injury to personnel or damage to equipment. Warnings are used to alert the reader to a procedure or practice, which if not followed correctly, could result in personal injury.
L I M I T S O F USE The EagleDrive motor is intended for use with pumps handling fluids in a variety of pump ing systems. These fluids may be innocuous or hazardous, depending on the specific application. You should contact your local Micropump distributor or contact Micropump directly about special limitations of your pump/motor unit with regard to your specific system.
I N STA L L AT I O N I N E X PLOSI V E A N D FI R E DA N G ER ZO N ES Micropump offers products designed and tested for installation in explosive or fire danger zones.
U N PACK I N G A N D STO R AG E Inspect the magnet cup before assembly with the motor. Replace or repair if there are signs of damage. Before installing the product ensure all transit packaging has been removed. Remove the blanks from any inlet and outlet ports.
LOCAT I O N Pump head cannot support the weight of the motor. Ensure the motor is adequately supported by the foundation and/or mounting bracket. The foundation must be capable of supporting the combined weight of the pump and motor and provide a rigid support. The product should be located with the inlet below or even with the liquid level of the fluid supply.
R EQ U I R ED E AG L ED R I V E EL ECT R I CA L CO N N ECT I O N S Electrical installation must be carried out by qualified personnel who are conversant with local electricity installation regulations. Before starting any electrical installation work ensure that the main electrical supply is adequately isolated.
Page 13
E AG L ED R I V E EL ECT RI CA L CO N N ECT I O N S (CO N T I N U ED) Common Ground Main Power IN voltage, control signal inputs, and all outputs use a common ground.
4-20 m A CO N T RO L CO N FI G U R AT I O N To maintain protection of internal drive controller, your external resistor should be fitted with appropriate protection. 4-20mA Control Install a 250 Ohm resistor across the white Speed Input and black Common lead wires.
M A N UA L CO N T RO L CO N FI G U R AT I O N To maintain protection of internal drive controller, your external potentiometer should be fitted with appropriate protection. Manual Control Install potentiometer and resistor (sized according to your voltage supply input) across the red Power In and black Common lead wires.
OT H ER E AG L ED R I V E EL ECT R I CA L CO N N ECT I O N S Tachometer Output The tachometer output can be monitored using a frequency counter. The tachometer output is 0-5V square wave pulse that occurs twice per pump drive revolution.
FAU LT O U T PU T Active low microprocessor output, driven with 5.6kohm pull-up resistor to the internal 5V, should be monitored with a high impedance device (R > 100kohms) load = 5 +/-0.25Vdc high = 0.09 +/- 0.09Vdc 1 kohm impedance low state, 6.6 kohm output impedance hi state Fault signal is Vlow when: Supply under voltage, decreasing below approximately 8 V, ~0.5V hysteresis.
O PER AT I O N Starting or running the pump with the discharge valve closed may result in overpressure in the discharge pipe. Extended periods of dry running may result in permanent damage to the pump and may cause surface temperature to exceed the operating temperature of the pump.
M AG N E T D ECO U PL I N G The EagleDrive pump/motor combinations do not decouple. If pump load becomes excessive, current limiting in the controller prevents motor overload. Additional protection is provided by a thermal sensor which shuts down the drive if the internal temperature exceeds a preset value.
T RO U B L ESH OOT I N G If the EagleDrive does not meet its design performance or fails to operate correctly, refer to the following tables for assistance in identifying the cause and remedy: Execution of troubleshooting steps, determination of root cause and corrective actions should be performed by a skilled maintenance person.
E AG L ED R I V E L E A D W I R E AS SI G N M EN T S Housed version PVC jacketed cable with SR-PVC insulated lead wires, 22 AWG (7/30) per UL STYLE 2517, 105°C, 300V or Micropump-approved equivalent. MODEL DEMSE MODEL DEELE LEAD...
Page 22
E AG L ED R I V E L E A D W I R E AS SI G N M EN T S (CO N T I N U ED) Open-frame connector mates with: Molex Micro Fit 3.0 per Product Specification PS-43045 Tyco Electronics Micro MATE-N-LOK per Product Specification 108-1836 Contact plating: 15μin or 30 μin gold on contact area (100 μin matte tin on solder tails) CONNECTOR...
T ECH N I CA L SPECI FI CAT I O N All Dimensions in mm.[inch] M O D EL D EM SE 3.06 77.65 0.39 2.68 9.91 3.43 87.08 0.20 1.80 45.80 2.17 0.20 EagleDrive Model DEMSE Product Code DEMSE Speed Range 250 to 10000 rpm...
M O D EL D EEL E EagleDrive Model DEELE Product Code DEELE Speed Range 250 to 9000 rpm Typical No-Load Speed (24 VDC Input / 5 VDC Control / 5500 rpm 25°C Ambient) Speed @ Rated Torque 3500 rpm @ 140 mNm (20 oz-in) Input Voltage Range 10 to 38 VDC Max Full-Load Current @ Nominal Voltage (25°C Ambient)
K E Y EL ECT RO N I C S CO M PO N EN T S COMPONENT TYPE MANUFACTURER MFG P/N SOLID TANTALUM CAP TPSC686K016R0200 ELECTROLYTIC CAP PANASONIC EEHZC1H101P ZENER DIODE VISHAY BZT52B3V3-E3-18 SCHOTTKY DIODE DIODES INC BAS70-04-7-F ZENER DIODE PANASONIC DZ2J047M0L TVS DIODE...
E AG L ED R I V E PU M P CO N FI G U R AT I O N S Not all possible configurations are shown. Contact your local Micropump distributor or contact Micropump directly for additional versions. EAGLEDRIVE DEMSE EAGLEDRIVE...
Page 28
To purchase pumps, parts or receive further information contact your local Micropump distributor or contact Micropump directly. Micropump, Inc. A Unit of IDEX Corporation 1402 NE 136th Avenue Vancouver, WA 98684 USA Tel: +1 (360) 253-2008 E-mail: MPVSalesTech@idexcorp.com Web: www.micropump.com Your Micropump Distributor Is: “MICROPUMP”...
