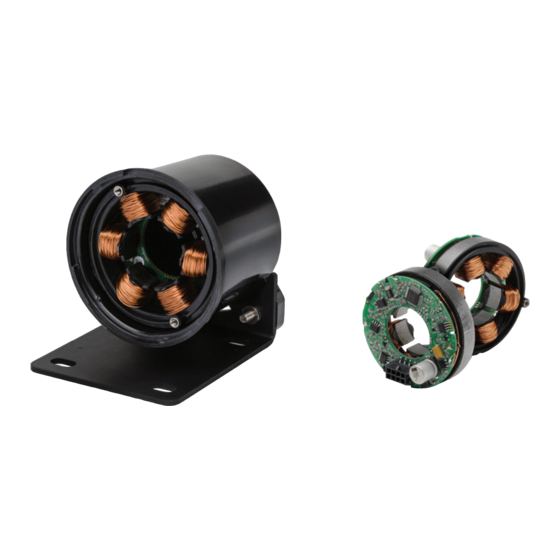

Idex MICROPUMP EagleDrive DEMSE Installation, Operation And Warranty Information
Hide thumbs
Also See for MICROPUMP EagleDrive DEMSE:
Table of Contents
Related Manuals for Idex MICROPUMP EagleDrive DEMSE
Summary of Contents for Idex MICROPUMP EagleDrive DEMSE

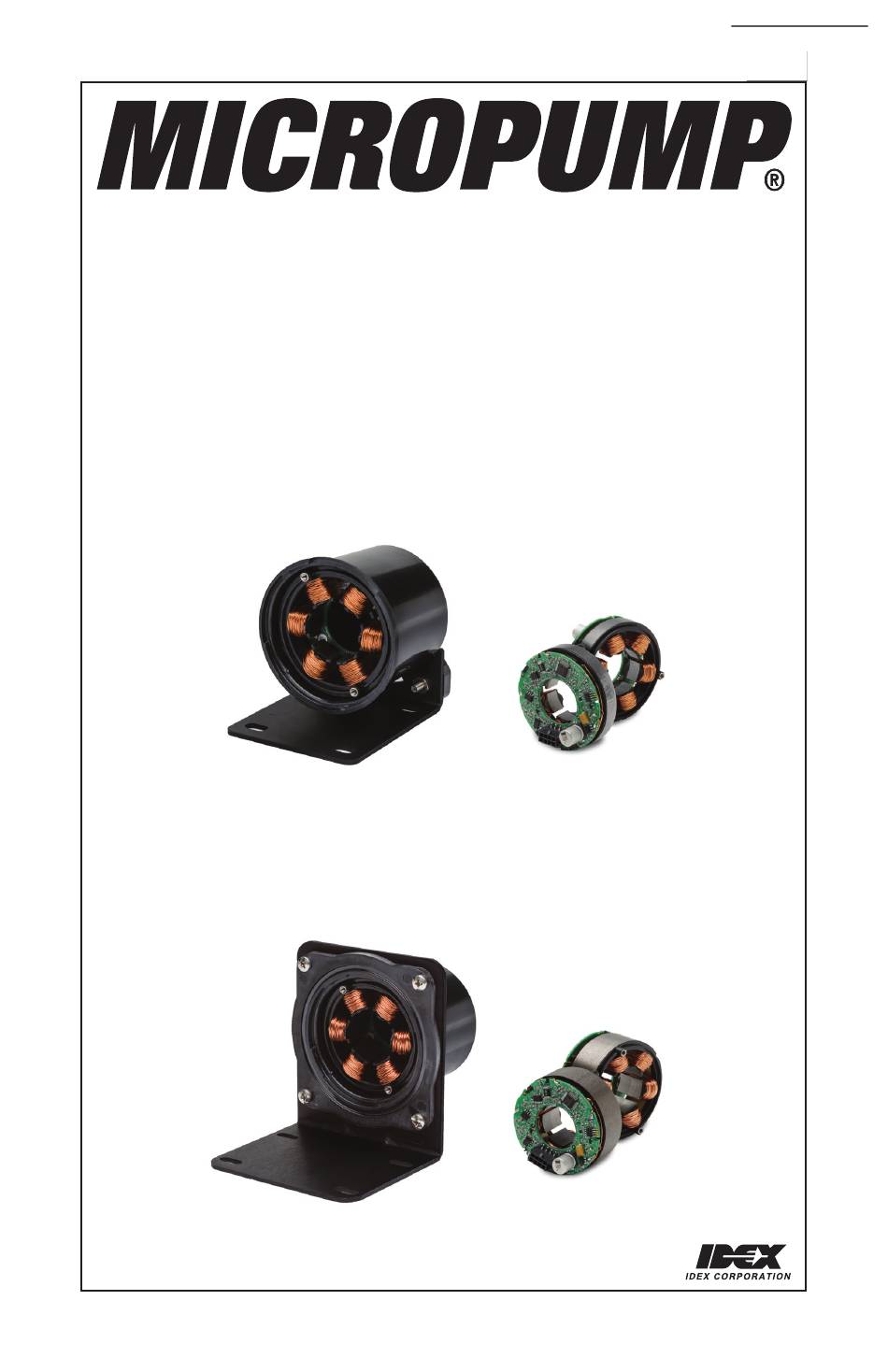

- Page 1 Return to BurtProcess.com CALL TOLL FREE 877-742-2878 FOR SALES AND SUPPORT AGLE RIVE INSTALLATION, OPERATION AND WARRANTY INFORMATION EagleDrive DEMSE DEMSN Without Enclosure EagleDrive DEELE DEELN Without Enclosure DOC No: 8540 REV E...
- Page 2 MICROPUMP INC. from defects in workmanship and material at the time of shipment from the place of A Unit of IDEX Corporation manufacture. Micropump will repair or replace, at its option, any part or component which December 2015 © Micropump Inc.
-
Page 3: Table Of Contents
Safety Your Micropump Product... represents years of fl uid handling experience and we feel it is the fi nest product available The following are used throughout this guide to indicate procedure that, if not followed of its type. correctly, may result in injury to personnel or damage to equipment. The product you have purchased was designed and constructed for use within designated Warnings are used to alert the reader to a procedure or practice, which if limits and conditions. -
Page 4: Limits Of Use
Limits of Use Installation in Explosive and Fire Danger Zones The EagleDrive motor is intended for use with pumps handling fl uids in a variety of pump- Micropump offers products designed and tested for installation in explosive or fi re danger zones. -
Page 5: Unpacking And Storage
Unpacking and Storage Location Inspect the magnet cup before assembly with the motor. Replace or Pump head or adaptor cannot support the weight of the motor. Ensure repair if there are signs of damage. the motor is adequately supported by the foundation and/or mounting bracket. -
Page 6: Electrical Connection
EagleDrive Electrical Connection EagleDrive Electrical Connection (Continued) Electrical installation must be carried out by qualifi ed personnel who are Control Signal In conversant with local electricity installation regulations. 0 to 5 VDC speed control, when the lead is connected to a supply within the range the motor speed is proportional to the input. - Page 7 Fault Signal Out EagleDrive Lead Wire Assignments MODEL DEMSE The two fault signals provide diagnostic feedback to the user’s control CAUTION system. These use the common ground to provide HI or LOW signals. When both Fault Signals indicate HI, the EagleDrive is operating normally (no faults detected).
-
Page 8: Operation
Operation 4-20mA Control Input Starting or running the pump with the discharge valve closed may result To maintain protection of internal drive controller, your external resistor in overpressure in the discharge pipe. should be fi tted with appropriate protection. CAUTION Extended periods of dry running may result in permanent damage to the pump and may cause surface temperature to exceed the operating temperature of the pump. -
Page 9: Magnet Decoupling
Manual Control Confi guration Magnet Decoupling To maintain protection of internal drive controller, your external The EagleDrive pump/motor combinations do not decouple. If pump load becomes potentiometer should be fi tted with appropiate protection. excessive, current limiting in the controller prevents motor overload. Additional protection is provided by a thermal sensor which shuts down the drive if the internal temperature CAUTION exceeds a preset value. -
Page 10: Fault Isolation
Fault Isolation Technical Specifi cation If the EagleDrive does not meet its design performance or fails to operate correctly, refer All Dimensions in mm.[inch] to the following tables for assistance in identifying the cause and remedy: NOTE Execution of troubleshooting steps, determination of root cause and Not all possible confi... - Page 11 Model DEELE EagleDrive Pump Confi gurations EAGLEDRIVE DEMSE EAGLEDRIVE DEELE GA Series GB Series GJR Series GJ Series CA Series EagleDrive Model DEELE Product Code DEELE Speed Range 250 to 9000 rpm GJ Series Typical No-Load Speed 5500 rpm (24 VDC Input / 5 VDC Control / 25°C Ambient) Speed @ Rated Torque 3500 rpm @ 140 mNm (20 oz-in)
-
Page 12: Notes
Notes To purchase pumps, parts or receive further information contact your local Micropump distributor or contact Micropump directly. Micropump, Inc. A Unit of IDEX Corporation 1402 NE 136th Avenue Vancouver, WA 98684 USA Tel: +1 (360) 253-2008 Fax: +1 (360) 253-8294 E-mail: info.micropump@idexcorp.com...
