Soundoff Signal ETSS100BKUV-X Installation Instructions

FRAME MOUNT BRACKET (ONLY) FOR THE 100N SERIES SPEAKER
2020 FORD PI UTILITY
ETSS100BKUV-X

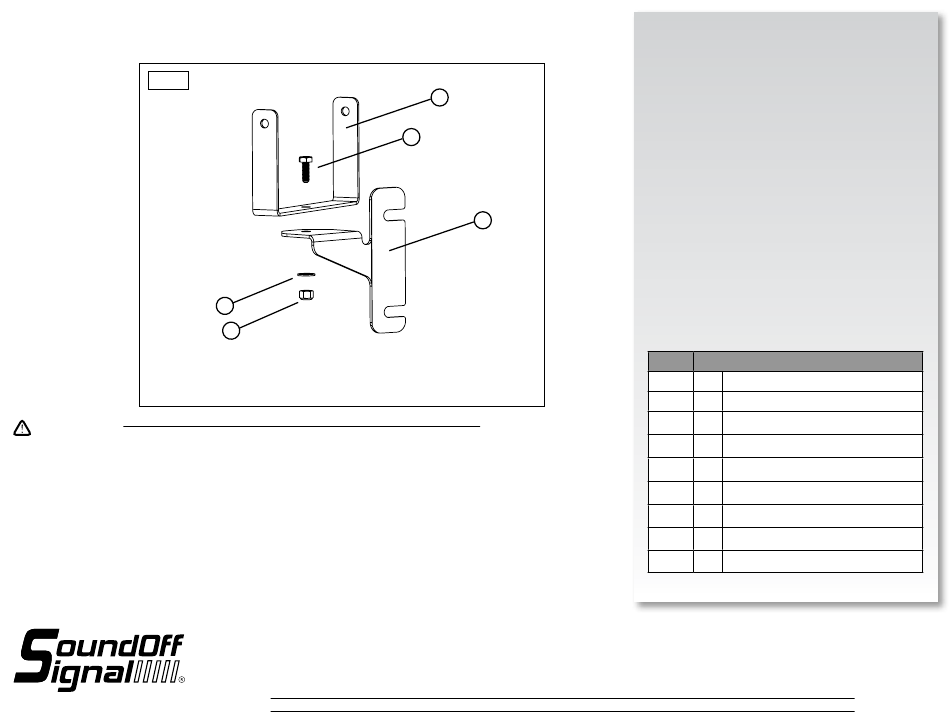

FIG. 1
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and
fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's
Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local
ITEM NO.
chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1 002BR836
2 002BR837
3 002BR785
4 ETSS100N
5 002WF020
6 002SB116
7 002NU002
8 002FWS14
1.800.338.7337 / www.soundoffsignal.com
1
4
5
FRAME MOUNT BRACKET
ETSS100BKUV-D PICTURED
PART NUMBER Description
2020 UTILITY PASSENGER SPEAKER BRKT
2020 UTILITY DRIVER SPEAKER BRKT
F-150 SPEAKER HOLDING BRKT 2018
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
100N SPEAKER ASSEMBLY
18-8 STAINLESS STEEL WASHER M6, 18mm OD,
1.4-1.8 THICK
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com//tech-services/returns/.
1/4-20 X 3/4 IN. HEX HEAD S.S.
HEX NUT-1/4-20 NYLON LOCK STAINLESS
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. ET at 1.800.338.7337 (press #4).
FLATWASHER SS 1/4" (5/8" OD)
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .
2
3
1
1
NOTICE:
1
1
1
Improper use or installation may void warranty coverage.
2
1
1
1

INSTALLATION:

1. Remove the front bumper cover assembly to access the
frame for speaker bracket installation. The assembly
should be removed as one piece and not individually.
Consult a local Ford service center for best disassembly
method. Keep all hardware.
2. Using the included bolt, washer, and lock nut, fasten the
two brackets together, as shown in Fig. 1. Leave the nut
loose enough to allow the upper bracket to pivot. The
driver's side mounting bracket is shown. If a passenger's
side bracket was purchased, the bracket slots should
face in the opposite direction to what is shown in Fig. 1.
NOTE: The Universal Bail Bracket will not be
used for this installation
CONTAINS
ITEM# QTY COMPONENT
1 1 2020 Utility Speaker Bracket
2 1 Speaker Holding Bracket
3 1 1/4-20 x 3/4" Hex Head Bolt
4 1 Flatwasher 1/4'"
5 1 1/4-20 Nylon Lock Hex Nut
6* 2 18-8 Washer M6
1 Installation Instruction Sheet
1 Product Warning Card
*NOTE: 002BR836 IS NOT SHOWN
*Shown on Page 3
REVISION LOG
REV DESCRIPTION INITIALS
2020 UTILITY 100N SPEAKER
1 DH
ASSEMBLY
ETSS100BKUV-(x) 0719
