Soundoff Signal ETSSVBK05 Instruction Manual

100N/100J SERIES SPEAKER BRACKET (NO DRILL) CAPABLE OF HOLDING UP
TO TWO SPEAKERS FOR THE DODGE DURANGO PURSUIT 2018 - 2023, BUM-
6 5
PER MOUNT CENTER
ETSSVBK05
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat build-up and
fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle Owner's
Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal or local
chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at power source.
•Install protective grommets when routing wire through firewall or metal.
1.800.338.7337 / www.soundoffsignal.com
1
4

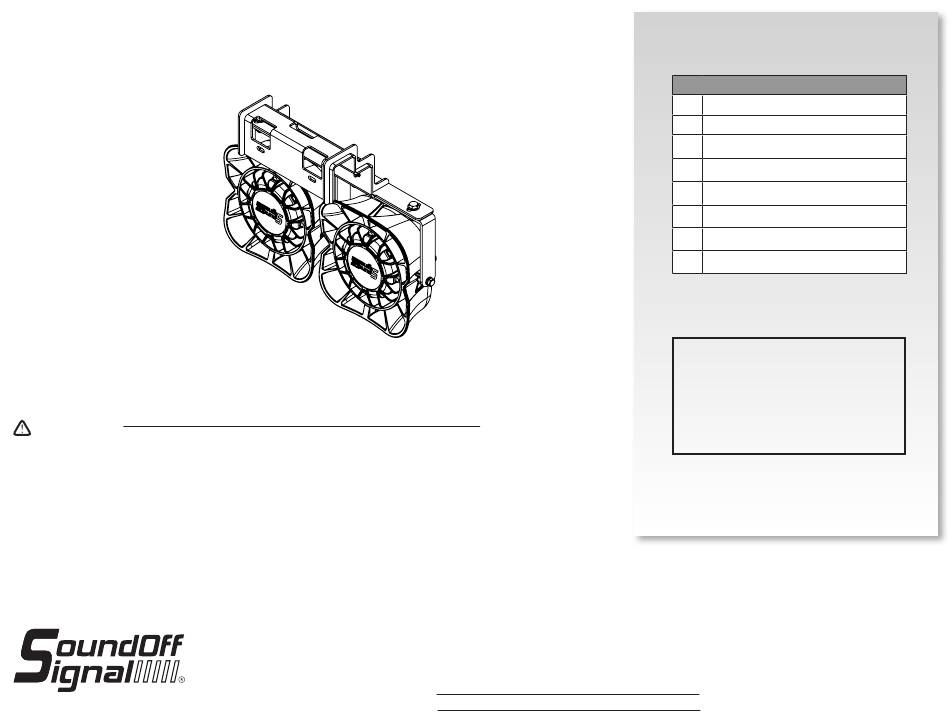

ETSSVBK05 PICTURED WITH ETSS100J SPEAKERS*
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at www.soundoffsignal.com/tech-services/returns/.
If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. ET at 1.800.338.7337 (press #4).
Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
3 2
REVISION LOG
REV DESCRIPTION
DURANGO SPEAKER BRACKET
1
ASSEMBLY DRAWING
NOTE: SPEAKERS AND BAIL BRACKET NOT INCLUDED
NOTICE:
Improper use or installation may void warranty coverage.
TOLERANCES
EXCEPT AS NOTED
.X ± .020
THIRD ANGLE
.XX ± .012
E N H A N C I N G S A F E T Y T H R O U G H I N N O VAT I O N PROJECTION
.XXX ± .006
ANGLES ± .5°
DRAWING
GD&T TO FOLLOW SIZE:
ASME Y14.5M-2009 DO NOT SCALE
MATERIAL:
INTRODUCTION:
1
G
CONTAINS
INITIALS ECN DATE
QTY COMPONENT
AJD 5896
4/20/2020
1 Speaker Bracket
4 1/4" - 20 x 3/4 Bolts
8 1/4" Washers
F
4 1/4"- 20 Nylon Nuts
2 10-32 x 3/4 Bolts
1 Installation Instruction Sheet
1 Product Warning Card
*Speaker and Bail Bracket Sold Separately
E
BRACKET COMPATIBLE
WITH SPEAKERS:
- 100J
- 100N
D
C
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN
THIS DRAWING IS THE SOLE
PROPERTY OF SOUNDOFF SIGNAL.
B
ANY REPRODUCTION IN PART OR
®
AS A WHOLE WITHOUT THE
WRITTEN PERMISSION OF
SOUNDOFF SIGNAL IS PROHIBITED.
CAD DIMENSIONS ARE BASIC
UNLESS OTHERWISE SPECIFIED
B
PRIMARY DIMS: INCH
DUAL DIMS: [mm]
ETSSVBK05 1122 REV B
