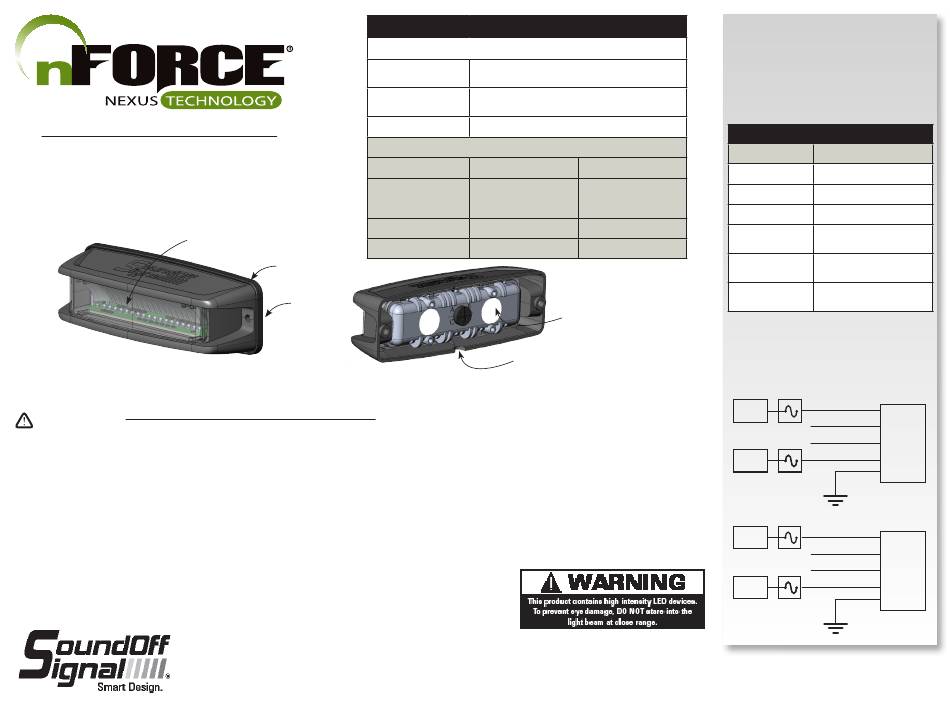

Soundoff Signal nFORCE ENFSSS**-Single Series Installation Instructions Manual

SAE J595 CLASS 1 SURFACE MOUNTS
ENFSSS(XX)- SINGLE
ENFDSS(X)(XX) - DUAL
LIGHT ASSEMBLY
SINGLE MOUNT VERSION - DOUBLE MOUNT
VERSION NOT SHOWN
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner's Manual for deployment zones.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the
1.800.338.7337 / www.soundoffsignal.com
1
12 LED Single Color
GASKET
HOUSING
BACK VIEW OF SINGLE SURFACE MOUNT SHOWN W/O
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsignal.com.
S U P E R I O R C U S TO M E R R E L AT I O N S H I P S . S M A RT LY D E S I G N E D L I G H T I N G & E L E C T R O N I C S O L U T I O N S .

TECHNICAL SPECIFICATIONS

SURFACE MOUNT nFORCE
Single Mount
5.0"L x 1.72"H x 1.50"D
Dimensions:
Double Mount
5.0"L x 3.13"H x 1.50"D
Dimensions:
Input Voltage: 10 - 16 Vdc or 10 - 30 Vdc*
CURRENT CONSUMPTION
10-16 Vdc
6 LED Single
12 LED Dual & <1.0A @12.8 Vdc
18 LED Tri-Color
9 LED Single Color <1.5A @ 12.8 Vdc
<2.0A @12.8 Vdc
DO NOT DAMAGE, BLOCK OR
TOUCH THE BREATHER PATCHES
MAKE SURE DRAIN
HOLE IS FACING DOWN
RUBBER MOUNTING GASKET
- TYPICAL FOR BOTH VERSIONS-
NOTICE:

INSTALLATION:

SURFACE MOUNT
1) Establish a position on the vehicle. Use the
gasket (provided) as a template to drill 1/4"
diameter wire hole and pilot holes for mounting
screws. Note: pilot holes are 4.91" on center.
Caution: Do not stretch gasket as this may
change the required hole spacing.

WIRE HOOK-UP TABLE

WIRE COLOR:
10-30 Vdc *
ORANGE OR RED
<0.6A @ 25.6 Vdc
BLUE OR GREEN**
<0.9A @ 25.6 Vdc
YELLOW OR WHITE
to GROUND
<1.2A @ 25.6 Vdc
YELLOR OR WHITE
* - Special Order
to POWER
RED/WHITE OR
ORANGE/WHITE
** To sync multiple nFORCE lights, connect
the Green and/or Blue wires from each light
* Will NOT work w/ other sync products
such as Ghost, LED3, & Intersector.
5
+Vdc
Set-up/Function
+Vdc +Vdc
5
A FUSE
SINGLE OR DUAL
LIGHT HEAD 1
5
A FUSE
+Vdc
Set-up/Function
+Vdc +Vdc
5
A FUSE
DUAL
LIGHT HEAD 2
FUNCTION:
Power
BLACK Ground
Sync2 *
Wire Function
-See page 4-
Function Wire
Power
together.
A FUSE
RED/WHITE
GREEN
Sync
WHITE
RED
BLACK
ORANGE/WHITE
BLUE
Sync
YELLOW
ORANGE
BLACK
ENFSLXSS 11.14
