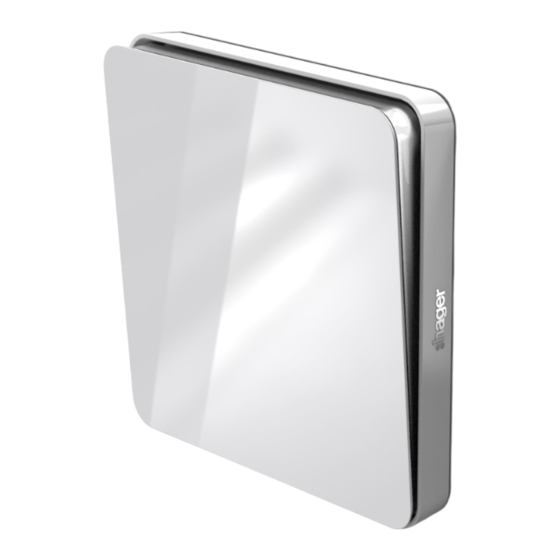

115/230V Shaver socket
Hager Dream
Safety instructions
Electrical equipment must only be installed and assembled by a qualified
electrician in accordance with the relevant installation standards, regulations,
directives and safety and accident prevention directives of the country.
Failure to comply with these installation instructions may result in damage to
the device, fire or other hazards.
Function
The shaver socket is installed in a bathroom of a hotel in order to provide safety power
to an electric razor.
Correct use
- According to IEC 60670 installation of the safety shaver socket outlet is only per-
mitted in plastic wall box or metal wall box (metal wall box must be connected with
earth directly).
Observe depth of wall box (depth ≧ 51 mm).
- Only suitable for use in indoor areas with no drip and no spray water.
Technical data
Rated voltage:
Frequency:
Output voltage:
Power:
Conductor cross-section of screw terminals:
Distance of fixing holes:
Compliance:
Installation manual
min. 1 x 1.5 mm² ... max. 2 x 4 mm²
250 V~
50/60 Hz
115 V~/230 V~
max. 20 VA
120.6 mm
BS EN 61558
