DEVICES COVERED IN THIS DOCUMENT:
2-659-0332
2-659-0333
1. DESCRIPTION

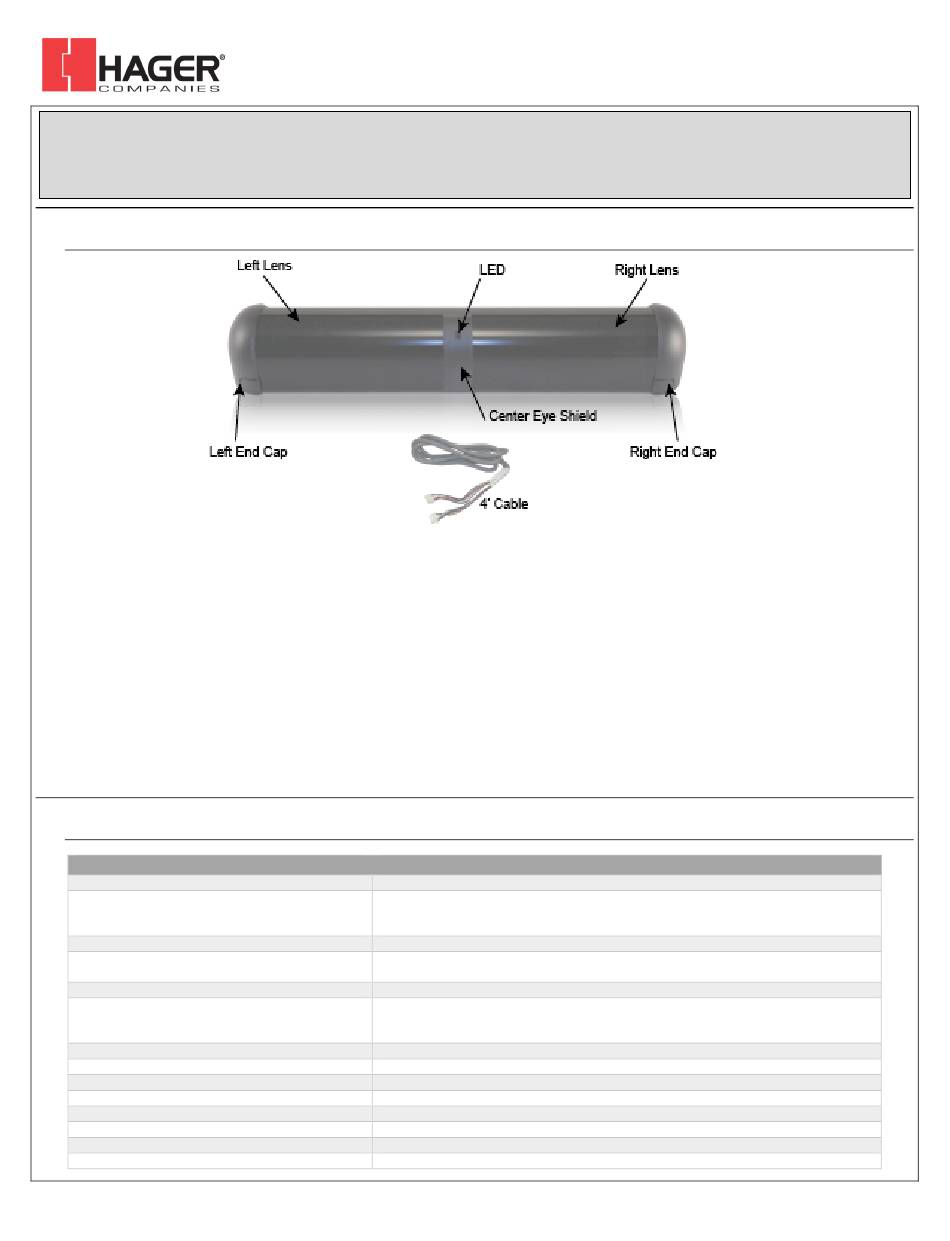

The Hager Bodyguard-T (10BODYGUARDT) are self-monitored ready, overhead-mounted, diffused active infrared sensing devices that provide detection
for triggering automatic, swing-door safety functions. These sensors are designed for use with all of Hager's LO21 modules. When used with Hager's
lockout devices, these sensors are programmed to allow two different fields of detection – one for detection when the door is in the fully-closed position
and the other for detection when the door is fully open. While the door is in the fully-open position, the Bodyguard-T extends its coverage back through
the threshold area of the doorway, to provide coverage that will overlap with Hager's motion sensors.
As with all of Hager's programmable sensing devices, full adjustability is achieved with the use of Hager's hand-held remote control unit. This allows
alteration of all available functions as well as inquiry of existing settings. Should the need arise, the
Bodyguard-T may also be tuned by means of two sensor-mounted buttons contained on the PC board within the unit. With these two buttons, the
Bodyguard-T's field of detection can be altered without the use of the hand-held remote.
If a complete door-mounted sensor (SuperScan) system is not used in addition to the Bodyguard-T, Hager recommends the use of a lockout safety
beam to allow safety signaling if the zone is entered during a door closing cycle.
NOTE: If utilizing monitoring, lockout modules may not be used. If lockout modules must be used, monitoring is not allowed.
NOTE: For BODYGUARD-TC functionality, set Immunity to 3-HIGH.
2. SPECIFICATIONS
DESCRIPTION
Installation Height - Variable
Mounting Angles
Bodyguard-T only
Bodyguard-T with Bodymount
Power Supply
Monitoring Request Input
Frequency
Output
Relay Hold Time
Operating Temperature
Immunity
Cable
Weight
Dimensions
Material
Housing Color
Rev 01, Rev Date: 05/08/2018
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com
2-659-0034
SPECIFICATION
9' 0" max. (recommended 6' 6" – 8' 0")
5°, 10° (factory default setting: 5°)
0°, 5°, 10°
12 – 24 VAC / VDC ±10%
12 – 30 VDC required (polarity-sensitive)
Min. pulse width 10 ms (active low)
50 – 60 Hz
Max. Voltage at contacts: 60 VDC / 125 VAC
Max. Current at contacts: 1 A
Max. switching power: 30 W (DC), 60 VA (AC)
0.5 – 9 seconds
-22 – 140 °F
Immune to electrical and radio frequency interference
4' nine-conductor cable
1 lb 11 oz (765 g)
11.8" (305 mm) x 1.9" (51 mm) x 1.9" (46 mm) (L x H x W)
Aluminum & ABS plastic
Black, anodized aluminum
BODYGUARD-T
Installation Instructions
I-EA00206
Page 1 of 12
Advertisement
Related Manuals for hager BODYGUARD-T
Summary of Contents for hager BODYGUARD-T
- Page 1 – one for detection when the door is in the fully-closed position and the other for detection when the door is fully open. While the door is in the fully-open position, the Bodyguard-T extends its coverage back through the threshold area of the doorway, to provide coverage that will overlap with Hager’s motion sensors.
-
Page 2: Mechanical Installation
PREPARATION To prepare the Bodyguard-T for mounting to the header, perform the following: Remove both endcaps from the Bodyguard-T. Each is attached by one Phillips head screw. Remove both lenses from Bodyguard-T by simply sliding them out at each end. - Page 3 Bodyguard-T is mounted securely at each end. If the Bodyguard-T is mounted directly to door header, and cabling is to pass directly into header, drill a ¼” hole next to the Bodyguard- T’s left side endcap to allow wire passage into header. The wire passage hole should be in a location that aligns with the cut out in the endcap.
-
Page 4: Electrical Installation
Pull the cable completely through and route it to the location of the automatic door control. Refer to the respective User’s Guide for the Hager product with which you are interfacing. Ensure a dedicated power source of 12 or 24 VAC / VDC ± 10% (1024VAC may be used for powering this product). -
Page 5: Mechanical Adjustments
Bodyguard-T is mounted to a Bodymount block or to a soffit above the door that extends out from the face of the safety side of the door. In this case, the 0º setting would improve the location of the detection field across the threshold area of the doorway. It is recommended that for most applications, the unit be powered and walk-tested at the pre-set 5º... - Page 6 Once mechanical and electrical installation is complete, apply 12 – 24 VAC / VDC ± 10% to the Bodyguard-T, with the door in the closed position. The Bodyguard-T will flash a green LED at a rate of 2 Hz, and then it will expire upon a successful set-up in the door-closed position.
-
Page 7: Universal Remote Control
10. UNIVERSAL REMOTE CONTROL The Bodyguard-T is fully compatible with Hager’s remote control as shown below. Use of the remote control should be conducted within 10 – 15’ of the sensor, and the remote should be pointed directly at the sensor when used. Refer to the PROGRAMMING GUIDE section for each parameter and its values. - Page 8 The NORMAL mode is recommended for installations with only one door. Rev 01, Rev Date: 05/08/2018 Page 8 of 12 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
- Page 9 PATTERN WIDTH OR DEPTH: When pattern width or depth is changed, a set-up of the new pattern size will automatically be triggered once a value key has been pressed. Rev 01, Rev Date: 05/08/2018 Page 9 of 12 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
- Page 10 I-EA00206 11. MANUAL SET-UP (without remote control) Without the Hager remote control, the Bodyguard-T may be set up using the manual push buttons (see diagram below) located under the right endcap. ONLY SENSITIVITY, RELAY MODE, AUTO-LEARN TIME, PATTERN WIDTH, AND PATTERN DEPTH MAY BE ADJUSTED WITH THE MANUAL PUSH BUTTONS.
- Page 11 BODYGUARD-T Installation Instructions I-EA00206 12. PATTERNS WIDTH DEPTH Rev 01, Rev Date: 05/08/2018 Page 11 of 12 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
- Page 12 – examples of these safety inspections can be found on an AAADM safety information label (e.g. ANSI/DASMA 102, ANSI/DASMA 107, UL 325). Verify that all appropriate industry signage and warning labels are in place. Rev 01, Rev Date: 05/08/2018 Page 12 of 12 Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
