SPI 40G03 Operation Manual

Technical Specifications
• Resolution: Inch: .0005"/.00005",Metric: 0.01mm/0.001mm
• Power: One silver oxide battery CR2032, 3V
• Working temperature: 0~ +40 ℃
• Protection class
IP65.
• Relative humidity: <80%
• Storage temperature: -10℃~ +60℃
• Contact point: carbide ball (#4-48UNF).
Operation
Zero Setting
➢
•
When in ABS mode, press Zero/On.
•
The displayed value will change to zero unless a preset value
has been established.
➢ Absolute and Incremental Modes
• Absolute Mode: The absolute mode indicates that the
measurement is to the zero that has been previously set.
IP65 DIGITAL INDICATORS

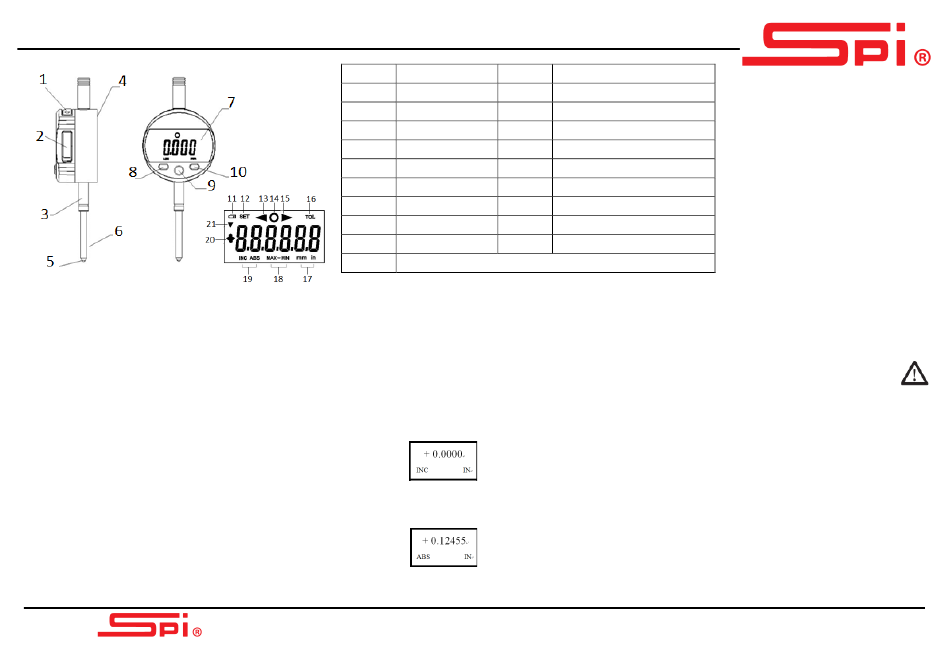

1 Battery holder 12
2 Data output Port 13
3 Stem 14
4 Flat back 15
5 Contact point 16
6 Spindle 17
7 LCD 18
8 Mode Button 19
9 SET Button 20
10 ZERO/ON/OFF 21
11 Low battery icon
• Incremental Mode: The incremental mode is provided as a
temporary zero at any point within the measuring range. The
Absolute zero previously set will be restored when the mode is
returned to absolute.
• Switching between ABS and INC Modes
Short press the [SET] button to change the display to "INC"
(Incremental Mode). The reading will change to zero.
• Short press the [SET] button again to return to "ABS" (Absolute
Mode). The reading will be returned to the original value.
SET mode icon
Out of lower tolerance icon
Within tolerance icon
Out of upper tolerance icon
TOL mode icon
mm/INCH icon
MAX /MIN mode icon
ABS/INC icon
Plus/Minus icon
Measuring direction icon
IP65 DIGITAL INDICATORS
OPERATION MANUAL
SPI 40G03
