SPI 20-186-3 Operation Manual

Compatible with
20-189-7

DIGITAL HEIGHT GAGES

Absolute Encoder Technology
• Large LCD display.
• Inch / Metric conversion at any position.
• Heavy duty hardened stainless steel beam.
• Data cable to connect indicators to height gages
included.
• SPC/USB data output.
• Zero setting at any position.
• Resolution 0.0005"/0.01 mm
• Manual On/Off power.
• Carbide tipped scriber.
• Indicator bar for travel indicator included.
• Smooth slider feed wheel.
• Battery CR2032 included.
• Furnished in fitted case.

Connect with Absolute Digital Indicator Probes

• Connecting an SPI Digital Indicator Probe to
the height gage will increase the resolution
of the height gage to 0.00005".
• Origins are set to height gage and indicator
simultaneously.
• Height gage can not be moved up or down after ori-
gins have been set.
RANGE ACCURACY
0 - 12"/0 - 300 mm ±0.001"/±0.01 mm
0 - 18"/0 - 450 mm ±0.002"/±0.05 mm
0 - 24"/0 - 600 mm ±0.0025"/±0.06 mm
11-959-4
PART NO.
11-959-4
11-960-2
© 2017 Swiss Precision Instruments, Inc.
11-961-0

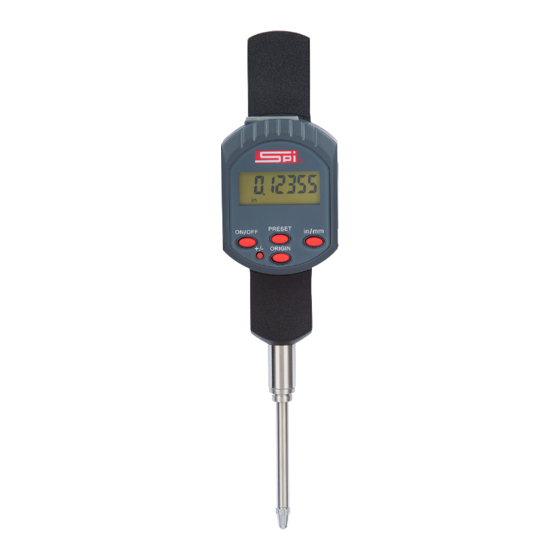

IP54 Absolute Digital
Indicator Probes
(Inch/Metric)
Operation Manual
0 - .5" 20-186-3
0 - 1" 20-187-1
0 - 2" 20-188-9
0 - 4" 20-189-7
