Battery Installation:
Button:
A short press of the
button will turn on or off
the caliper. Please note that the caliper will
automatically shut off after 5 minutes of non-use.
Zero Setting:
Close the jaws and
ensure that the zero
position is set after
battery installation
by pressing the
[0] button.
IN/MM/F Button:
Shortly press the button to switch between Inch,
Metric (mm) and Inch Fraction reading.
Calibration:
It is recommended that this precision measuring
tool be calibrated at a periodic interval as follows:
• Annually
• At an interval that ensures that the accuracy is
not compromised between calibrations intervals
• As outlined in your company's quality manual
© 2016 Swiss Precision Instruments, Inc.

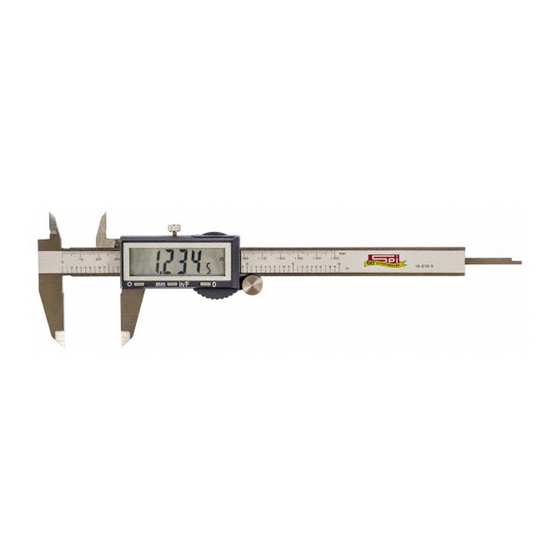

Digital Caliper
(Inch/Metric/Fraction)
Operation Manual
0 - 6"
18-010-9
0 - 8"
19-009-0
0 - 12"
19-008-2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SPI 18-010-9
Summary of Contents for SPI 18-010-9
- Page 1 Battery Installation: Digital Caliper (Inch/Metric/Fraction) Operation Manual 0 - 6" 18-010-9 0 - 8" 19-009-0 Button: 0 - 12" 19-008-2 A short press of the button will turn on or off the caliper. Please note that the caliper will automatically shut off after 5 minutes of non-use.
-
Page 2: Specifications
Methods of Measurement: External (outside) work piece feature: Depth work piece feature: Use the thumb wheel (9) to move the slider (2) until Place the end of the beam the external measuring jaws (7) make contact with (1) on the outermost side the work piece feature.
