Instruction Manual
Battery Charger
Part No. 117427, Single Bay Charger, Series B, North America (N.A.)
Part No. 120110, Single Bay Charger, Series B, Australia
Part No. 117429, Four Bay Charger, Series B, N.A.
Part No. 120107, Four Bay Charger, Series B, Australia
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
CAUTION
The Graco Matrix Battery Charger must only be used
with the Matrix Fluid Management System. The Graco
warranty is void if the battery charger or batteries are
used with a non-Graco product.
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2003, Graco Inc. is registered to I.S. EN ISO 9001
309502 rev.F
Part No. 117429, N.A.
(120107, Australia)

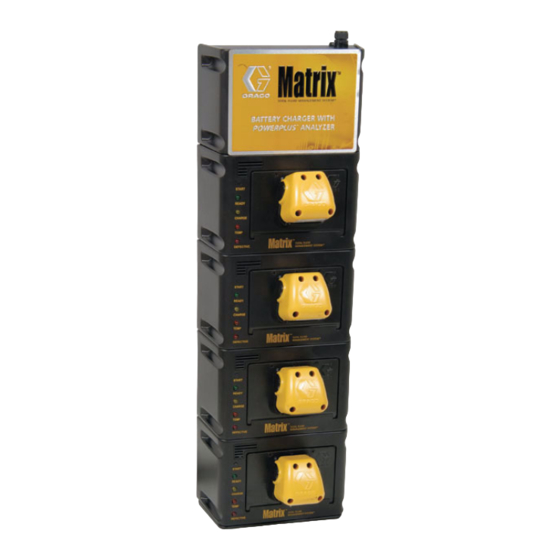

Four Bay Charger
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco Matrix B Series
Summary of Contents for Graco Matrix B Series
- Page 1 Part No. 117429, N.A. (120107, Australia) Four Bay Charger Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 Copyright 2003, Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
Charging Batteries ......4 Graco Phone Numbers ..... . . 10 Recharging “In-Use”... -
Page 3: Warnings
Check equipment daily. Repair or replace worn or damaged parts immediately. • Do not alter or modify equipment. • Use equipment only for its intended purpose. Call your Graco distributor for information. • Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces. •... -
Page 4: Installation
“Charge” light begins to flash. This is a trickle explosion if mishandled. Read BATTERY SAFETY, charge (24 hours). page 3. WARNING To reduce the risk of electric shock, only use Graco batteries with the Graco charger. Do not insert a for- eign object into the adapter cup. 309502F... -
Page 5: Diagnostics
Diagnostics Diagnostics Appearance Description No lights Check the battery charger fuse. Verify that the battery and charger contacts are clean and in good shape. Attempt the Recharging a “Dead” Battery on page 4. If after 4 - 5 attempts this process does not work, the battery is spent and cannot be recharged. -
Page 6: Parts
Parts Parts Part No. 117427 N.A, 120110 Australia Single Charger Part No. 117429 N.A., 120107 Australia Multiple Charger Part No. 117310 Battery (sold separately) Part No. 117427 Single Charger CAUTION Includes: Do not use transformer 117430 N.A., 120107 Austra- lia (for the single-adapter cup charger) to power trans- Ref. -
Page 7: Technical Data
Technical Data Technical Data Weights Single Bay Charger 2.12 lbs (0.96 kg) Four Bay Charger 6.63 lbs (4.38 kg) Battery 0.64 lbs (0.29 kg) Battery Voltage 9.6 VDC, NiMH only Charge Type fast charge with pulse conditioning Charging Time 1- 2 hours based on battery state of charge Power Source (four-bay charger) 120 VAC (N.A.), 240 VAC (Australia) Power Source (single-bay charger) -
Page 8: Dimensions
Dimensions Dimensions Part No. 117429 N.A., 120107 Australia Part No. 117427 N.A., 120110 Australia Multiple Charger Single Charger 21.56 in. 54.76 cm 3.0 in. 7.62 cm 7.0 in. 4.56 in. 17.78 cm 11.58 cm 7.0 in. 17.78 cm 4.56 in. 2-13/16 in. - Page 9 Dimensions 309502F...
-
Page 10: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twenty-four months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
