Page 2
The Regulation also does not apply to installations in vehicles, offshore or outdoors. Many of Frico's products can be used as both local space heaters (as defined in (EU) 2015/1188) and for technical heating purposes. It is up to the installer responsible for the installation to assess whether the Ecodesign Regulation is applicable or not.
Page 3
Inoltre, il Regolamento non si applica alle installazioni all'interno di veicoli, offshore o all'aperto. Molti dei prodotti Frico possono essere utilizzati come batterie di riscaldamento locali per gli ambienti (come definito nel regolamento (UE) 2015/1188) e a scopo di riscaldamento tecnico. È responsabilità...

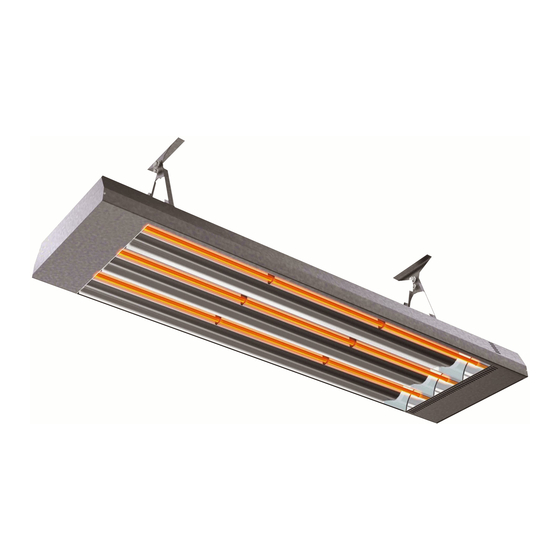

IR3000, IR4500, IR6000 Type [mm] [mm] IR3000 1125 IR4500 1500 IR6000 1200 1875 Minimum distances min 400 min 400 [mm] min 400 Ceiling Wall, long side of the unit Wall, short side of the unit Flammable material Floor 2300...
Page 5
IR3000, IR4500, IR6000 Accessories Type HxWxD [mm] IRG3000 869x362x40 IRG4500 1235x362x40 IRG6000 1615x362x40 Controls Type HxWxD [mm] TAP16R 87x87x53 TEP44 87x87x55 155x87x43 TAP16R TEP44 RB123 RB123 155x87x43 RTX54 82x88x25 SKG30 115x85x40 PDK65 102x70x50 RTX54 SKG30 PDK65 Controls for installations not covered by the Ecodesign Regulation (EU) 2015/1188...
IR3000, IR4500, IR6000 Technical specifications Type Output Voltage Amperage Max. element Dimensions Weight steps temperature LxHxW [kW] [°C] [mm] [kg] IR3000 1/2/3 400V3N~* 1125x83x358 IR4500 1.5/3/4.5 400V3N~* 1500x83x358 11.1 IR6000 2/4/6 400V3N~* 1875x83x358 13.2 *) Can also be connected 400V3~, but then without output steps. With neutral, one element tube at a time can be connected.
IR3000, IR4500, IR6000 Wiring diagrams Internal wiring diagram IR3000, 4500, 6000 400V3~ Control by thermostat and relaybox 400V3N TAP16R °C TAP16R 230V L3 L2 L1 L3 L2 L1 L3 L2 L1 L3 L2 L1 IR3000 / 6000...
Page 8
IR3000, IR4500, IR6000 Control by thermostat, relaybox and black bulb sensor 400V3N TAP16R / SKG30 °C TAP16R 230V SKG30 L3 L2 L1 L3 L2 L1 L3 L2 L1 L3 L2 L1 IR3000 / 6000...
Page 9
IR3000, IR4500, IR6000 Control by relaybox with 3 step output control and presence detector 400V3N TAP16R / SKG30 230V N N L PDK65 RB123 L3 L2 L1 L3 L2 L1 L3 L2 L1 L3 L2 L1 IR3000 / 6000 Control by thermostat, contactor and switch - for installations not covered by the...
Page 10
IR3000, IR4500, IR6000 Instrukcja montażu i obsługi Zalecenia ogólne Sterowanie Przed rozpoczęciem montażu i eksploatacji Używając tego produktu jako miejscowego należy uważnie przeczytać niniejszą instrukcję ogrzewacza pomieszczeń, zgodnie obsługi. Instrukcję należy zatrzymać do z Rozporządzeniem (UE) 2015/1188 dotyczącym przyszłych konsultacji.
Page 11
IR3000, IR4500, IR6000 Konserwacja Opakowanie Na czas serwisowania, naprawy lub konserwacji Materiały opakowaniowe zostały wybrane należy odłączyć zasilanie urządzenia. Zaczekaj, mając na uwadze ochronę środowiska aż urządzenie ostygnie. Urządzenie nie i podlegają recyklingowi. zawiera ruchomych części, w związku z czym jego konserwacja jest ograniczona.
Page 12
IR3000, IR4500, IR6000 • Dzieci w wieku od 3 do 8 lat mogą wyłącznie włączać lub wyłączać urządzenie, pod warunkiem, że znajduje się ono lub jest zainstalowane w jego normalnej pozycji roboczej oraz, że są one nadzorowane i zostały pouczone na temat bezpiecznego użytkowania urządzenia i związanych z tym zagrożeń.
Page 13
Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net...
