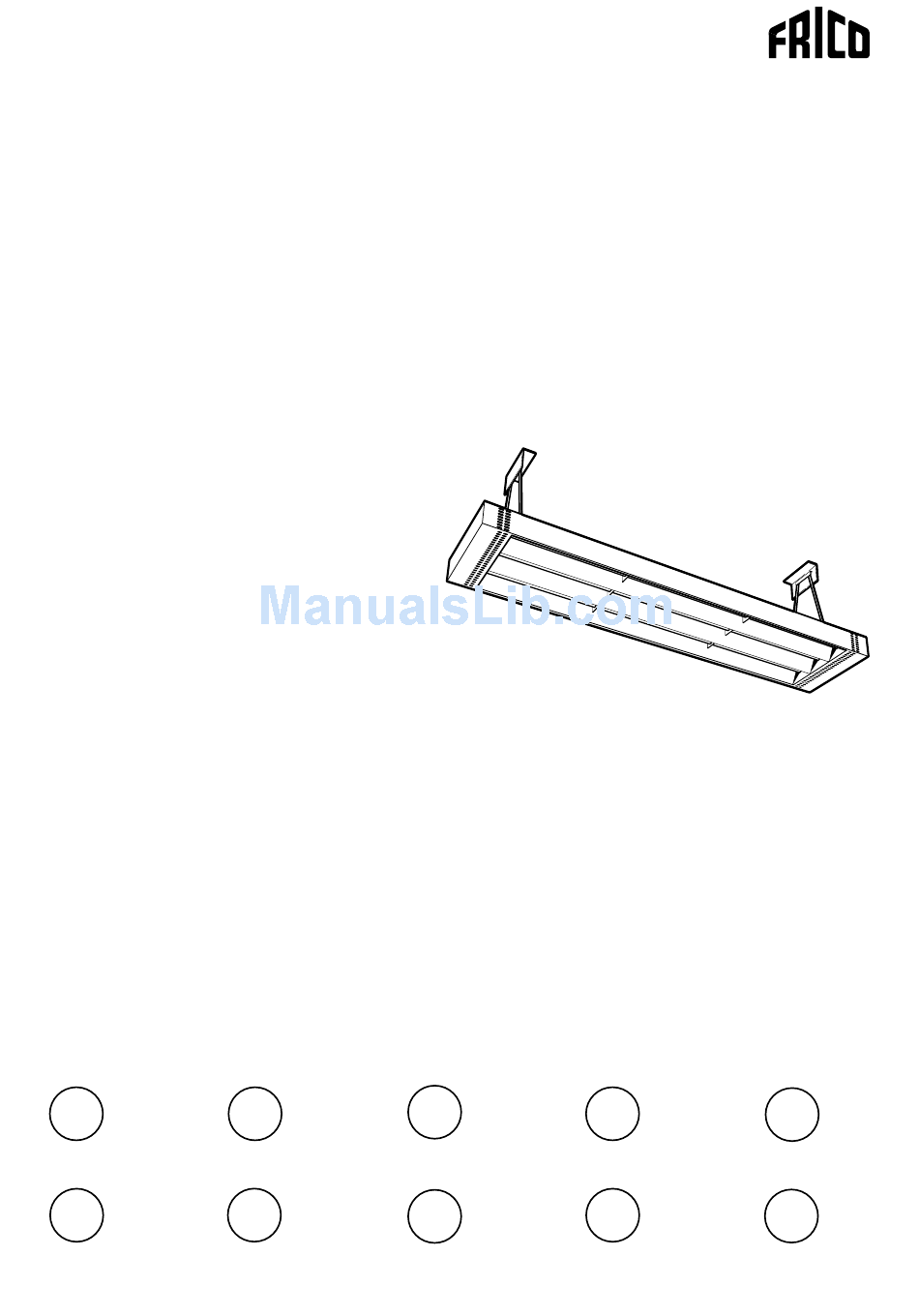

  • Page 1 Original instructions IR3000, IR4500, IR6000 ..8 ..11 ..13 ..15 ..9 ..17 ..19 ..21 ..22 ..24...
  • Page 2 IR3000, IR4500, IR6000 Type [mm] [mm] IR3000 1125 IR4500 1500 IR6000 1200 1875 Minimum distance [mm] Ceiling Wall, long side of the unit Wall, short side of the unit Flammable material Floor 2300...
  • Page 3 IR3000, IR4500, IR6000 min 400...
  • Page 4 IR3000, IR4500, IR6000 Accessories IRG, Protection grille Type E-nr EL-nr HxWxD (SE) (NO) [mm] IRG3000 85 704 10 54 325 16 869x362x40 85 704 11 54 325 17 1235x362x40 IRG4500 IRG6000 85 704 12 54 325 18 1615x362x40 Controls RO OM...

  • Page 5: Internal Wiring Diagram

    IR3000, IR4500, IR6000 Wiring diagrams IR Internal wiring diagram IR3000, 4500, 6000 400V3~ Control by thermostat, contactor and switch 230V~ Thermostat 400V3N~ S123...
  • Page 6 IR3000, IR4500, IR6000 Control by timer 1 2 3 230V~ 400V3N~...

  • Page 7: Technical Specifications

    IR3000, IR4500, IR6000 Technical specifications |  3 Industrial infrared heater IR Type Output stages Voltage Amperage Max. element Dimensions Weight temperature LxHxW [kW] [°C] [mm] [kg] IR3000 1/2/3 400V3N~* 1125x83x358 IR4500 1.5/3/4.5 400V3N~* 1500x83x358 11.1 IR6000 2/4/6 400V3N~* 1875x83x358 13.2 *¹) Can also be connected 400V3~, but then without output stages.
  • Page 8 IR3000, IR4500, IR6000 Monterings- og bruksanvisning Bruksområde Vedlikehold IR er velegnet til totaloppvarming eller som OBS! Ved første gangs bruk, eller ved oppstart tilleggsvarme i lokaler med store, åpne rom og etter lengre tids opphold, kan lettere røyk- og stor takhøyde. Den kan også brukes utendørs, luktutvikling inntreffe.
  • Page 9 IR3000, IR4500, IR6000 Sikkerhet • For alle installasjoner av elektrisk oppvarmede produkter skal det benyttes en 300 mA strømbryter for reststrøm av hensyn til brannsikkerheten. • Apparatet har ved drift varme overflater! • Se til at brennbart materiale ikke finnes samlet, eller direkte under ovnen så...
  • Page 12 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 Fax: +46 31 26 28 25 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
