Summary of Contents for Frico Tatra

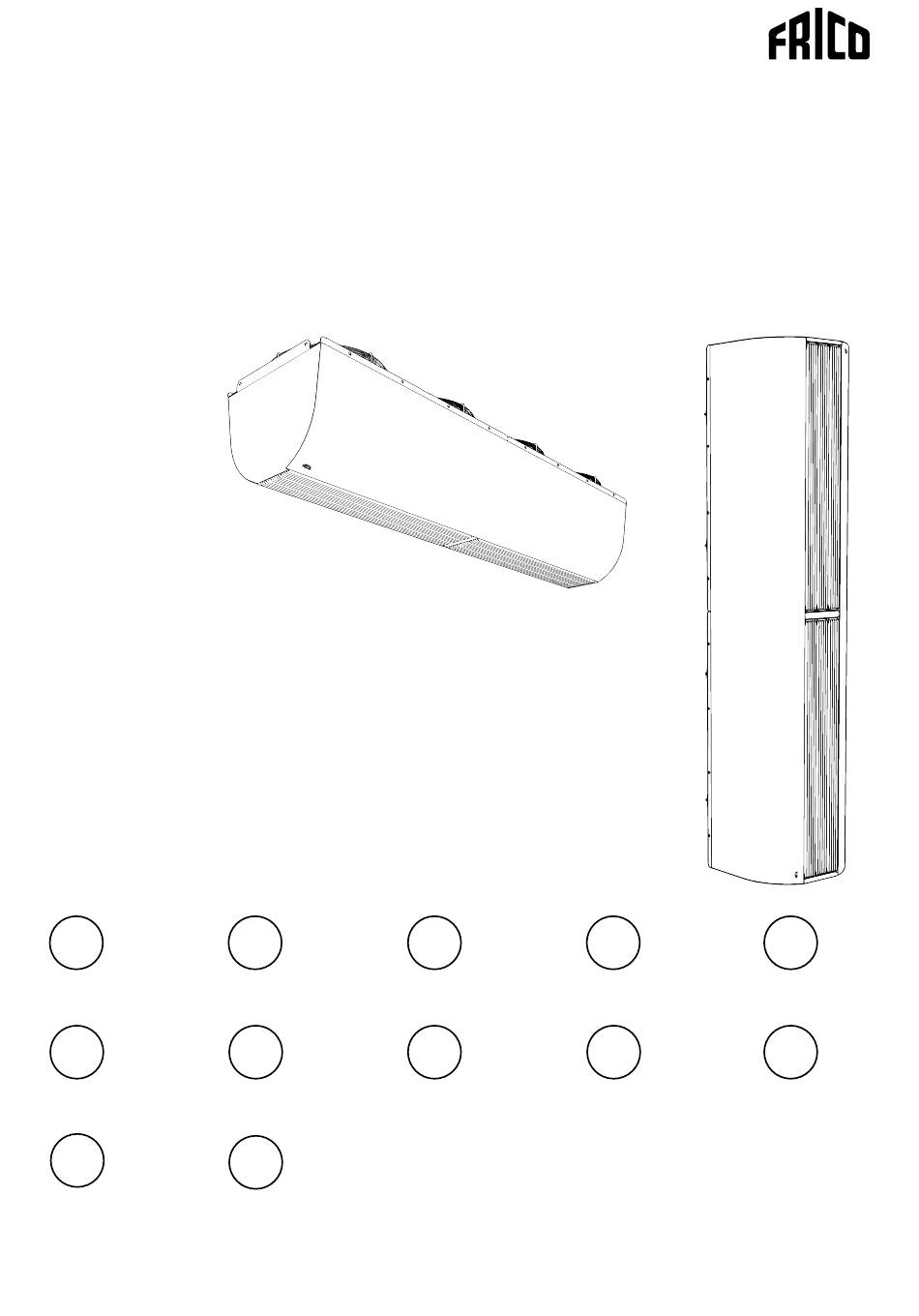

  • Page 1 Original instructions Tatra ..14 ..18 ..22 ..26 ..31 ..36 ..41 ..46 ..51 ..56 ..61 ..66...
  • Page 2 Tatra The introduction pages consist mainly of pictures. For translation of the English texts used, see the respective language pages. Introduktionssidorna består huvudsakligen av bilder. För översättning av de engelska texter som används, se respektive språksidor. Introduksjonssidene består hovedsakelig av bilder. For oversettelse av de engelske tekstene, se de respektive språksidene...
  • Page 3 Tatra Tatra Horizontal mounting 2 DN25 (1"), G1” - DN25 outside thread [mm] TA6017 1650 TA6022 2200 TA6028 2750 Vertical mounting 2 DN25 (1"), outside thread G1” - DN25 [mm] TA6017+TA6FF 1710 TA6022+TA6FF 2260 TA6028+TA6FF 2810 TA6FF - Floor frame...

  • Page 4: Horizontal Mounting

    Tatra Horizontal mounting Minimum distance. Distance appliance brackets [mm] TA6017 1600 TA6022 2150 TA6028 2700 2 x Tatra Ø 7 TA6AB - Appliance brackets Ø 11 Ø 7 Ø 11 Item Type Consists of number 397713 TA6AB 4 x appliance brackets...
  • Page 5 Tatra Horizontal mounting TA6WK - Wall kit 1004 1004 Item Type Consists of number 397712 TA6WK 2 x wall brackets + 4 x appliance brackets + 4 x threaded rods (M10, 1000 mm) + nuts TA6WKE 382975 1 x wall bracket + 2 x appliance brackets + 2 x threaded rods (M10, 1000 mm) + nuts...
  • Page 6 Tatra Horizontal mounting TA6CK - Ceiling kit 1100 1100 1026 Item Type Consists of number 382976 TA6CK 2 x ceiling brackets + 4 x appliance brackets + 4 x threaded rods (M10, 1000 mm) + nuts TA6CKE 382977 1 x ceiling bracket + 2 x appliance brackets + 2 x threaded rods (M10, 1000 mm) + nuts...

  • Page 7: Vertical Mounting

    Tatra Vertical mounting Minimum distance TA6TB - Top bracket Note! The air curtain must be secured in the wall or ceiling. TA6FF - Floor frame Mounting on top of each other Max 6,6 m Joining brackets x2 (included in delivery)
  • Page 8 Tatra Vertical mounting TA6TB - Top bracket max 425 min 112 max 425 min 112 23,5 TA6FF - Floor frame Ø 11 x 6 Ø 11 x 6 Item Type number 280021 TA6FF 382758 TA6TB...

  • Page 9: Open The Unit

    Tatra Open the unit. Water connection 1004 NOTE! Use a pipe wrench or a similar tool to grip the air curtain connections to prevent straining of the pipes. Accessories Item Type Consist of Dimension number 264883 TA6EF 1 pcs Ø480 x 100 mm...

  • Page 10: Control Systems

    Tatra Control systems The air curtain must be supplemented with a control system. FCDA - FC Direct FCSA - FC Smart FCCF FCDC FCBC10 FCLAP FCCF FCDC FCBC05 FCPA - FC Pro FCBA - FC Building FCCF FCDC FCBC10 FCLAP...
  • Page 11 Tatra Technical specifications Tatra Voltage motor: 220-240V~ Ambient, no heat - TA6000 A (IP44) Item Type Output Airflow* Sound Sound Motor Amperage Weight number power* pressure* motor [kW] [dB(A)] [dB(A)] [kg] 247348 TA6017A 3400/9900 4471 247349 TA6022A 5100/13400 45/71 1230...
  • Page 12 Tatra TA6000 A TA6017: 3 motors TA6022: 4 motors TA6028: 5 motors A1 A2 B1 B2 D1 D2 Termination 230V IN BUS 1 BUS 2 Wiring diagrams for control system in the FC manual.
  • Page 13 Tatra TA6000 W TA6017: 3 motors TA6022: 4 motors TA6028: 5 motors A1 A2 B1 B2 D1 D2 Termination E1 E2 - + 230V IN Actuator BUS 1 BUS 2 Wiring diagrams for control system in the FC manual.

  • Page 14: General Instructions

    Read these instructions carefully prior to outlet air grille facing downwards as close to installation and use. Keep this manual for the door as possible. Tatra can be mounted on future reference. the wall or on the ceiling. The product may only be used as set out in the assembly and operating instructions.

  • Page 15: Electrical Installation

    Note that the unit shall be preceded by a 3. Fold the section towards the cable side. regulating valve, see Frico valve kit. NOTE: Be careful to prevent the section from The water coil is connected on the long falling.

  • Page 16: Troubleshooting

    Tatra Replacing the water coil (W) Troubleshooting If the fans are not running or do not perform A horizontally mounted unit must be demounted and placed on a suitable working properly, check the following: level before accessing the water coil. The unit •...
  • Page 17 Tatra shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. • Children of less than 3 years should be kept away unless continuously supervised. • Children aged from 3 years and less than 8...
  • Page 19 Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net...
