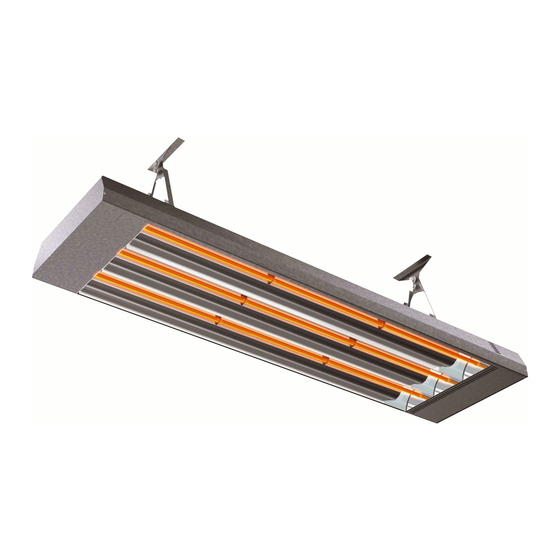

Frico IR3000 Original Instructions Manual
Hide thumbs
Also See for IR3000:
- Original instructions manual (28 pages) ,
- Quick manual (17 pages) ,
- Original instructions manual (13 pages)
Subscribe to Our Youtube Channel
Related Manuals for Frico IR3000
Summary of Contents for Frico IR3000
- Page 1 Original instructions IR3000, IR4500, IR6000 ..10 ..14 ..16 ..19 ..12 ..22 ..25 ..28 ..31 ..33...
- Page 2 The Regulation also does not apply to installations in vehicles, offshore or outdoors. Many of Frico's products can be used as both local space heaters (as defined in (EU) 2015/1188) and for technical heating purposes. It is up to the installer responsible for the installation to assess whether the Ecodesign Regulation is applicable or not.
- Page 3 Inoltre, il Regolamento non si applica alle installazioni all'interno di veicoli, offshore o all'aperto. Molti dei prodotti Frico possono essere utilizzati come batterie di riscaldamento locali per gli ambienti (come definito nel regolamento (UE) 2015/1188) e a scopo di riscaldamento tecnico. È responsabilità...
-
Page 4: Minimum Distances
IR3000, IR4500, IR6000 Type [mm] [mm] IR3000 1125 IR4500 1500 IR6000 1200 1875 Minimum distances min 400 min 400 [mm] min 400 Ceiling Wall, long side of the unit Wall, short side of the unit Flammable material Floor 2300... - Page 5 IR3000, IR4500, IR6000 Accessories Type HxWxD [mm] IRG3000 869x362x40 IRG4500 1235x362x40 IRG6000 1615x362x40 Controls Type HxWxD [mm] TAP16R 87x87x53 TEP44 87x87x55 155x87x43 TAP16R TEP44 RB123 RB123 155x87x43 RTX54 82x88x25 SKG30 115x85x40 PDK65 102x70x50 RTX54 SKG30 PDK65 Controls for installations not covered by the Ecodesign Regulation (EU) 2015/1188...
-
Page 6: Technical Specifications
IR3000, IR4500, IR6000 Technical specifications Type Output Voltage Amperage Max. element Dimensions Weight steps temperature LxHxW [kW] [°C] [mm] [kg] IR3000 1/2/3 400V3N~* 1125x83x358 IR4500 1.5/3/4.5 400V3N~* 1500x83x358 11.1 IR6000 2/4/6 400V3N~* 1875x83x358 13.2 *) Can also be connected 400V3~, but then without output steps. With neutral, one element tube at a time can be connected. -
Page 7: Internal Wiring Diagram
IR3000, IR4500, IR6000 Wiring diagrams Internal wiring diagram IR3000, 4500, 6000 400V3~ Control by thermostat and relaybox 400V3N TAP16R °C TAP16R 230V L3 L2 L1 L3 L2 L1 L3 L2 L1 L3 L2 L1 IR3000 / 6000... - Page 8 IR3000, IR4500, IR6000 Control by thermostat, relaybox and black bulb sensor 400V3N TAP16R / SKG30 °C TAP16R 230V SKG30 L3 L2 L1 L3 L2 L1 L3 L2 L1 L3 L2 L1 IR3000 / 6000...
- Page 9 IR3000, IR4500, IR6000 Control by relaybox with 3 step output control and presence detector 400V3N TAP16R / SKG30 230V N N L PDK65 RB123 L3 L2 L1 L3 L2 L1 L3 L2 L1 L3 L2 L1 IR3000 / 6000 Control by thermostat, contactor and switch - for installations not covered by the...
- Page 10 IR3000, IR4500, IR6000 Installation and operating instructions General Instructions Control Read these instructions carefully prior to When using this product as a local space installation and use. Keep this manual for heater according to Ecodesign Regulation (EU) future reference. 2015/1188, it must be supplemented with one The product may only be used as set out in of the following approved controls.
-
Page 11: Maintenance
IR3000, IR4500, IR6000 Packaging Maintenance Packaging materials are chosen with The power supply to the unit must be consideration to the environment and are disconnected during all service, repair and therefore recyclable. maintenance work. Wait until the unit is cold. The unit has no moving parts so the... - Page 12 Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net...
