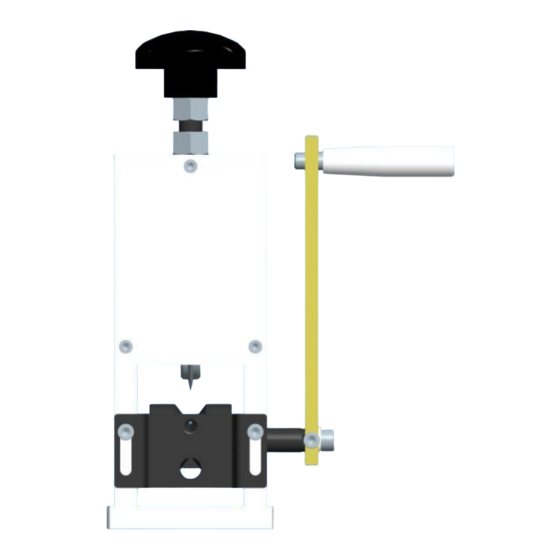

WIRE STRIPPING MACHINE
INSTRUCTION MANUAL
We continue to be committed to providing you with tools at a competitive price. "Save Half",
"Half Price" or any other similar expressions used by us only represent an estimate of
savings you might benefit from buying certain tools with us compared to the major top brands
and do not necessarily mean to cover all categories of tools offered by us. You are kindly
reminded to verify carefully when placing an order with us if you are actually saving half
compared to the top major brands.
Advertisement
Related Manuals for VEVOR SD-25
Summary of Contents for VEVOR SD-25
- Page 1 Support and E-Warranty Certificate https://www.vevor.com/support WIRE STRIPPING MACHINE INSTRUCTION MANUAL We continue to be committed to providing you with tools at a competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
- Page 3 Operation Guide video This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there is any technology or software updates on our product.
- Page 4 - 3 -...
- Page 5 Parts List 1:M14 plastic nut for regulating blade up and down 2:M14 screw rod for regulating blade up and down 3:Handle 4:Incoming panel 5: Nut for locking screw rod 6:Feeding hole 7:10#Screw for connecting drill 8: Stripping rolling gear 9:Blade - 4 -...
- Page 6 Accessories Details： 1、One 4# allen key 2、One 5# allen key 3、One 6# allen key 4、One feeding plate 5、Five D8 gaskets 6、Four M8 nut 7、Four M8*35 screw 8、One M8*16 inner-hexagon screw 9、One 10#screw for connecting the electric drill - 5 -...
- Page 7 Operation Instruction 1.Select the appropriate feeding hole according to the wire diameter. 2. When the diameter of the wires to be treated does not exceed 13mm, select the two hole incoming board. - 6 -...
- Page 8 3. When the diameter of the wires to be treated exceed 13mm, select the one hole incoming board. 4.During wire stripping, the center of the blade must be collinear with the center of the rolling gear (as shown below). - 7 -...
- Page 9 5. Adjust the height of the blade. It is best to make the blade scratch the wire skin without damaging the copper core by rotating the plastic handle screw (clockwise rotation is downward and counterclockwise rotation is upward), as shown below. 6.When stripping, adjust the height of the feeding plate according to the thickness and hardness of the wire (generally, the feeding panel should be adjusted higher for thick and hard wires and lower for soft and thin wires).In...
- Page 10 7. When the diameter of wire to be treated does not exceed 20mm, the two rolling gears need not be separated. When the diameter of the wire to be treated exceeds 20mm, the two rolling gears need to be separated by loosening the two screws in the gears. - 9 -...
- Page 11 8.If the machine cannot strip the wire, there may be several reasons: ①. The diameter of the stripped wire is too small (the diameter of the wire to be treated, including the outer skin, shall not be less than 1.5mm). ②The center of the blade is not on the same line as the center of the rolling gear.
- Page 12 10.When the machine is driven by an electric drill, remove the handle first, then install the connecting screw for the drill(Do not install a gasket when installing the screw), and use the electric drill last. 11.When it is necessary to remove the screw for the drill (as shown in the figure above), install the handle and tighten it with a wrench at first, then hold the handle with one hand and clamp the screw with the drill by the other hand (be sure to start counterclockwise), so that the screw for drill...
- Page 13 NOTE:Never put your hand in when the machine is running (you must stop the machine before checking, debugging, and troubleshooting the machine). To avoid cutting your hand, do not touch the blade directly with your hand. - 12 -...
- Page 14 - 13 -...
- Page 15 Manufacturer： Taizhou Senduo Environmental Protection Equipment Technology Co., Ltd. Address： Workshop B14, Xiaowufen Industrial zone, Luqiao Town, Taizhou City,Zhejiang,China Importer: WAITCHX Address: 250 bis boulevard Saint-Germain 75007 Paris Importer: FREE MOOD LTD Address: 2 Holywell Lane, London, England, EC2A 3ET EUREP UK LTD UNIT 2264, 100 OCK STREET, ABINGDON OXFORDSHIRE ENGLAND OX14 5DH...
