Indicator And Ports - CFE -10H User Manual

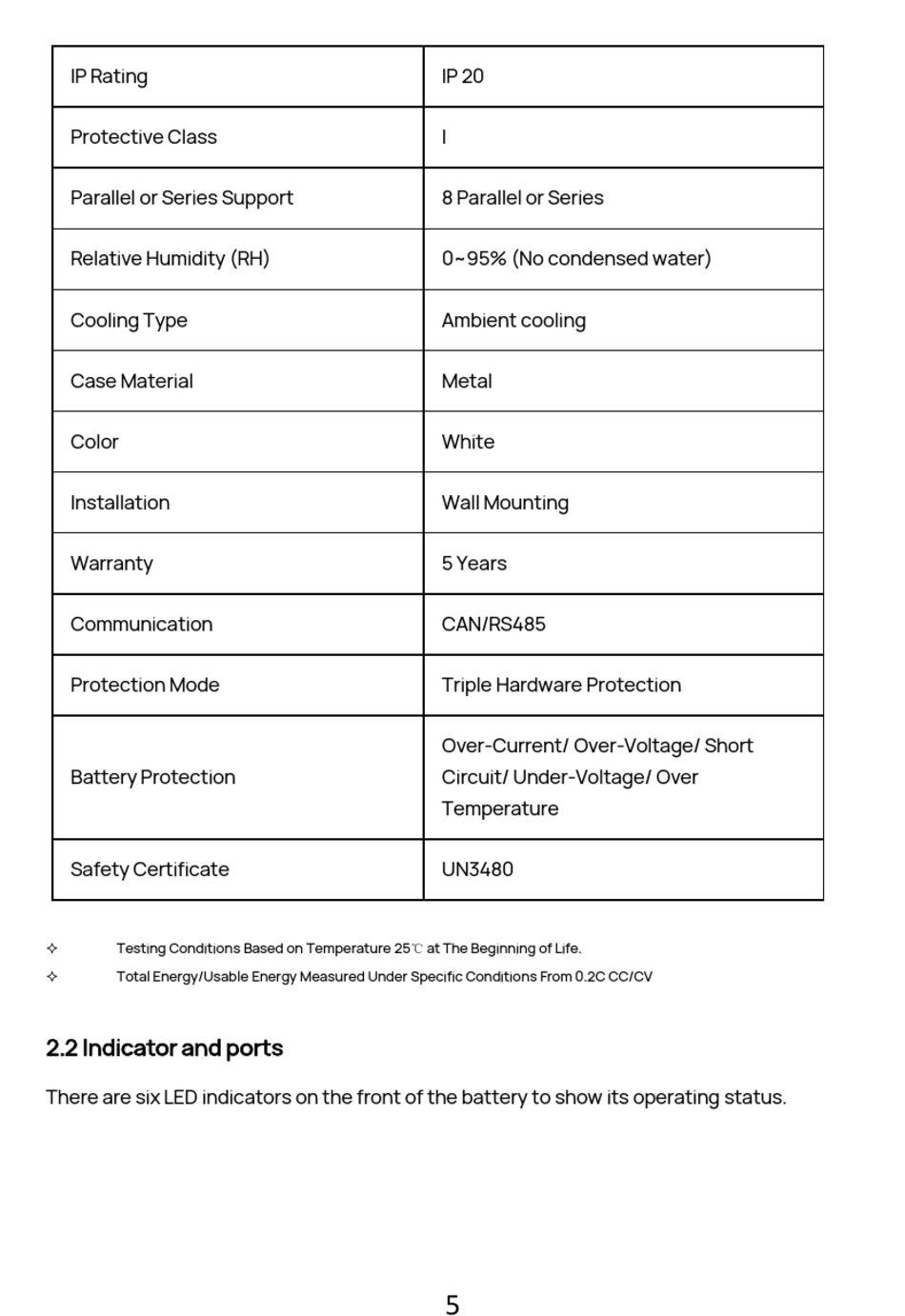

IP Rating
Protective Class
Parallel or Series Support
Relative Humidity (RH)
Cooling Type
Case Material
Color
Installation
Warranty
Communication
Protection Mode
Battery Protection
Safety Certificate
Testing Conditions Based on Temperature 25℃ at The Beginning of Life.

Total Energy/Usable Energy Measured Under Specific Conditions From 0.2C CC/CV


2.2 Indicator and ports

There are six LED indicators on the front of the battery to show its operating status.
IP 20
I
8 Parallel or Series
0~95% (No condensed water)
Ambient cooling
Metal
White
Wall Mounting
5 Years
CAN/RS485
Triple Hardware Protection
Over-Current/ Over-Voltage/ Short
Circuit/ Under-Voltage/ Over
Temperature
UN3480
5
