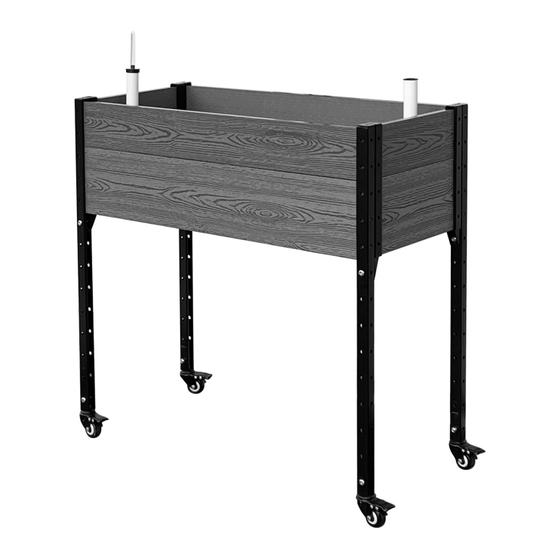

Self-Watering Mobile Elevated Garden

Installation Guide

Thank You!

You're only a few steps away from your perfect vegetable

garden or elevated planter. We hope you enjoy!

Before You Start

Please read the instructions carefully to familiarize

yourself with every detail and step involved. Keep this

manual for future reference. Find a suitable space to

assemble your new Elevated Garden Bed.

You need at least 37" x 19" (94 x 49 cm) for the finished

product. A flat and firm area (like a garage floor or flat

yard space) is perfect! The only tools you may need are

a rubber mallet and a scissor.

Important Notes

Small parts are included; we advise you to keep

them away from children and pets.

We also suggest having another person help you

assemble. Maximum Load capacity: approximately

3.2 cu. ft. of soil

Subscribe at www.everbloom-garden.com

for extra savings and upgrading information!

Everbloom-Garden.com

Questions or Comments?

Email us at service@everbloom-garden.com

Model# S333618W/B/G

Dimensions 36" L x 18" W x 36" H

*Model# S333618W: brown

*Model# S333618WB: blue

*Model# S333618WG: grey

Need help?

Do you have a question about the S333618W and is the answer not in the manual?

Questions and answers

Summary of Contents for Everbloom S333618W

Page 1 We also suggest having another person help you assemble. Maximum Load capacity: approximately 3.2 cu. ft. of soil Subscribe at www.everbloom-garden.com *Model# S333618W: brown for extra savings and upgrading information! *Model# S333618WB: blue *Model# S333618WG: grey Everbloom-Garden.com Questions or Comments? Email us at service@everbloom-garden.com...
Page 2: Parts List
Parts List 1 Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Left Corner Right Corner Long Long Support Short Short Post Post Board Board Board A Board B 380mm 380mm Bottom Bottom 900mm 900mm Post Cap Caster Wheel Bolt Nut Driver...
Page 3 Parts List 2 Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Reservoir Reservoir Black Silicone Top Cover Bottom Tray with Connecting Tube End Caps + 1pc replacement Fill Tube Water Level Water Level Fill Tube Black Indicator Indicator Cap...
Page 4 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Two depths are available by changing the position of reservoir, as shown in Image 1. You can choose according to different needs first. IMAGE 1 Depth 7.25”, 9.75” Long Board 7.25”...
Page 5 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H For planting depths of 7.25”, please follow steps below. For planting depths of 9.75”, the assembly method is similar, just pay attention to the position of reservoir, please refer to page 4. Start by making sure each corner post is oriented correctly, as shown in Image 2.
Page 6 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Slide another short board A into the other two corner brackets from above, as shown in Image 4. IMAGE 4 Right Corner Post Left Corner Post Short Short Board A...
Page 7 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H With the help of another person holding the 2 assembled parts, slide the 2 long supporting boards into the brackets from above. Make sure that one support board goes straight to the bottom, while the other one stays in the middle of the way (don’t push to the bottom), with the top edge between the 1st and 2nd holes of the post, as shown in Image 5.
Page 8 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Take off the 4 end caps from reservoir bottom trays, as shown in Image 6. Flip over the bottom trays, and connect them with black silicone connecting tube tightly, as shown in Image 7. take off IMAGE 6 End Cap...
Page 9 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Flip over the connected bottom trays and put them on lower slots of long support boards. Make sure the 2 ends of these bottom trays go into the lower slots and rest in them with enough contact as shown in Image 8.
Page 10 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Punch down the perforated round pannel on the top covers on both sides, as shown in Image 9. Then, put the top covers on the bottom trays, as shown in Image 10. Note: Use a utility knife to cut off the perforated round pannel if it’s hard to punch down.
Page 11 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Push down the higher long support board to the bottom, as shown in Image 11. IMAGE 11 IMAGE 9 Long Support Board Long Support Board...
Page 12 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Slide the remaining boards into place, as shown in Image 12. Note: If you want to add trellis kit onto this bed, please assemble the extension connectors before this step, to avoid disassembling the boards later.
Page 13 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Carefully flip over the planter so that it lays flat with the long support boards pointing towards the sky. Insert caster wheels into corner brackets, as shown in Image 13and Image 14. IMAGE 14 IMAGE 13...
Page 14 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Fix the wheels with bollts and nuts, as shown in Image 15. IMAGE 15...
Page 15 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Fasten bolts and nuts with nut driver and hex key which are included in pack , as shown in Image 16. IMAGE 16 nut driver Hex key...
Page 16 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Flip over the planter again so it stands upright, as shown in Image 17. IMAGE 17...
Page 17 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Seal the small gaps between reservoirs and the gaps between reservoir and short boards with black tape, as shown in Image 18. IMAGE 18...
Page 18 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Insert two fill tubes to the bottom through the holes near corners, as shown in Image 19. Please pay attention to the direction of the fill tube, make sure the ends with small holes go into the reservoir. IMAGE 19 Bottom...
Page 19 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Insert water level indicator into the cap, as shown in Image 20. Then, put them into the fill tube, as shown in Image 21. Put the fill tube lid onto another fill tube. When you fill water, just remove the lid. Please do not misplace the lid after watering.
Page 20 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 4 end caps, as shown in Image 22. IMAGE 22 Rubber Mallet...
Page 21 Assembly Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Now you get an EverBloom Self-Watering Mobile Elevated Garden with desired planting depth, as shown in Image 23. Then, enjoy your gardening time! IMAGE 23 5 19...
Page 22 Note Self-Watering Mobile Elevated Garden - 36" L x 18" W x 36" H Sometimes there might be a misalignment of the Corner Posts as shown in Image 24 and Image 25, which may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that they are parallel to each other, and perpendicular to the ground.
Page 23 Bloom On. Everbloom-Garden.com US Patent Pending Subscribe at www.everbloom-garden.com for extra savings and upgrading information! Distributed by: Dynaforge Trading LLC St. Paul, MN55101 Email: service@everbloom-garden.com...
