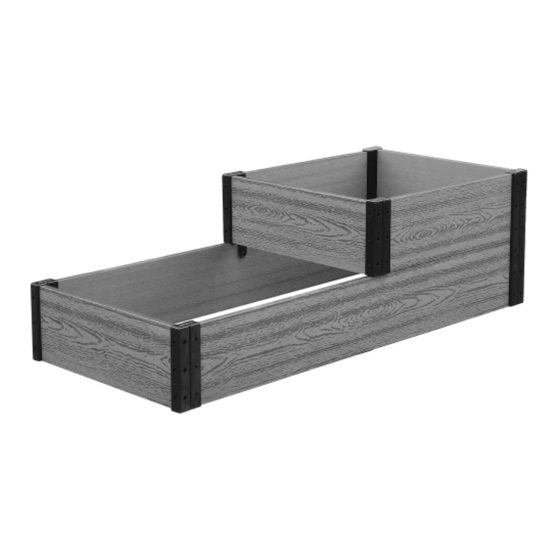

Terraced Roadside Garden Bed
Installation Guide
Thank You!
You're only a few steps away from your perfect vegetable
garden or elevated planter. We hope you enjoy!
Before You Start
Please read the instructions carefully to familiarize
yourself with every detail and step involved. Keep this
manual for future reference. Find a suitable space to
assemble your new Terraced Roadside Garden Bed.
You need at least 48" x 21" (122 x 54cm) for the finished
product. A flat and firm area (like a garage floor or flat
yard space) is perfect! The only tool you may need is a
rubber mallet.
Important Notes
Small parts are included; we advise you to keep
them away from children and pets.
We also suggest having another person help you
assemble. Maximum Load capacity: approximately
5.3 cu. ft. of soil
Subscribe at www.everbloom-garden.com
for extra savings and upgrading information!
Everbloom-Garden.com
Questions or Comments?
Email us at service@everbloom-garden.com
Model# R0714T4821
Dimensions 48" L x 21" W x 7" x 14" H
1
Advertisement
Related Manuals for Everbloom R0714T4821
Summary of Contents for Everbloom R0714T4821
- Page 1 We also suggest having another person help you assemble. Maximum Load capacity: approximately 5.3 cu. ft. of soil Subscribe at www.everbloom-garden.com for extra savings and upgrading information! Everbloom-Garden.com Questions or Comments? Email us at service@everbloom-garden.com...
-
Page 2: Parts List
Parts List Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Left Corner Right Corner Long Board Long Board Securing Plate Post Post (360mm) X 1 (360mm) X 1 Post Cap Bottom Bottom 540mm Bolt Left Corner Right Corner... - Page 3 Assembly Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Start by making sure each corner post is oriented correctly. Reference Image 1. Slide one short board into the 360mm corner posts from above. Note: The boards need to be placed in the inward “U”...
- Page 4 Assembly Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Slide another short board and two long boards into the corner posts from above, as shown in Image 3. IMAGE 3 Long Board Right Corner Post 360mm x 1 Left Corner...
- Page 5 Assembly Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Slide three short boards from above to form the second layer, as shown in Image 4. Note：Don’t swivel the short boards on long sides to prevent them splite from the steel posts. IMAGE 4 Short Board...
- Page 6 Assembly Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Fix the securing plates on corner posts with bolt and nut, as shown in Image 5. IMAGE 5 Left Corner Right Corner Post Post 180mm x 1 180mm x 1 Securing...
- Page 7 Assembly Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Fasten the bolts and nuts with hex key and nut driver, as shown in Image 6. IMAGE 6...
- Page 8 Assembly Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Slide these two post brackets with securing plates onto the short boards from above, as shown in Image 7. IMAGE 7 Right Corner Post 180mm with Short...
- Page 9 Assembly Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Slide the last short board from above, as shown in Image 8. Note: It is not necessary to screw the securing plates onto the boards. The securing plates will prevent the short boards from moving sidewards after the last short board is inserted.
- Page 10 Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H If necessary, use your rubber mallet to ensure the boards are tightly in place. Cover the brackets with the 6 end caps, as shown in Image 9. Then, you get an Everbloom Terraced Roadside Garden Bed. IMAGE 9...
- Page 11 Notes Terraced Roadside Garden Bed - 48" L x 21" W x 7" & 14" H Sometimes there might be a misalignment of the Corner Posts as shown in Image 10 and Image 11, which may result in difficulty of sliding boards into the brackets. Please adjust them to the right position so that they are parallel to each other, and perpendicular to the ground.
- Page 12 Bloom On. Everbloom-Garden.com US Patent Pending Subscribe at www.everbloom-garden.com for extra savings and upgrading information! Distributed by: Dynaforge Trading LLC St. Paul, MN55101 Email: service@everbloom-garden.com...
