Summary of Contents for IMG STAGE LINE CUBE-630/LED

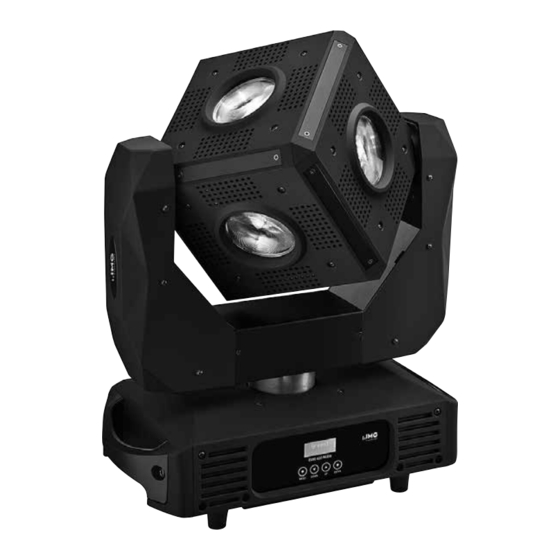

- Page 1 LED Beam Moving Head CUBE-630/LED Order No. 38.7710 INSTRUCTION MANUAL ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS ELECTRONICS FOR SPECIALISTS...
- Page 3 CUBE-630/LED Contents Introduction & Symbol Instruction ----------------------------------------------------------P2 Safety instructions -------------------------------------------------------------------------------P3 Installation instruction---------------------------------------------------------------------------P4 Ringing & Product specification--------------------------------------------------------------P5 LCD display & MENU operation & Function setting -------------------------------P6-11 Channel Instruction-------------------------------------------------------------------------P12-15 DMX-connection and setting ------------------------------------------------------------P14-16 - 1 -...
- Page 4 CUBE-630/LED Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.
- Page 5 CUBE-630/LED Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.
- Page 6 CUBE-630/LED ►Handle with care, do not make the device by strong shocks. While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum distance between light-output from the projector and the illuminated surface must be more than 1 meter.
- Page 7 CUBE-630/LED Ringing Handing bracket Safety-rope Rapid locking hook Insert the quick-lock fasteners of the first holder into the respective holes on the bottom of the device.Tighten the quick-lock fasteners fully clockwise. Make the finished installed mounting bracket tighten on the fixed bracket.
- Page 8 CUBE-630/LED LCD display 1：（MENU） 2：（DOWN） 3：（UP） 4： （ENTER） 5：Display LCD operation Main menu Sub-menu Function DMX address Set address code Address 001~512 15Channel Channel 37 Channel Alone-Mode Mast Mode Host-Mode Auto0 Auto1 Auto Mode Auto2 Auto3 Auto4 Sound Control 000~099%...
- Page 9 CUBE-630/LED Blue4 White4 Red5 Gren5 Blue5 White5 Red6 Gren6 Blue6 White6 Pan Reverse Pan fine Adjust 000~255 Tilt fine Adjust 000~255 Pan Angle 630 Pan Angle Choose Pan Angle 540 Display back Light Hold System Setting Blac DMX Lost Soud...
- Page 10 CUBE-630/LED In edit status, press DOWN key, it will display the options circularly from up to down. [ENTER]：in normal status, no function to press ENTER. In edit mode, press ENTER to enter lower interface. Function setting 1）DMX address setting 1．Press MENU to enter EDIT interface 2.
- Page 11 CUBE-630/LED (2) Press <Up/Down> to choose ‘P000~P255’ (3) Press <Enter> to confirm, save and exit. 【TIL】： (1)Press<Enter> into【TIL】 (2) Press<Up/Down> to choose ‘T000~T255’ (3) Press <Enter> to confirm, save and exit. 【Red1】：(1)Press <Enter> into【Red】 (2) Press <Up/Down> to choose ‘R000~R255’...
- Page 12 CUBE-630/LED (2)Press<Up/Down> choose ‘B000~B255’ (3)Press <Enter> to confirm, save and exit. 【White4】：(1)Press <Enter> into【White4】 (2) Press <Up/Down> choose ‘W000~W255’ (3) Press <Enter> to confirm, save and exit. 【Red5】：(1)Press <Enter> into【Red5】 (2) Press <Up/Down> to choose ‘R000~R255’ (3) Press <Enter> to confirm, save and exit.
- Page 13 CUBE-630/LED 5. Press <Enter> to confirm, save and exit. d）Pan angle setting 1. Press MENU to enter EDIT interface. 2. Press UP/DOWN to choose, then pres ENTER to enter 【System setting】 3. Press UP/DOWN to choose, then pres ENTER to enter 【Pan Angle Choose】...
- Page 14 CUBE-630/LED (3) Press <Enter> to confirm, save and exit. 【Temp】：(1)Press ENTER to enter【Temp】 (2)Press UP/DOWN, then press ENTER to check the light’s working temperature xxxº (3) Press <Enter> to confirm, save and exit. Channel Instruction 15 Channel Channel Value Function 000-255 Pan 0-630°...
- Page 15 CUBE-630/LED 227-236 R&B-Chase 237-246 G&B-Chase 247-255 R&G&B-Chase 000-015 No Function 016-063 Auto 0 064-111 Auto 1 CH12 Programs 112-159 Auto 2 160-207 Auto 3 208-255 Auto 4 000-045 No Function 046-065 066-085 Green 086-105 Blue 106-125 White CH13 Color Macro 126-145 R&G...
- Page 16 CUBE-630/LED CH12 Green2 000-255 Green(0-100%) CH13 Blue2 000-255 Blue(0-100%) CH14 White2 000-255 White(0-100%) CH15 Red3 000-255 Red(0-100%) CH16 Green3 000-255 Green(0-100%) CH17 Blue3 000-255 Blue(0-100%) CH18 White3 000-255 White(0-100%) CH19 Red4 000-255 Red(0-100%) CH20 Green4 000-255 Green(0-100%) CH21 Blue4 000-255...
- Page 17 CUBE-630/LED 064-111 Auto 1 112-159 Auto 2 160-207 Auto 3 208-255 Auto 4 000-045 No Function 046-065 066-085 Green 086-105 Blue 106-125 White CH35 Color Macro 126-145 R&G 146-165 R&B 166-185 G&B 186-205 R&G&B&W 206-255 RGB Change Fast-slow CH36 LED Strips speed...
- Page 18 CUBE-630/LED If more than one fixtures set to the same address, all of them receive from DMX channels signal. All connections fixtures are jointly controlled, controller can't separate control a device. If each device set to a different address, each device will be separate from its particular set the starting address and began accepting DMX512 control signal, so that more convenient separate control one of device.
- Page 19 CUBE-630/LED Notes - 17 -...
- Page 20 MONACOR INTERNATIONAL GmbH & Co. KG • Zum Falsch 36 • 28307 Bremen • Germany 01 .12.01.2016 www.monacor.com...
