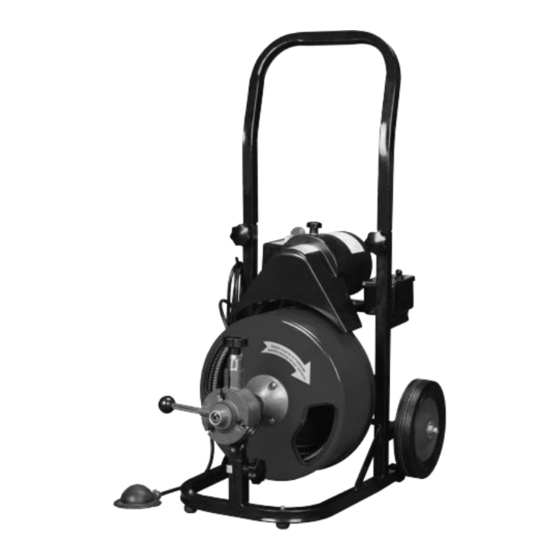

50/75/100 FOOT
Electric Drain Cleaner
Model: RC-9001
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools
with us compared to the major top brands and doses not necessarily mean to
cover all categories of tools offered by us. You are kindly reminded to verify
carefully when you are placing an order with us if you are actually saving half
in comparison with the top major brands.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VEVOR RC-9001
Summary of Contents for VEVOR RC-9001
- Page 1 50/75/100 FOOT Electric Drain Cleaner Model: RC-9001 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 2 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: General Power Tool Safety Warnings
Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. -
Page 4: Electrical Safety
presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. 3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. - Page 5 the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. 4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 6: Drain Cleaner Safety Warnings
instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. - Page 7 6. Unplug the Drain Cleaner from its electrical outlet before performing any inspection, maintenance, or cleaning procedures. 7. Do not leave the Drain Cleaner unattended while running. Turn power off if you have to leave the Drain Cleaner. 8. Do not allow the cutter to stop turning while the machine is running.
- Page 8 or other issues. Appropriate personal protective equipment always includes ANSI approved safety glasses and heavy-duty work gloves, and may include equipment such as latex or rubber gloves, face shields, goggles, protective clothing, respirators and steel toed footwear. 20. Wash hands after use. Use hot, soapy water to wash hands and other exposed body parts exposed to drain contents after handling or using drain cleaning equipment.
-
Page 9: Vibration Safety
Vibration Safety This tool vibrates during use. Repeated or long- term exposure to vibration may cause temporary or permanent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of vibration- related injury: 1. Anyone using vibrating tools regularly or for an extended period should first be examined by a doctor and then have regular medical check-ups to ensure medical problems are not being caused or worsened from use. -
Page 10: Grounded Tools: Tools With Three Prong Plugs
have a proper outlet installed by a qualified electrician. Grounded Tools: Tools with Three Prong Plugs 1. Tools marked with “Grounding Required” have a three wire cord and three prong grounding plug. The plug must be connected to a properly grounded outlet. -
Page 11: Extension Cords
2. Press the TEST button. The GFCI indicator light will go out and power to the machine should cut off. 3. WARNING! If the light does not go out when test button is pushed, equipment should not be used until proper repairs can be made. 4. - Page 12 TABLE A: RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS* (120/240 VOLT) NAMEPLATE EXTENSION CORD LENGTH AMPERES (at full 25´ 50´ 75´ 100´ 150´ load) 0 – 2.0 2.1 – 3.4 3.5 – 5.0 5.1 – 7.0 7.1 – 12.0 12.1 – 16.0 16.1 –...
-
Page 13: Specifications
WARNING marking concerning Risk of Fire. Do not cover ventilation ducts. Keep flammable objects away WARNING marking concerning. Risk of Electric Shock. Properly connect power cord to appropriate outlet. Specifications Electrical Rating 120V~, 60Hz, (North）220-230V~ 50Hz（Europe） Motor Speed 1800 RPM (North） 1500RPM（Europe） Power Cord 1.3 Meters 1/2 Inch Dia. - Page 14 Functions Cutting Tool Accessories There are four Cutting Tools included with each Drain Cleaner. Select the appropriate tool for the cleaning job and attach to Cable. Each is described in the table below. - 13 -...
- Page 15 Arrow Cutter Boring Bulb Cutter C-Cutter Spade Cutter Cutter Tool Applications Arrow Cutter (2 pieces) Starting tool; ideal for cutting and scraping Starting tool; ideal for removing loose objects Boring Bulb Cutter Finishing tool; ideal for grease stoppages and cleaning C-Cutter pipe walls.
- Page 16 Assembly TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Rotation Switch of the tool to its “OFF” position and unplug the tool from its electrical outlet before assembling or making any adjustments to the tool. Note: For additional information regarding the parts listed in the following pages, refer to the Assembly Diagram near the end of this manual.
-
Page 17: Tool Set Up
Operating Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set Up TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Turn the Rotation Switch of the tool to its “OFF” position and unplug the tool from its electrical outlet before assembling or making any adjustments to the tool. - Page 18 been modified, is missing the grounding prong or if the cord is damaged, to avoid electrical shock, do not use the machine until the cord has been replaced by a qualified electrician. 3. Clean any oil, grease or dirt from all equipment handles and controls. This helps prevent the machine or control from slipping during use.
-
Page 19: Work Area Set-Up
17. Move Feed Lever to exactly between F and R settings, otherwise cable will start moving in or out during this test. 18. Press the Foot Switch and note the direction of rotation of the drum. If the Foot Switch does not control the Drain Cleaner’s operation, do not use the machine until the Foot Switch has been repaired. - Page 20 safety instructions and information. 8. If necessary, remove fixture (toilet, sink, etc.) to allow access to the drain. Do not feed the cable through a fixture. This could damage the Drain Cleaner and the fixture. 9. Determine the correct drain cleaning cable size for the drain cleaning job.
-
Page 21: Power Feed Operation
18. Confirm that the Rotation Switch is in the OFF position. 19. Run the cord along the clear path. With dry hands, plug the Drain Cleaner into a properly grounded outlet. Keep all connections dry and off the ground. 20. If the power cord is not long enough, use an extension cord that is in good condition and has a three prong plug similar to the one supplied on the Drain Cleaner. - Page 22 1. After making sure the Rotation Switch is in the “Forward” position, Tension Knob has been retightened, and the Power Feed Lever is in the down (forward) position, press the Foot Switch to start feeding the cable further into the drain. Make sure you can operate the Foot Switch while having at least one hand on the cable at all times.
- Page 23 NOTICE Rotation Switch controls rotation of drum only. DO NOT USE ROTATION SWITCH REVERSE POSITION WHILE REMOVING CABLE FROM PIPE. Use reverse direction only momentarily for relieving pressure or untangling cable from a blockage. Warranty void if cable damaged from allowing motor to twist excessively against blockage, or if drum is run in reverse long enough to unwind cable.
-
Page 24: Maintenance And Servicing
make sure Rotation Switch is still in Forward position. WARNING! Do not retrieve cable with Rotation Switch set in Reverse position. 3. Keep one hand on cable. The cable can get caught while being retrieved. 4. Continue retrieving cable until you can pull cable by hand. Release foot from Foot Switch. - Page 25 4. Lubricate with oily rag as you feed cable back into drum. WARNING! Do not attempt to remove a rotating cable. Cleaning/Lubricating Housing 1. Loosen Belt Guard Knob and slide Belt Guard off from top of Drain Cleaner motor. 2. Use screwdriver to slide belt off back of Drain Cleaner drum. 3.
-
Page 26: Troubleshooting
Troubleshooting Probable Cause(s) Solution(s) Problem 1. Turn motor off. Allow motor to cool off completely before restarting and stay clear of cable 1. The motor may have when turning motor back on. been shut off by its Motor shuts 2. Make sure all electrical internal thermal off During components are dry and all... -
Page 27: Parts Lists And Diagrams
or when touching Power Cord or qualified technician; Replace Foot Pedal Drain Cleaner. Motor. is pressed. 5. Faulty GFCI unit. 4. Dry cord and unit. 5. Electrician must Replace Power Cord with GFCI. Motor does Check for leaks in air line leading not operate Pneumatic Foot Pedal from Foot Pedal. -
Page 28: Parts List
Parts List Part Description Part Description Drum Connecting Cable Shaft Spacer Bolt Bolt Spring Washer Motor Support Spring Cable Bolt Bolt Motor Support Front Hub Bushing Motor Drum Shell V- Belt Pulley Bolt Bolt Fiber Washer V-Belt (A1118) Distributor Tube/Inner Drum Belt Guard Flat Washer Belt Guard Retaining Knob... - Page 29 - 28 -...
- Page 30 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: VEVOR STORE INC, 9448 RINCHMOND PL #E RANCHO CUCAMONGA, California, 91730 United States of America Pooledas Group Ltd Unit 5 Albert Edward House,...
- Page 32 Support and E-Warranty Certificate www.vevor.com/support Made In China...
