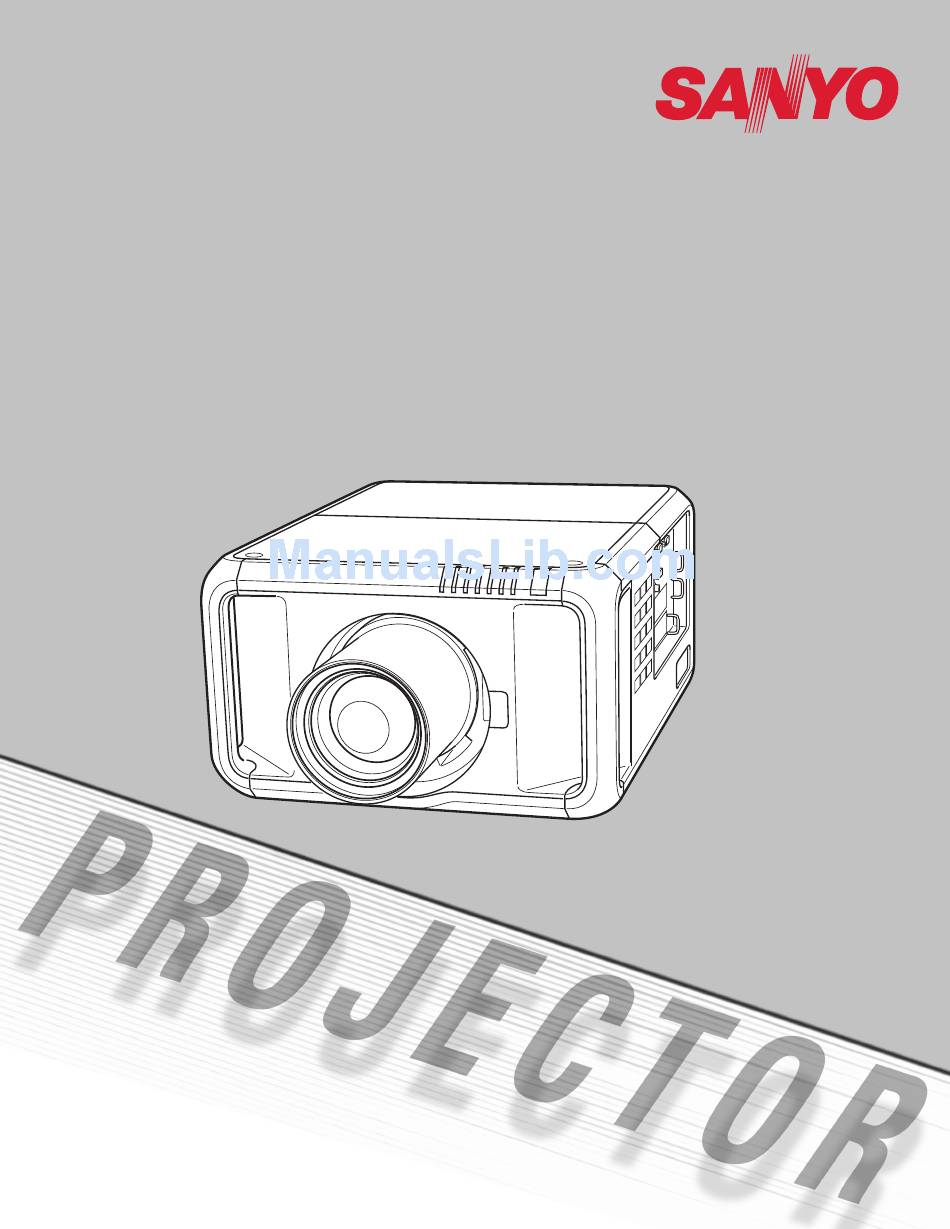

Multimedia Projector
PDG-DET100L
MODEL
Projection lens is optional.
Owner's Manual

Advertisement

   Related Manuals for Sanyo PDG-DET100L

   Summary of Contents for Sanyo PDG-DET100L

  • Page 1

    Multimedia Projector PDG-DET100L MODEL Projection lens is optional. ✽ Owner’s Manual...

  • Page 2: Features And Design

    This Multimedia Projector is designed with most advanced technology for portability, durability, and ease of use. This projector utilizes built-in multimedia features. projector with high resolution ® ◆ This projector is compatible with Full HD signals, allowing high definition projection. It is also compatible with two different types of user- changeable color wheels allowing high brightness or rich color reproduction.

  • Page 3: Table Of Contents

    Features and Design . . . . . . . . . . . . . . . . 2 Table of Contents . . . . . . . . . . . . . . . . . . 3 To The Owner .

  • Page 4: To The Owner

    Before installing and operating the projector, read this manual thoroughly. The projector provides many convenient features and functions. Operating the projector properly enables you to manage those features and maintains it in good condition for many years to come. Improper operation may result in not only shortening the product life, but also malfunctions, fire hazard, or other accidents.

  • Page 5: Safety Instructions

    All the safety and operating instructions should be read before the product is operated. Read all of the instructions given here and retain them for later use. Unplug this projector from AC power supply before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

  • Page 6: Air Circulation

    Safety Instructions Air Circulation Openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. CAUTION Hot air is exhausted from the exhaust vent. When using or installing the projector, the following precautions should be taken.

  • Page 7: Installing The Projector In Proper Directions

    Installing the Projector in Proper Directions Use the projector properly in specified positions. Improper positioning may reduce the lamp life and result in severe accident or fire hazard. This projector can project the picture in upward, downward, or inclined position in perpendicular direction to the horizontal plane.

  • Page 8: Moving The Projector

    Safety Instructions Moving the Projector Retract the adjustable feet to prevent damage to lens and cabinet. For safety, holding the projector on both sides by 2 or more people is recommended to move the projector because the projector is heavy. When moving the projector by one person from necessity, hold the handle carefully.

  • Page 9: Compliance

    Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 10: Part Names And Functions

    Front Back Part Names and Functions ✽ q Projection Lens (Option) w Indicators e Infrared Remote Receiver (Front) r Handle t Adjustable Feet y Side Control Terminals and Connectors i Main On/Off Switch o Power Cord Connector !0 Lamp Cover ✽Kensington Security Slot This slot is for a Kensington lock used to deter theft of the projector.

  • Page 11: Terminals And Connectors

    Terminals and Connectors q USB CONNECTOR (Series B) USB connector is used to service the projector. w 5 BNC INPUT jACKS Connect the component or composite video output signal from video equipment to VIDEO/Y, Pb/Cb, and Pr/Cr jacks or connect the computer output signal (5 BNC Type [Green, Blue, Red, Horiz.

  • Page 12: Side Control And Indicators

    Part Names and Functions Side Control and Indicators Indicators Side Control ON/STAND-By button Turn the projector on or off. (pp.24,25) SHUTTER button Close and open up the built-in shutter. (p.28) e ZOOM button Zoom in and out the images. (p.28) r FOCUS button Adjust the focus.

  • Page 13: Indicators

    Indicators Part Names and Functions q POwER indicator This indicator lights green when the projector is ready to be turned on. And it flashes green in Power Management mode. (pp.57 , 77-79) w LAMP Indicator This indicator is dim when the projector is turned on.

  • Page 14: Remote Control

    Part Names and Functions Remote Control Note: ✔ To ensure safe operation, observe the following precautions: •Do not bend, drop, or expose the remote control to moisture or heat. •For cleaning, use a soft dry cloth. Do not apply benzene, thinner, spray, or any other chemical materials.

  • Page 15: Remote Control Battery Installation

    Remote Control Battery Installation Open the battery compartment lid. Pull up the lid and remove it. To ensure safe operation, please observe the following precautions : l Use two (2) AA or LR6 type alkaline batteries. l Always replace batteries in sets. l Do not use a new battery with a used battery.

  • Page 16: Remote Control Code

    Part Names and Functions Remote Control Code The eight different remote control codes (Code 1–Code 8) are assigned to this projector. Switching the remote control codes prevents interference from other remote controls when several projectors or video equipment next to each other are operated at the same time. Change the remote control code for the projector first before changing that for the remote control.

  • Page 17: Installation

    Lens Installation Before setting up the projector, install Projection Lens on the projector. Before installation, check where the projector is used and prepare a suitable lens. For the specifications of Projection Lens, contact sales dealer where you purchased the projector. - Lens installation and replacement should be made by the qualified service personnel .

  • Page 18: Lens Shift Adjustment

    Installation Lens Shift Adjustment Projection lens can be moved from side to side and up and down with the motor-driven lens shift function. This function makes the positioning of images easy on the screen. (See page 28) The display position can be shifted upward up to 55% elevation of the display.

  • Page 19: Terminals Of Projector

    Terminals of Projector The projector has two replaceable Interface board slots. The projector's functions can be extended by installing the optional interface boards into the terminal slots. 1 vacant slot (Input 3) is provided in your purchasing the projector. For the Optional Interface Boards, contact sales dealer where you purchased the projector. INPUT/OUTPUT TERMINALS Replacement of Terminal...

  • Page 20: Connecting To Computer

    Installation Connecting to Computer Cables used for connection • VGA Cable (D-sub 15 pin) * • DVI Cable • BNC Cable (BNC x 5) ( *One cable is supplied; Other cables are not supplied with this projector.) Laptop type BNC Cable Terminals of the projector Unplug the power cords of both the...

  • Page 21: Connecting To Video Equipment

    Connecting to Video Equipment Cables used for connection • Video Cable (BNC x 3, BNC x 1) • SCART-VGA Cable • DVI Cable • S-Video Cable • HDMI Cable ( Cables are not supplied with the projector.) Video Source (example) Video Cassette Recorder S-Video Composite...

  • Page 22: Attaching The Cable Cover

    Installation Attaching the Cable Cover It is recommended to attach the cable covers to protect the terminal area from dust when hanging the projector from the ceiling. Please connect the covers to the projector with the provided straps to prevent the covers from falling off. Follow these steps to attach the support cover and cable cover.

  • Page 23: Connecting The Ac Power Cord

    Connecting the AC Power Cord This projector uses nominal input voltages of 100-120 or 200–240 V AC. It is designed to work with single-phase power systems having a grounded neutral conductor. To reduce the risk of electrical shock, do not plug into any other type of power system. If you are not sure of the type of power being supplied, consult your authorized dealer or service station.

  • Page 24: Basic Operation

    Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet and turn on the MAIN ON/OFF Switch. The LAMP indicator lights red and the POWER indicator lights green.

  • Page 25: Turning Off The Projector

    Turning Off the Projector Press the ON/STAND-BY button on the side control or on the remote control, and “Power off?” appears on the screen. Press the ON/STAND-BY button on the side control or on the remote control again to turn off the projector.

  • Page 26: How To Operate The On-screen Menu

    Basic Operation How to Operate the On-Screen Menu The projector can be adjusted or set via the On-Screen Menu. For each adjustment and setting procedure, refer to the respective sections in this manual. Press the MENU button on the side control or the remote control to display the On-Screen Menu.

  • Page 27: Menu Bar

    Menu Bar For detailed functions of each menu, see “Menu Tree” on pages 74-76. For Computer Source Guide window Show the selected Menu of the On-Screen Menu. Input Menu Used to select an input source Computer or Video (pp.32-34). PC System Menu Used to select computer system (p.35).

  • Page 28: Operating With Projector Control

    Basic Operation Operating with Projector Control Zoom Adjustment Display “Zoom” on the screen. Press the ZOOM button and then press the point the image. Focus Adjustment Display “Focus” on the screen. Press the FOCUS button and then press the point of the image.

  • Page 29: Information Menu

    Information Information display can be used to confirm the current operating condition of the projector and the signal being projected through the projector. Press the INFORMATION button to display the information window on the screen. Press the Point button or the INFORMATION button again to display the next page.

  • Page 30: Operating With Remote Control

    Basic Operation Operating with Remote Control Using the remote control for some frequently used operations is advisable. Just pressing one of the buttons enables you to make the desired operation quickly without calling up the On-Screen Menu. AUTO PC button Press the AUTO PC button on the remote control to operate the Auto PC Adj.

  • Page 31: Keystone Button

    SHUTTER button See page 28 for details. FILTER button Press and hold the FILTER button for more than five seconds to replace the filter mechanically. See page 56 for details. ✔ Note: •The filter cannot be rewound. • When the filter is replaced, the total accumulated time of the filter use is automatically set to 0.

  • Page 32: Input Selection

    Input Side Control Side Control Operation Press the INPUT button on the side control. It switches to INPUT 1, INPUT 2, INPUT 3 and INPUT 4 as you press the INPUT button. Before using the INPUT button on the side control, you must select a correct input source by On-Screen Menu and the latest input source will be displayed.

  • Page 33: Computer Input Source Selection

    Computer Input Source Selection Menu Operation when Selecting the INPUT 1 with DVI/D-sub 15 terminals Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the INPUT Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired input and then press the SELECT button.

  • Page 34: Video Input Source Selection

    Input Selection Video Input Source Selection Menu Operation when Selecting the INPUT 1 with DVI/D-sub 15 terminals When connecting to video equipment, select the type of Video source in the Source Select Menu. RGB (Scart) When scart video equipment is connected to the INPUT 1 (ANALOG) terminal, select RGB (Scart).

  • Page 35: Computer Input

    Computer System Selection Automatic Multi-Scan System This projector automatically tunes to various types of computers based on VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, or WUXGA (refer to “Compatible Computer Specifications” on pages 80-81). If a computer is selected as a signal source, this projector automatically detects the signal format and tunes to project a proper image without any additional settings.

  • Page 36: Auto Pc Adjustment

    Computer Input Auto PC Adjustment Auto PC Adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer. Direct Operation The Auto PC adjustment function can be operated directly by pressing the AUTO PC button on the remote control or the AUTO PC ADJ.

  • Page 37: Manual Pc Adjustment

    Manual PC Adjustment Some computers employ special signal formats which may not be tuned by Multi-Scan system of this projector. Manual PC Adjustment enables you to precisely adjust several parameters to match those special signal formats. The projector has 10 independent memory areas to store those parameters manually adjusted. It allows you to recall the setting for a specific computer.

  • Page 38

    Computer Input Reset To reset the adjusted data, select Reset and press the SELECT button. A confirmation box appears and then select [Yes]. All adjustments will return to their previous figures. Mode free To clear the adjusted data, select Mode free and then press the SELECT button.

  • Page 39: Image Level Selection

    Image Level Selection Direct Operation Press the IMAGE SEL. button on the remote control to select the desired image level. Standard Real Dynamic DICOM Image1 • • • Image 10 Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

  • Page 40: Screen Size Adjustment

    Computer Input Screen Size Adjustment Select the desired screen size that conforms to the input signal source. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer to the desired function and then press the SELECT button.

  • Page 41

    Keystone This function is used to store or reset the keystone correction when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option. Store. . . Keep the keystone correction even when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged.

  • Page 42: Video Input

    Video System Selection Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the AV System Menu icon. Use the Point ed buttons to move the red arrow pointer to the desired system and then press the SELECT button.

  • Page 43: Image Level Selection

    Image Level Selection Direct Operation Press the IMAGE SEL. button on the remote control to select the desired image level. Standard Cinema Dynamic DICOM Image1 • • • Image 10 Menu Operation Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Select Menu icon.

  • Page 44: Screen Size Adjustment

    Video Input Screen Size Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Screen Menu icon. Use the Point ed buttons to move the red frame pointer to the desired function and then press the SELECT button.

  • Page 45

    Keystone This function is used to store or reset the keystone correction when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged. Use the Point 7 8 buttons to switch between each option. Store. . . Keep the keystone correction even when the Main On/Off Switch is pressed to Off or the AC power cord is unplugged.

  • Page 46: Picture Image

    Image Adjustment Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Image Adjust Menu icon. Use the Point ed buttons to move the red frame pointer to the desired item and then press the SELECT button to display the adjustment dialog box.

  • Page 47

    COLOR SELECTION MODE (continued) COLOR M . Return to the COLOR MANAGEMENT POINTER. (If you press the MENU button on the side control or the remote control, it returns to the COLOR MANAGEMENT POINTER and you will need to reselect and readjust the color.) MENU Return to the IMAGE ADJUST Menu.

  • Page 48

    Picture Image white balance (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone; press the Point 8 button to deepen red/green/blue tone (from 0 to 63). Offset (Red/Green/Blue) Press the Point 7 button to lighten red/green/blue tone of the black level of an image;...

  • Page 49: Setting

    Setting This projector has a Setting menu that allows you to set up other various functions. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon. Use the Point ed buttons to move the red frame pointer to the desired item and then press the SELECT button.

  • Page 50

    Setting Background The selected background screen will be displayed when no input signal is detected. Blue . . . Blue colored background. User . . . The image you captured. Black. . . Black colored background. Lamp mode This projector is equipped with 2 projection lamps and the number of using lamps can be switched to 2 lamps or 1 lamp.

  • Page 51

    Picture in Picture This function is used to project two videos simultaneously by placing a separate small sub screen within or next to the main screen. Use the Point ed buttons to move the red frame pointer to Picture in Picture and then press the SELECT button to display a dialog box.

  • Page 52

    Setting Edge blending This function allows multiple projector images to be seamlessly overlapped. Use the Point ed buttons to move the red frame pointer to Edge blending and then press the SELECT button to display a dialog box. Use the Point ed7 8 buttons to adjust the setting value.

  • Page 53

    Advanced color matching ..Set to ‘On‘ to activate the ‘Advanced color matching’. When it is set to ‘Off‘, all items except for ’Test pattern’ are displayed in grayout and cannot be adjusted. Measured ..When using the color wheel set optimized for high brightness, the chromatic coordinate (X,Y) and the brightness (L) of Red, Green, Blue, Half white, and White are displayed...

  • Page 54

    Setting HDMI setup Select Normal or Enhanced according to the output signal of video equipment. Press the Point 7 8 buttons to switch between each option. Normal ..When the output of video equipment is set to “STANDARD.

  • Page 55

    Logo PIN code lock This function prevents an unauthorized person from changing the screen logo. Off ..The screen logo can be changed freely from the Logo Menu. On ..The screen logo cannot be changed without a Logo PIN code.

  • Page 56

    Setting Filter control You can replace the filter with this function. Press the SELECT button at Filter control to display a confirmation box. To replace, press the SELECT button at “YES” and the electrically operated filter starts to scroll. You can also replace the filter by using the remote control (p.31).

  • Page 57

    Power management For reducing power consumption as well as maintaining the lamp life, the Power management function turns off the projection lamp when the projector is not used for a certain period. If the input signal is interrupted and no button is pressed for more than 30 seconds, the timer display with “No signal”...

  • Page 58

    Setting Security Key lock This function locks the side control and remote control buttons to prevent operation by unauthorized persons..Unlocked..Lock the side control buttons. To unlock, use the remote control. .

  • Page 59

    Enter a PIN code Use the Point buttons on the side control or on the remote control to enter a number. Press the Point button to fix the number and move the red frame pointer to the next box. The number changes to “✳. ” Repeat this step to complete entering a four-digit number.

  • Page 60

    Setting Shutter Shutter function is available to block out light to the screen, so that the screen can be used for the other presenters. Protection Prohibits the shutter operation from the remote control and the projector's side control. Remote control . . . Selecting "On" prohibits the shutter operation from the remote control.

  • Page 61

    Filter counter This function is used to set a time for the filter replacement. Use the Point ed buttons to move the red frame pointer to Filter counter and then press the SELECT button. A dialog box appears showing the Used time option and the Scrolls remaining option. Used Time .

  • Page 62: Maintenance And Care

    Filter Instructions Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter becomes clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector. This projector has an electrically operated filter which helps you to replace the filter easily.

  • Page 63: Replacing The Filter Cartridge

    Replacing the Filter Cartridge Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet. First, clean up the dust on the projector and around the air vents. Open the filter cover. (See the right figure.) Pull out the filter cartridge.

  • Page 64: Resetting The Filter Counter

    Maintenance and Care Resetting the Filter Counter Be sure to reset the Filter counter after replacing the filter cartridge. Press the MENU button to display the On-Screen Menu. Use the Point 7 8 buttons to move the red frame pointer to the Setting Menu icon.

  • Page 65: Lamp Management

    Lamp Management This Projector is equipped with 2 Projection Lamps to ensure brighter image and those lamps are controlled by the Lamp Management Function. The Lamp Management Function detects the status of lamps and shows the status on screen or on the LAMP 1/2 REPLACE indicators. This function also automatically controls the Lamp Mode when any of lamps is out for the end of life or malfunctions.

  • Page 66: Lamp Replacement

    Maintenance and Care Lamp Replacement When the projection lamp of the projector reaches its end of life, the Lamp replacement icon appears on the screen and LAMP 1/2 REPLACE indicator lights orange. Replace the lamp with a new one promptly. The timing when the LAMP 1/2 REPLACE indicators should light is depending on the lamp mode.

  • Page 67: Lamp Handling Precautions

    ORDER REPLACEMENT LAMP Replacement Lamp can be ordered through your dealer. When ordering a Projection Lamp, give the following information to the dealer. Model No . of your projector Replacement Lamp Type No . LAMP HANDLING PRECAUTIONS This projector uses a high-pressure lamp which must be handled carefully and properly. Improper handling may result in accidents, injury, or create a fire hazard.

  • Page 68: Optional Color Wheel Installation

    Maintenance and Care Optional Color Wheel Installation The projector comes with the high brightness color wheels installed. Additional rich color reproduction color wheels are supplied. To replace the color wheels, refer to the following steps. Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet.

  • Page 69: Cleaning The Projection Lens

    Cleaning the Projection Lens Turn off the projector, press the Main On/Off Switch to Off and unplug the AC power cord from the AC outlet before cleaning. Gently wipe the projection lens with a cleaning cloth that contains a small amount of non-abrasive camera lens cleaner, or use a lens cleaning paper or commercially available air blower to clean the lens.

  • Page 70: Warning Indicators

    Maintenance and Care Warning Indicators The WARNING indicators show the state of the function which protects the projector. Check the state of the WARNING TEMP . indicator and the LAMP indicator to take proper maintenance. The projector is shut down and the WARNING TEMP. indicator is blinking red.

  • Page 71: Appendix

    Troubleshooting Before calling your dealer or service center for assistance, check the items below once again. 1. Make sure you have properly connected the projector to peripheral equipment as described on pages 20–21. 2. Check the cable connection. Make sure that all computers, video equipment, and power cords are properly connected.

  • Page 72

    Appendix appears on the screen appears on the screen The image is out of focus. The image is not bright enough. The color is strange. The image is Left/Right reversed. The image is Top/Bottom reversed. The image is distorted or runs off.

  • Page 73

    The power is turned off – Power management function runs by initial setting. Check “SETTING” section on page automatically. 57 . You cannot operate with – The side control is not available If the side control is locked at “Key lock” under “Security”...

  • Page 74: Menu Tree

    Appendix Menu Tree Computer Input/Video Input Input Input 1 Input 2 Input 3 Input 4 Information Information Network Network ✔ Note: •The Menu display varies depending on the input signal. RGB (PC analog) RGB (Scart) RGB (PC digital) RGB (AV HDCP) HDMI Y, Pb/Cb,Pr/Cr Video...

  • Page 75

    Computer Input System ✽ System displayed in the System Menu varies depending on the input signal. PC Adjust Auto PC adj. Fine sync. Total dots Position H Position V Current mode Clamp Display area - H Display area - V Reset Mode free Store...

  • Page 76

    Appendix Computer Input/Video Input Setting Language Menu Display Background Lamp mode Lamp control Lamp interval Picture in Picture Edge blending Color matching DynamicBlack HDMI setup Logo Filter control Fan control Remote Control 12 languages provided. Quit RC sensor Position/Simple Menu/Menu size/Quit Off/Countdown Off/On Power management Blue/User/Black...

  • Page 77: Indicators And Projector Condition

    Indicators and Projector Condition Check the indicators for the projector condition. The projector is operating normally . Indicators WARNING WARNING POWER LAMP TEMP . FILTER green orange ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ Fig .1 Filter replacement icon and “Please wait... ” •...

  • Page 78

    Appendix The projector is detecting abnormal condition . Indicators WARNING POWER LAMP TEMP . green ✽ ✽ ✽ ✽ wARNING FILTER When the filter detects clogging, reaches a time set in the timer setting or runs out of the filter scroll, the WARNING FILTER indicator lights orange.

  • Page 79

    The projector is detecting abnormal condition . Indicators WARNING WARNING POWER LAMP TEMP . FILTER green orange ✽ Fig .2 Filter replacement icon Fig .3 Fig .4 Filter cartridge replacement icon ✽ ✽ ✽ ✽ ✽ ✽ ✽ ✽ Projector Condition LAMP 1/2 SHUTTER REP .

  • Page 80: Compatible Computer Specifications

    Appendix Compatible Computer Specifications Basically this projector can accept the signal from all computers with the V- and H-Frequency mentioned below and less than 230 MHz of Dot Clock. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy VGA 1 640x480 VGA 2 720x400 VGA 3 640x400...

  • Page 81

    ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy 1920x1080 33.750 1920x1080 28.125 1080p 1920x1080 27 .000 1920x1080 67 .500 1920x1080 56.250 1080psf/30 1920x1080 33.750 1080psf/25 1920x1080 28.125 1080psf/24 1920x1080 27 .000 When an input signal is digital from the DVI terminal, refer to the chart below. ON-SCREEN RESOLUTION H-Freq .(kHz) V-Freq .(Hz) DISPLAy...

  • Page 82: List Of Picture In Picture

    Appendix List of Picture in Picture On-Board Input1 Analog PC On-Board Scart Input1 Digital Analog PC On-Board Component Input2 Video/ S-Video o : Picture in Picture combinations are enabled - : Picture in Picture combinations are disabled ✔ Note: • You cannot select Input 3 and Input 4 simultaneously as images of Main picture and Sub picture. •...

  • Page 83: Technical Specifications

    Technical Specifications Mechanical Information Projector Type Dimensions (W x H x D) Net Weight Feet Adjustment DLP Chip Projection System Number of Pixels Signal Compatibility Color System High Definition TV Signal Scanning Frequency Optical Information Projection Lamp Interface Input 1 Input 2 Input 3 Input 4...

  • Page 84: Optional Parts

    Appendix l The specifications are subject to change without notice. l Each projector has its own characteristics. When projecting with several projectors on the same screen or side by side, you may recognize different white balance and color uniformity on each projector. Optional Parts The parts listed below are optionally available.

  • Page 85: Configurations Of Terminals

    Configurations of Terminals ANALOG (Mini D-sub 15 pin) DIGITAL DVI-D (DVI 24 PIN) USB CONNECTOR (Series B) CONTROL PORT CONNECTOR (D-sub 9 pin) Input Red Input +5V Power Green Input Ground (Vert. sync.) Blue Input Ground DDC Data No Connect Ground (Horiz.sync.) Horiz.

  • Page 86: Pin Code Number Memo

    Appendix PIN Code Number Memo Write down the PIN code number in the column below and keep it with this manual securely. If you forgot or lost the number and unable to operate the projector, contact the service station. PIN Code Lock No. Logo PIN Code Lock No.

  • Page 87: Dimensions

    Appendix Dimensions Unit: inch (mm) Screw Holes for Ceiling Mount Screw: M8 Depth: 0.393 (10.0) 6.81(173.0) 6.81(173.0) 15.75(400.0) 5.0º 6.02(153.0) 5.63(143.0) 96.0º 19.96(507.1) 4.92(125.0) 5.79(147.0) 5.0º 6.50(165.0) 6.50(165.0)

  • Page 88: Serial Control Interface

    Appendix Serial Control Interface This projector provides a function to control and monitor the projector's operations by using the RS-232C serial port. Operation Connect a RS-232C serial cross cable to SERIAL PORT IN on the projector and serial port on the PC. (See p.11) Launch a communication software provided with PC and setup the communication condition as follows:...

  • Page 89: Status Read Command

    Status Read Command Format The command is sent from PC to the projector with the format below; 'CR' [Command] 'CR' Command: one character (refer to the command table below. The projector decodes the command and returns the 'Character string' with the format below; Command Function Status Read...

  • Page 90: How To Adjust Multiple Screens

    Appendix How to adjust multiple screens With the Edge blending and Color matching functions, you can seamlessly display the images from more than two projectors. Follow the steps below to adjust multiple projector images. Edge blending Confirm if you use the same type of color wheel (high brightness or rich color reproduction color wheel) for each projector, and set the same screen size and image level.

  • Page 91: Color Matching

    Set ‘Test pattern’ to ‘On’ to display a 50 % white image. The overlap area will be brighter than the non-overlapping area. Adjust the Black level in the Edge blending dialog box to increase the brightness of the non-overlapping area so that the unevenness is reduced.

  • Page 92

    KJ5AL SANyO Electric Co ., Ltd .
