- Page 1 XENO 8 User & Installation Manual www.audac.eu...

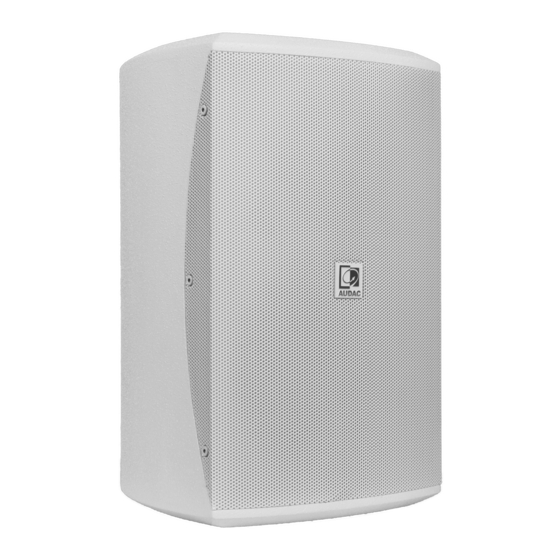

- Page 3 The XENO 8 is the 8” version, equipped with a 1” dome tweeter and a 8” Mid / Low frequency driver, ensuring a high-fidelity sound. This wooden cabinet is fitted with a slim and elegant front grill.
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •...
- Page 5 CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
- Page 6 Installing the XENO Revolving mounting bracket Every XENO speaker is standard delivered with a two-way revolving bracket, making it possible to install the speaker at each location and focusing it into the desired direction. By using this bracket you can install the loudspeaker both in a horizontal and vertical way. The vertical installation method provides an additional advantage when the installation height on the wall or ceiling is limited by focussing the loudspeaker more directly downwards.
- Page 7 AUDAC For connecting the XENO loudspeaker, the wires coming from the amplifier have to be connected to the 4-pin XENO 8 Terminal Block connector at the back of the unit. The Impedance : 8 Ohm wires coming from the amplifier have to be connected to Power Handling : 120 W att the ‘In +’...
- Page 8 Additional Information Technical specifications RMS Power 120 Watt Max. Power 240 Watt Nominal impedance 8 Ohm Sensitivity 1W / 1m 89 dB Sound pressure Max W / 1m 110 dB Frequency response -3 dB 60 Hz - 18 kHz Frequency range -10 dB 50 Hz - 20 kHz Cross-over frequency 2.5 kHz...
