- Page 1 User manual ARES5A audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. ARES5A - User manual...
-
Page 3: Table Of Contents
Overview ARES5A: Rear � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... - Page 4 ARES5A - User manual...
-

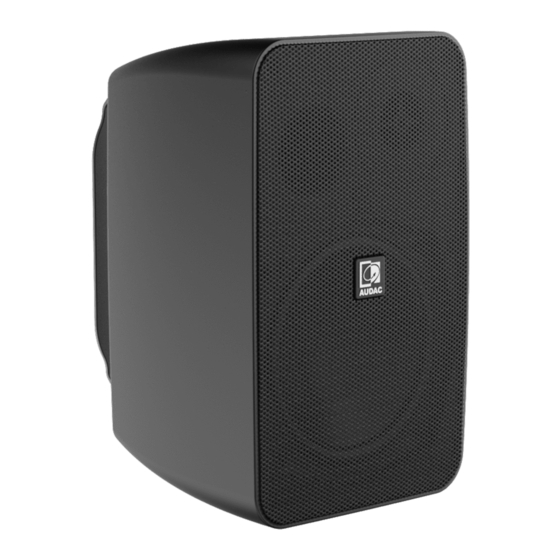

Page 5: Introduction
Active speaker system The ARES5A is a 2-way active speaker system consisting of an active and passive unit to be linked witch each other. It offers an easy and flexible solution for a wide variation of applications, producing a clear and powerful sound. -
Page 6: Precautions
Refer all servicing to qualified personnel. Opening the chassis for any reason will void the manufacturer’s warranty. Do not get the unit wet. If liquid is spilled on the unit, shut it off immediately and take it to a dealer for service. Disconnect the unit during storms to prevent damage. ARES5A - User manual... - Page 7 Please dispose this product at your local collection point or recycling centre for electrical and electronic waste. This will make sure that it will be recycled in an environmentally friendly manner, and will help to protect the environment in which we all live. ARES5A - User manual...
-
Page 8: Connections And Connectors
Chapter 1 Connections and connectors CONNECTION STANDARDS The in- and output connections for AUDAC audio equipment are performed according to international wiring standards for professional audio equipment 3-Pin Terminal block: For unbalanced line input connections Left: Signal - (XLR Pin 3) -
Page 9: Overview Ares5A: Rear
This button allows you to increase or decrease the high system. frequencies by 12 dB. By adding high frequencies, the intelligibility can be improved. In the center position, the sound is neutral. You can adjust it to the desired level. ARES5A - User manual... -
Page 10: Overview Ares5: Passive
IEC C7/C8 power cord. connector. For more information about compatible devices and further information about pinouts, cable runs and technical possibilities, check additional documentation on our websites or from the optional accessories. Overview ARES5: passive Terminal block connector ARES5A - User manual... -
Page 11: Chapter 3 011
Placement and mounting The ARES5A has to be fixed to the wall by two screws and plugs. Two screws and plugs are supplied, but should be selected depending on the mounting surface. The screws are fitted into the provided slots of the bracket. The shape of the slots allows the screws to be inserted into the wall first, after which the speaker is suspended. - Page 12 Remote input connector It is optional to connect the ARES5A to a remote input unit. The connection is made using a CAT cable, whereby the minimum requirement for the connection is a CAT5E. The signal strength, with the use of a CAT5E cable, is strong enough up to a length of 100 meters.
-
Page 13: Technical Specifications
21.11 Kg / 0.12 Cbm Accessories included Wall mounting bracket set Mains power cable (1.5 meter) Speaker cable (3.5 meter) Mounting screws + plugs Optional accesoiries AUDAC wall panel (check www.audac.eu for compatible products) 90° bracket MBK455/B (black) MBK455/W (white) ARES5A - User manual... - Page 14 Notes ARES5A - User manual...
