- Page 1 Ateo 4D/6D User & Installation Manual www.audac.eu...

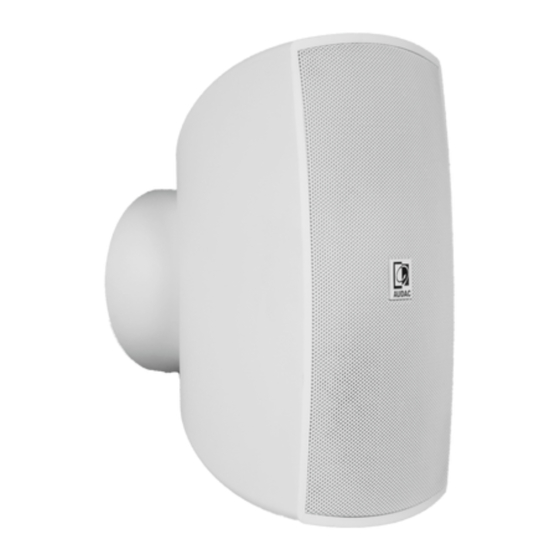

- Page 3 Introduction 2-Way speaker with Clevermount™ The ATEO is a series of extraordinary loudspeakers especially designed for fixed install in indoor applications, ranging from modern residential applications to the most demanding designer applications in evironments such as retail stores, pubs, restaurants or even clubs.
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •...
- Page 5 CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
- Page 6 Installing the ATEO Clevermount™ Technology Every Ateo speaker uses the unique Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket and providing a great ease for installing the loudspeaker in one good-looking entity. Using this technology, the speaker can be installed at any location in both a horizontal and vertical way, providing the possibility for pointing the speaker into the desired direction, even after the speaker is already mounted and connected.
- Page 7 14,2 ATEO6 The optional WMA40/60 30° incline angle extension mount is also available and offers horizontal and vertical angles up to 60°. This way the sound experience can be optimized in every environement. Step 1: Attach the Wall Plate The first step which should be taken is the mounting of the supplied wall plate to the desired location on the wall or the cable adapter plate.
-
Page 8: Step 2: Make The Connections
Step 2: Make the connections After the wall plate is installed, the connections can be made. The Ateo speaker can be connected in low impedance systems and provide link-through possibility. The wires coming from the amplifier have to be connected to the corresponding ter- minals of the special 6-pin Terminal block connector on the wall plate. - Page 9 Step 3: Attach the speaker After the wall plate is mounted and the wires are connected, the loudspeaker can be fixed to the wall plate. This should be done by sliding the hooks of the wall plate into the slots on the back side of the speaker, followed by a downwards movement of the loudspeaker (about 1 cm).
- Page 10 Step 4: Position the loudspeaker The last step in the mounting procedure of the speaker is pointing it into the desired direction. This can be done after (carefully) removing the logo in the center of the front grill and untightening the allen-key bolt which is located behind it. After this bolt is untightened by a few turns, the speaker will be in a free state, making it possible to move it into the left (30°), right (30°), up (5°) and down (30°) position.
-
Page 11: Additional Information
Additional Information Technical specifications ATEO 4D ATEO 6D Max Power 70 Watt 120 Watt RMS Power 35 Watt 60 Watt Nominal impedance 16 Ohm 16 Ohm Sensitivity (1W/1m) 86 dB 89 dB Sound Pressure (Max W/1m) 101 dB 106 dB @ 16 Ohm Frequency Response (±... - Page 12 Notes...
