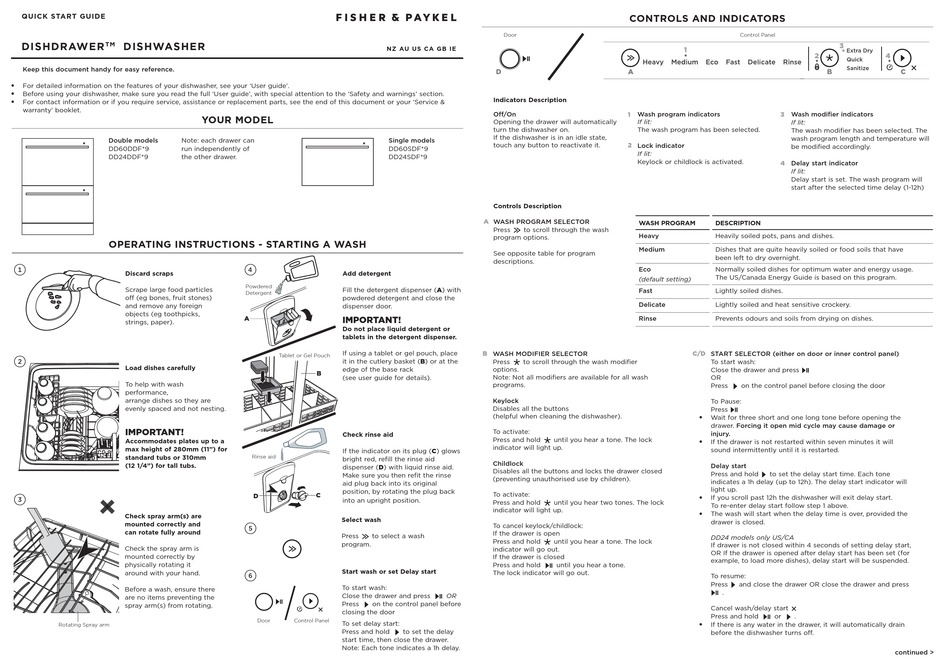

QUICK START GUIDE
DISHDRAWER
TM
DISHWASHER
Keep this document handy for easy reference.
For detailed information on the features of your dishwasher, see your 'User guide'.
●
Before using your dishwasher, make sure you read the full 'User guide', with special attention to the 'Safety and warnings' section.
●
For contact information or if you require service, assistance or replacement parts, see the end of this document or your 'Service &
●
warranty' booklet.

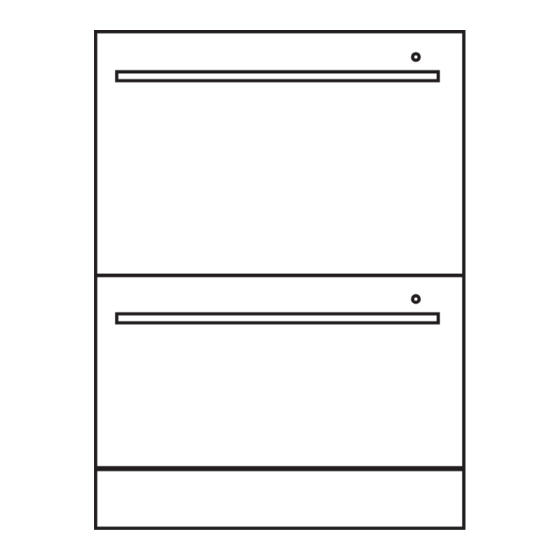

Double models
Note: each drawer can
DD60DDF*9
run independently of
DD24DDF*9
the other drawer.
OPERATING INSTRUCTIONS - STARTING A WASH
1
Discard scraps
Scrape large food particles
off (eg bones, fruit stones)
and remove any foreign
objects (eg toothpicks,
strings, paper).
2
Load dishes carefully
To help with wash
performance,
arrange dishes so they are
evenly spaced and not nesting.
IMPORTANT!
Accommodates plates up to a
max height of 280mm (11") for
standard tubs or 310mm
(12 1/4") for tall tubs.
3
Check spray arm(s) are
mounted correctly and
can rotate fully around
Check the spray arm is
mounted correctly by
physically rotating it
around with your hand.
Before a wash, ensure there
are no items preventing the
spray arm(s) from rotating.
Rotating Spray arm
YOUR MODEL
4
Add detergent
Powdered
Fill the detergent dispenser (A) with
Detergent
powdered detergent and close the
dispenser door.
A
IMPORTANT!
Do not place liquid detergent or
tablets in the detergent dispenser.
If using a tablet or gel pouch, place
Tablet or Gel Pouch
it in the cutlery basket (B) or at the
edge of the base rack
B
(see user guide for details).
Check rinse aid
If the indicator on its plug (C) glows
Rinse aid
bright red, refill the rinse aid
dispenser (D) with liquid rinse aid.
Make sure you then refit the rinse
aid plug back into its original
position, by rotating the plug back
C
D
into an upright position.
Select wash
5
Press
to select a wash
program.
Start wash or set Delay start
6
To start wash:
Close the drawer and press
Press
on the control panel before
closing the door
Door
Control Panel
To set delay start:
Press and hold
start time, then close the drawer.
Note: Each tone indicates a 1h delay.
Door
NZ AU US CA GB IE
D
Indicators Description
Off/On
Opening the drawer will automatically
turn the dishwasher on.
If the dishwasher is in an idle state,
Single models
touch any button to reactivate it.
DD60SDF*9
DD24SDF*9
Controls Description
A
WASH PROGRAM SELECTOR
Press
to scroll through the wash
program options.
See opposite table for program
descriptions.
B
WASH MODIFIER SELECTOR
Press
to scroll through the wash modifier
options.
Note: Not all modifiers are available for all wash
programs.
Keylock
Disables all the buttons
(helpful when cleaning the dishwasher).
To activate:
Press and hold
until you hear a tone. The lock
indicator will light up.
Childlock
Disables all the buttons and locks the drawer closed
(preventing unauthorised use by children).
To activate:
Press and hold
until you hear two tones. The lock
indicator will light up.
To cancel keylock/childlock:
If the drawer is open
Press and hold
until you hear a tone. The lock
indicator will go out.
If the drawer is closed
Press and hold
until you hear a tone.
The lock indicator will go out.
OR
to set the delay
CONTROLS AND INDICATORS
Control Panel
1
A
1
Wash program indicators
3
Wash modifier indicators
If lit:
If lit:
The wash program has been selected.
The wash modifier has been selected. The
wash program length and temperature will
2
Lock indicator
be modified accordingly.
If lit:
Keylock or childlock is activated.
4
Delay start indicator
If lit:
Delay start is set. The wash program will
start after the selected time delay (1-12h)
WASH PROGRAM
DESCRIPTION
Heavily soiled pots, pans and dishes.
Heavy
Medium
Dishes that are quite heavily soiled or food soils that have
been left to dry overnight.
Eco
Normally soiled dishes for optimum water and energy usage.
The US/Canada Energy Guide is based on this program.
(default setting)
Fast
Lightly soiled dishes.
Lightly soiled and heat sensitive crockery.
Delicate
Rinse
Prevents odours and soils from drying on dishes.
C/D
START SELECTOR (either on door or inner control panel)
To start wash:
Close the drawer and press
OR
Press
on the control panel before closing the door
To Pause:
Press
Wait for three short and one long tone before opening the
●
drawer. Forcing it open mid cycle may cause damage or
injury.
If the drawer is not restarted within seven minutes it will
●
sound intermittently until it is restarted.
Delay start
Press and hold
to set the delay start time. Each tone
indicates a 1h delay (up to 12h). The delay start indicator will
light up.
If you scroll past 12h the dishwasher will exit delay start.
●
To re-enter delay start follow step 1 above.
The wash will start when the delay time is over, provided the
●
drawer is closed.
DD24 models only US/CA
If drawer is not closed within 4 seconds of setting delay start,
OR If the drawer is opened after delay start has been set (for
example, to load more dishes), delay start will be suspended.
To resume:
Press
and close the drawer OR close the drawer and press
.
Cancel wash/delay start
Press and hold
or
.
If there is any water in the drawer, it will automatically drain
●
before the dishwasher turns off.
3
2
4
B
C
continued >
