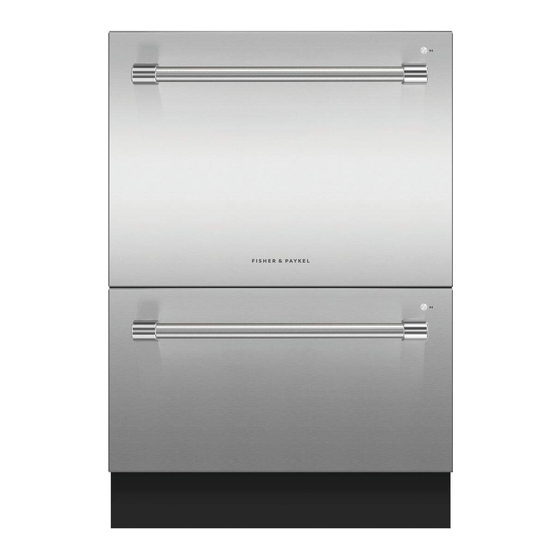

- Page 1 DOUBLE DISHDRAWER™ DISHWASHER DD24DDFT & DD24DV2T models INSTALLATION GUIDE US CA 591385C 05.19...
-
Page 2: Safety And Warnings
SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! Installation of this dishwasher requires basic mechanical and electrical skills. Electrical Shock Hazard Be sure to leave these Instructions with the Customer. Before installing the dishwasher, remove the house fuse or open the circuit Installation must comply with your local building, electricity, and plumbing regulations. -
Page 3: Parts Supplied
PARTS SUPPLIED Drain hose Drain hose Wire clip (2) Clamp (1) Side mounting support (1) joiner (1) (for securing (for securing bracket kit mounting Drain hose joiner) Drain hose joiner) (A and B) (2) brackets (2) OPTIONAL OPTIONAL Phillips Rubber washer Moisture protection Hexagonal Prefinished... - Page 4 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION REMOVE THE LOWER DRAWER REMOVE THE ACCESS COVER & REMOVE POWER CORD To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal.
- Page 5 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION TERMINATE MAINS WIRING AS SHOWN AND REPLACE MODULE AND COVERS Fit a suitable cable clamp for the conduit through the metal knockout. Ensure wiring is routed through or under under housing ribs. Screw down the Live, Neutral and Earth wires correctly.
-
Page 6: Product Dimensions
PRODUCT DIMENSIONS Handles may vary FRONT PROFILE DD24DDFT DD24DV2T PRODUCT DIMENSIONS INCHES (MM) INCHES (MM) Overall height of product 34 - 36 3/8” (864-924) 34 - 36 3/8” (864-924) Overall width of product 23 9/16” (599) 23 13/16” (605) Overall depth of product (excl. handle) 22 9/16”... -
Page 7: Cabinetry Dimensions
CABINETRY DIMENSIONS Bracket slots PLAN PROFILE DD24DDFT DD24DV2T CABINETRY DIMENSIONS INCHES (MM) INCHES (MM) Inside height of cavity* min. 34” (864) min. 34” (864) Inside width of cavity 23 5/8” (600) 24” (610) Inside depth of cavity min. 22 1/16” (560) min. -
Page 8: Cavity Preparation
CAVITY PREPARATION COUNTERTOP Water Connection Moisture Recommended HOT 3/8” protection tape (10 mm) (Maximum 140°F/60°C). must be applied. Supplied hose to suit 3⁄ 8 ” (9 mm) male compression fitting. These marks indicate formed Water Pressure bracket screw locations, if securing by drawer removal. - Page 9 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hoses - 78 1/2” (2000mm) Drain hoses - 70 1/2” (1800mm) Inlet hose - 64 3/4” (1650mm) Inlet hose - 49” (1250mm) Power cord (excl.plug) - 29 1/2” (750mm) Power cord (excl.plug) - 27 1/2”...
- Page 10 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY Clip all four side mounting brackets optionally attach the When fitting brackets, two top mounting...
- Page 11 SECURE TO THE CABINETRY ON THE SIDES OPTIONALLY SECURE TO THE CABINETRY ABOVE The top mounting Open the brackets will only drawer halfway. bend upwards a (x2) Using a flat maximum of 10 mm. bladed Replace the grey screwdriver, rubber plug back into prise the grey the trim moulding rubber plug out...
- Page 12 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses optionally attach the Either sit the drawer down on the left hand two top mounting When fitting brackets, side (recommended) or rotate the drawer brackets ensure the ends are...
- Page 13 SECURE TO THE CABINETRY ON THE SIDES OPTIONALLY SECURE TO THE CABINETRY ABOVE The top mounting brackets will only bend upwards a (x2) maximum of 10 mm. For further adjustment, using the most appropriate length Hexagonal socket supplied, fully extend levelling feet up to required distance by hand.
- Page 14 FIT THE SUPPLIED TOEKICK PANEL Mounting rail Where the toekick meets the bottom of the tub is the cut-off point Lay the toekick face down on Turn the toekick over and Smooth the edges with a file. a chopping board or similiar score along the same line Be careful of sharp edges.
- Page 15 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. DRAINAGE OPTION 1 Dishwasher and Ø 1 1/2” (38 mm) Standpipe Screw Drain hose support to back wall at correct height. If space is limited for fixing, push hose through drain max.
- Page 16 DRAINAGE OPTION 2 Dishwasher using Dual Air Gap/Break with Drain Hose Joiner IMPORTANT! We recommend the use of a commercially available Dual (Double) Air Gap/Break Kit. This provides totally separate draining for each drawer and eliminates possible “cross draining” problems Drain hose Drain hose Secure both drain hoses...
- Page 17 DRAINAGE OPTION 3 Dishwasher using drain hose joiner onto sink trap/waste tee Supplied drain hose joiner to suit Screw Drain hose Ø 3/4” (19 mm) waste tee support to back wall at correct height. If space is limited for fixing, push max.
-
Page 18: Troubleshooting
CONNECT INLET HOSE TO HOT WATER SWITCH PRODUCT ON No leaks! Ensure the supplied rubber washer is Tighten coupling with spanner. fitted inside the coupling. TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault. See user guide ‘How to attend to a fault’) Check for a kinked drain hose, blocked or incorrectly drilled out waste connection, highloop not properly installed, drain hose not routed correctly or spray arms not in place. -
Page 19: Final Checklist
FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawers. You should hear a Check all parts are installed. beep and see a program indicator light up on the internal control panel. Ensure that all panels and parts thereof are secure and final electrical tests have Check the spray arms are in place, mounted correctly and free to rotate, by been conducted in accordance with local electrical regulations. - Page 20 SINGLE DISHDRAWER™ DISHWASHER DD24SDFT & DD24SV2T models INSTALLATION GUIDE US CA 591385C 05.19...
- Page 21 SAFETY AND WARNINGS IMPORTANT SAFETY INSTRUCTIONS WARNING! Electrical Shock Hazard Installation of this dishwasher requires basic mechanical and electrical skills. Before installing the dishwasher, remove the house fuse or open the circuit Be sure to leave these Instructions with the Customer. breaker.
- Page 22 PARTS SUPPLIED Drain hose Drain hose Wire clip (1) Clamp (1) Side mounting Top mounting support (1) joiner (1) (for securing (for securing bracket kit brackets (2) Drain hose joiner) Drain hose joiner) (A and B) (2) OPTIONAL OPTIONAL Edge Protector (1) Phillips 1 1/2”...
- Page 23 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION REMOVE THE DRAWER REMOVE THE ACCESS COVER & REMOVE POWER CORD To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal. Clip Clip Access cover...
- Page 24 OPTIONALLY HARD WIRING PRIOR TO INSTALLATION TERMINATE MAINS WIRING AS SHOWN AND REPLACE MODULE AND COVERS Fit a suitable cable clamp for the conduit through the metal knockout. Ensure wiring is routed through or under under housing ribs. Screw down the Live, Neutral and Earth wires correctly.
- Page 25 PRODUCT DIMENSIONS Handles may vary FRONT PROFILE DD24SDFT DD24SV2T PRODUCT DIMENSIONS INCHES (MM) INCHES (MM) Overall height of product 18 13/16” (478) 17 7/8” (454) Overall width of product 23 9/16” (599) 23 13/16” (605) Overall depth of product 22 9/16” (573) 22 3/4”...
- Page 26 CABINETRY DIMENSIONS Bracket slots PLAN PROFILE DD24SDFT DD24SV2T CABINETRY DIMENSIONS INCHES (MM) INCHES (MM) Inside height of cavity 18 7/8” (480) 17 15/16” (456) Minimum clearances from adjacent cabinetry Inside width of cavity 23 5/8” (600) 24” (610) Inside depth of cavity min.
- Page 27 CAVITY PREPARATION COUNTERTOP Moisture 3/8” protection tape (10 mm) must be applied Water Connection Recommended HOT (Maximum 140°F/60°C). These marks indicate formed bracket screw locations, if Supplied hose to suit securing by drawer removal. 3/8” (9 mm) male compression fitting. Ø...
- Page 28 MAXIMUM DISTANCE OF HOSES & CORD FROM CHASSIS EDGE LEFT HAND SIDE RIGHT HAND SIDE Drain hose - 78 1/2” (2000 mm) Drain hose - 70 1/2” (1800 mm) Inlet hose - 64 3/4” (1650 mm) Inlet hose - 49” (1250 mm) Power cord (excl.plug) - 78 1/2”...
- Page 29 NOW CHOOSE WHICH INSTALLATION METHOD (A) OR (B) IS MORE SUITABLE FOR YOUR CABINETRY... RECOMMENDED METHOD (A) - SECURE WITHOUT DRAWER REMOVAL (FRAMELESS CABINETRY ONLY) ATTACH SIDE MOUNTING BRACKETS PULL THROUGH HOSES & PUSH INTO THE CAVITY Clip all four side mounting brackets into their slots using a flat-bladed screwdriver.
- Page 30 SECURE TO THE CABINETRY ON THE SIDES Open the drawer halfway. Using a flat bladed screwdriver, prise the grey rubber plug out of the trim moulding. Replace the grey rubber plug Using a small Philips screwdriver, screw back into the trim moulding through the trim moulding, securing the and ensure the trim seal is side mounting bracket to the cabinetry.
- Page 31 ALTERNATIVE METHOD (B) - SECURE BY DRAWER REMOVAL PULL THROUGH HOSES & PUSH INTO THE CAVITY REMOVE THE LOWER DRAWER To prevent kinked hoses Either sit the drawer down on the left hand side (recommended) or rotate the drawer clockwise, resting it on its side after removal. Push drawer runners back in on either side.
- Page 32 SECURE TO THE CABINETRY ON THE SIDES The product has three pairs of fixing points: Ensure the sound insulation is repositioned correctly. a pair of fixing two pairs of formed holes either side brackets on either side on the bottom of the chassis (use 1 1/2”...
- Page 33 THERE ARE THREE DIFFERENT PLUMBING AND DRAINAGE OPTIONS. CHOOSE WHICH IS MORE SUITABLE. DRAINAGE OPTION 1 Dishwasher and Ø 1 1/2” (38 mm) Standpipe Screw Drain hose support to back wall at correct height. If space is limited for fixing, push max.
- Page 34 DRAINAGE OPTION 2 Dishwasher using Air Gap/Break with Drain Hose Joiner Secure drain hose to drain hose joiner and secure to Air Gap/Break 37 3/8” (950mm) Max. height to top step 14 of Air Gap/Break (countertop or wall mounted) min. R 8” (200mm) IMPORTANT! Ensure that drain connection...
- Page 35 DRAINAGE OPTION 3 Dishwasher using drain hose joiner onto sink trap/waste tee Screw Drain hose Supplied drain hose joiner to suit support to back wall Ø 3/4” (19 mm) waste tee at correct height. If space is limited for fixing, push hose through drain max.
- Page 36 CONNECT INLET HOSE TO HOT WATER SWITCH PRODUCT ON No leaks! Ensure the supplied Tighten coupling rubber washer is with spanner. fitted inside the coupling.
- Page 37 TROUBLESHOOTING Excessive water remaining above the filter plate, after the rinse cycle. (This is displayed as an A3 fault. See user guide ‘How to attend to a fault’) Check for a kinked drain hose, blocked or incorrectly drilled out waste connection, highloop not properly installed, drain hose not routed correctly or spray arms not in place.
- Page 38 FINAL CHECKLIST TO BE COMPLETED BY THE INSTALLER Turn on the power and water supplies, then open the drawer. You should hear a Check all parts are installed. beep and see a program indicator light up on the control panel. Ensure that all panels and parts thereof are secure and final electrical tests have Check the spray arm is in place, mounted correctly and free to rotate, by physically been conducted in accordance with local electrical regulations.
