Enerpac XC Series Instruction Sheet

POWERFUL SOLUTIONS. GLOBAL FORCE.
L4140 Rev. B
Index:
English. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-6
Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-24
Português/Brasil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25-35
1.0 IMPORTANT RECEIVING INSTRUCTIONS
Visually inspect all components for shipping damage. Shipping
damage is not covered by warranty. If shipping damage is found,
notify carrier at once. The carrier is responsible for all repair and
replacement costs resulting from damage in shipment.
2.0 SAFETY
2.1 Introduction
Read all instructions carefully. Follow all recommended safety
precautions to avoid personal injury as well as damage to the pump
and/or damage to other property. Enerpac cannot be responsible
for any damage or injury from unsafe use, lack of maintenance
or incorrect operation. Do not remove warning labels, tags, or
decals. In the event any questions or concerns arise, contact
Enerpac or a local Enerpac distributor for clarifi cation.
If you have never been trained on high-pressure hydraulic safety,
consult your distributor or service center for a free Enerpac
Hydraulic Safety Course.
This manual follows a system of safety alert symbols, signal
words and safety messages to warn the user of specifi c hazards.
Failure to comply with these warnings could result in death or
serious personal injury, as well as damage to the equipment or
other property.
The Safety Alert Symbol appears throughout this
manual. It is used to alert you to potential physical
injury hazards. Pay close attention to Safety Alert
Symbols and obey all safety messages that follow this symbol to
avoid the possibility of death or serious personal injury.
Safety Alert Symbols are used in conjunction with certain Signal
Words that call attention to safety messages or property damage
messages and designate a degree or level of hazard seriousness.
The Signal Words used in this manual are DANGER, WARNING,
CAUTION and NOTICE.
Indicates a hazardous situation that, if not
DANGER
avoided, will result in death or serious personal
injury.
Indicates a hazardous situation that, if not
WARNING
avoided, could result in death or serious
personal injury.
Indicates a hazardous situation that, if not
CAUTION
avoided, could result in minor or moderate
personal injury.
06/15
Instruction Sheet

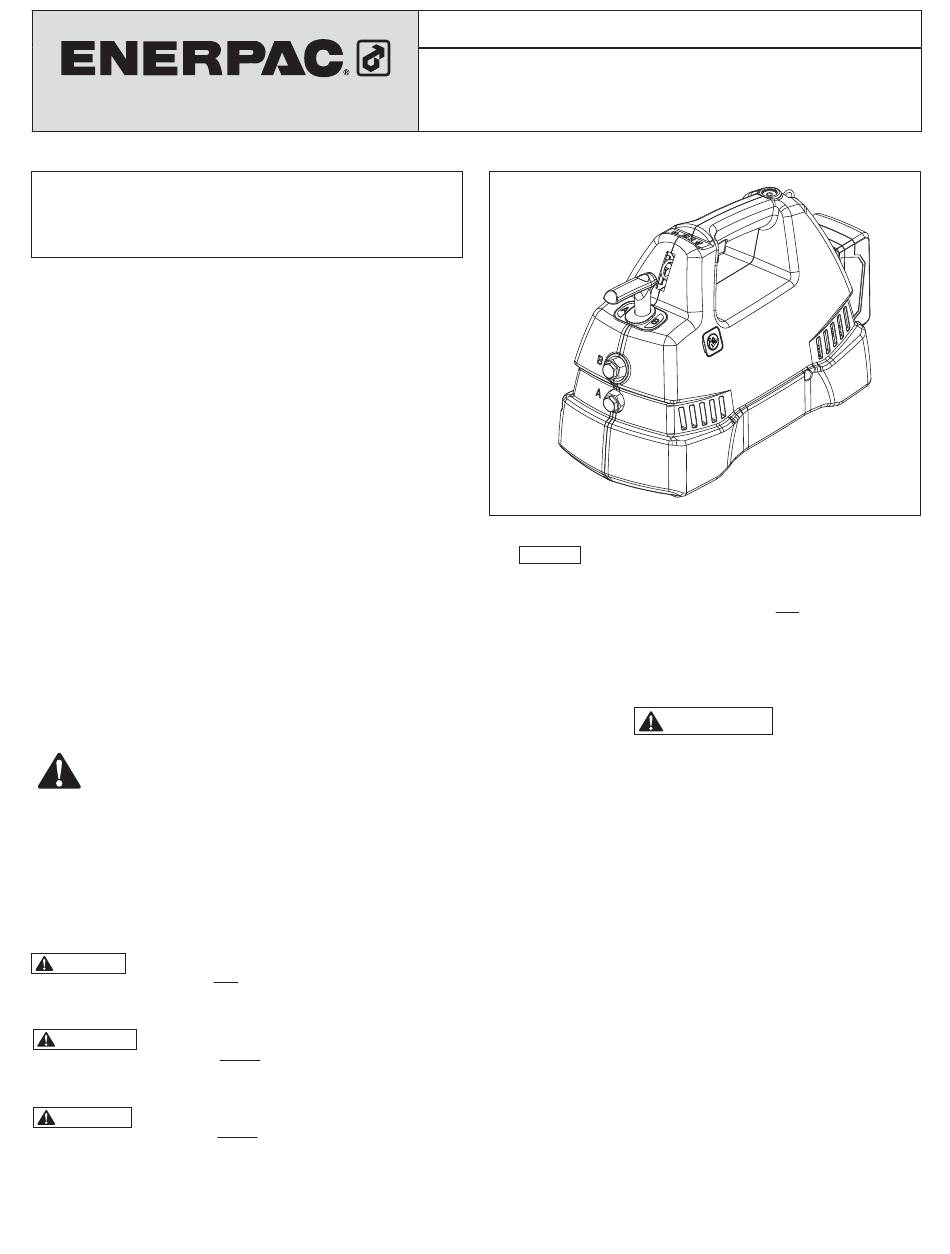

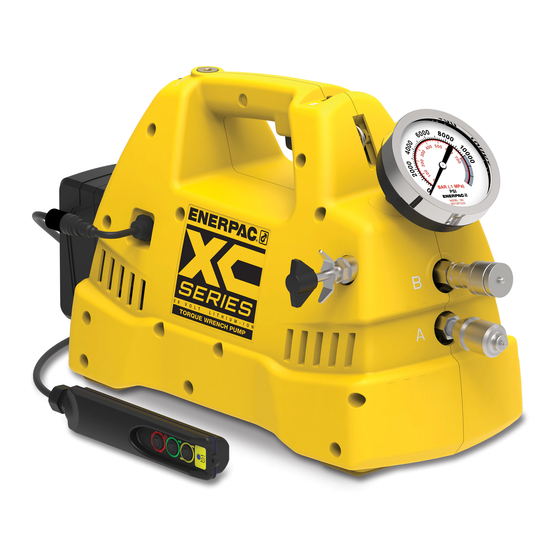

XC Series Cordless Hydraulic Pump
2500 psi [172 bar] • Model 150-4501
Indicates information considered important,
NOTICE
but not hazard related (e.g. messages relating
to property damage). Please note that the
Safety Alert Symbol will not be used with this
signal word.
2.2 General Hydraulic Safety Precautions
Failure to observe and comply with the following precautions
could result in death or serious personal injury. Property
damage could also occur.
• Do not remove or disable the pump relief valve.
• Never set an external relief valve to a higher pressure than the
maximum rated pressure of the pump.
• Stay clear of loads supported by hydraulics. To avoid personal
injury, keep hands and feet away from cylinder and work piece
during operation.
• Do not handle pressurized hoses. Escaping oil under pressure
can penetrate the skin. If oil is injected under the skin, see a
doctor immediately.
• A cylinder when used as a load lifting device, should never be
used as a load holding device. After the load has been raised
or lowered, it always must be blocked mechanically.
• Do not pressurize disconnected couplers.
• Only use hydraulic cylinders in a coupled system. Never use
a cylinder with uncoupled couplers. If the cylinder becomes
extremely overloaded, components can fail catastrophically,
causing severe personal injury.
• Use only rigid pieces to hold loads. Carefully select steel or
wood blocks that are capable of supporting the load. Never
use a hydraulic cylinder as a shim or spacer in any lifting or
pressing application.
1
WARNING
