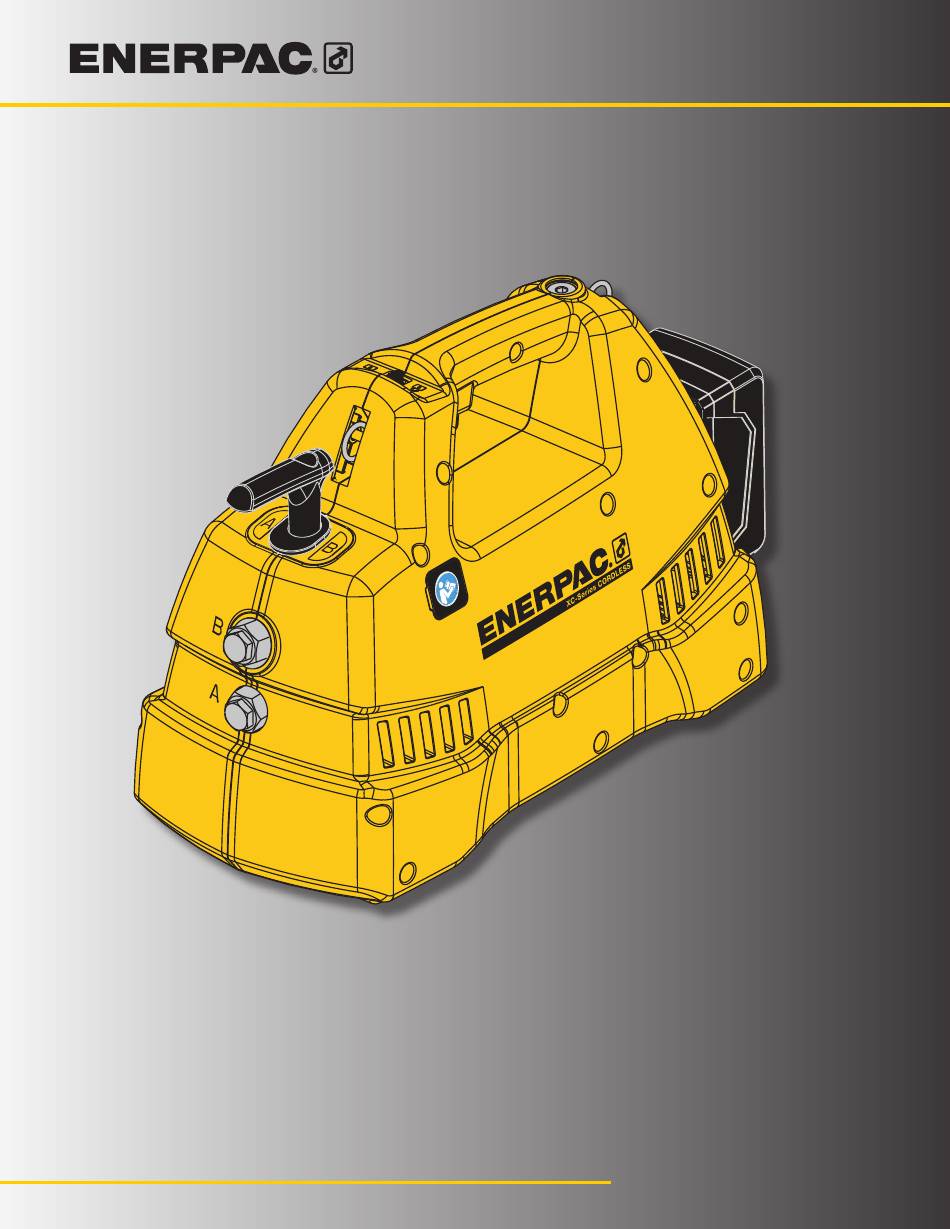

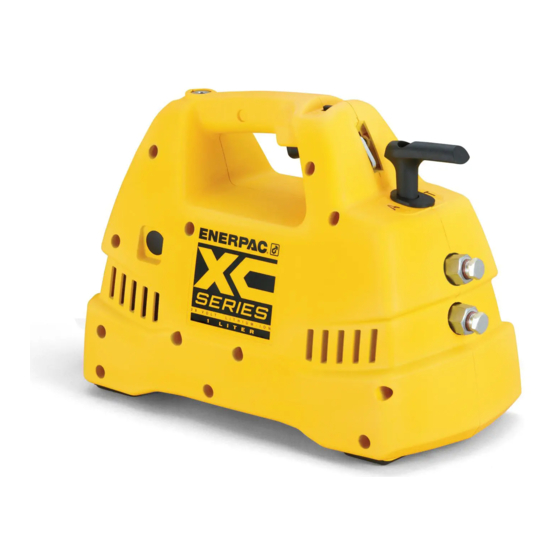

- Page 1 XC-1400 Series L4146 Rev. B 11/19 Cordless Electric Pump Models: • XC-1401MB • XC-1402MB • XC-1401ME • XC-1402ME • XC-1401M • XC-1402M English (EN) Instruction Sheet...
-
Page 3: Table Of Contents
6.0 BATTERY PACK ..........9 8.5 Relief Valve Pressure Adjustment ..13 6.1 Battery Pack Fuel Gauge ..... 9 9.0 TROUBLESHOOTING ........14 6.2 Battery Pack Installation Troubleshooting Guide ......15 and Removal ......... 9 Instruction Sheet © 2019 Enerpac, All Rights Reserved... -
Page 4: Safety
• Stay clear of loads supported by hydraulics. To avoid personal If you have never been trained on high-pressure hydraulic safety, injury, keep hands and feet away from cylinder and work consult your distributor or service center for a free Enerpac piece during operation. Hydraulic Safety Course. -
Page 5: Battery Operated Pump Safety Precautions
Property battery pack. damage could also occur. • Use the Enerpac XC-1400 Series pump only with MILWAUKEE • Do not use or repair damaged hydraulic hose. Avoid sharp Li-Ion battery packs. Use of any other battery packs ™... -
Page 6: Product Data
Battery Charger, M28™, 230 VAC, 50/60 Hz input XC230VC C28C Battery Pack, M28™ Lithium-Ion, 28 Volt, 3.0 Ah XC28V 48-11-2830 Battery packs and chargers can be purchased from an Enerpac distributor or from a Milwaukee Electric Tool retailer. 2.2 Pressure and Flow Graphs 2.33 2.00 1.66 1.33 1.00... -
Page 7: External Dimensions
Power is supplied by a rechargeable 28 volt Lithium-Ion battery Designed especially for use with double-acting hydraulic pack manufactured by Milwaukee Electric Tool Corporation. cylinders and tools, the XC-1400 Series consists of a 1/2 hp This is the same series battery pack used with numerous M28™... -
Page 8: Additional Information - Battery Pack And Charger
Figure 2, Battery Pack and Charger, M28™ Series (Manufactured by Milwaukee Electric Tool Corp.) 3.2 Additional Information - Battery Pack and 3.4 Electromagnetic Compatibility (EMC) Charger The XC-1400 Series cordless pump has been tested and certified to conform to CE-EMC emission and immunity standards and “M28 ”, “M28 REDLITHIUM ”... -
Page 9: Battery Pack
As hoses, components and fittings When fuel gauge button Percent Charge: are assembled, apply 1-1⁄2 wraps is pressed: (approximate) of thread sealing tape to all (see Fig. 6) threaded NPT or NPTF fittings, Lights 1, 2, 3 and 4 ON 78 - 100% leaving the first complete thread Lights 1, 2 and 3 ON... -
Page 10: Operation
7.0 OPERATION 7.3 Starting and Stopping the Pump Motor A trigger switch is used to control the pump motor. 7.1 Before Start-up See Figure 9. Check all hydraulic fittings and connections to be sure they Be sure that the trigger lock is in the unlocked position. are tight and leak free. -
Page 11: Control Valve Operation
A - Advance Neutral B - Retract Figure 10, Control Valve Positions 7.5 Control Valve Operation To prevent battery pack shut-off from occurring, reduce the amount of load on the cylinder or tool (if possible) or release the The control valve is operated by a rotary lever at the front of the trigger switch. -
Page 12: Transporting The Pump
Be sure hydraulic cylinder or other tool is fully retracted. Rotate the control valve lever back and forth several times • Use only Enerpac HF hydraulic oil. Refer to Section 8.2. between the “A” and “B” positions to remove any trapped •... -
Page 13: Oil Change
“A” port with a metal plug or Reinstall the battery pack. closed coupler. 13. Slowly fill the reservoir with new Enerpac oil. Refer to 8.4 Oil Change Section 8.2 for hydraulic oil requirements and Section 8.3 Change the hydraulic oil in the pump reservoir at least once for detailed oil fill instructions. -
Page 14: Troubleshooting
• If the pressure setting shown on the gauge is correct for your For repair service, contact your nearest Enerpac Authorized application, and the cylinder or tool being used, skip step 11 Service Center. Only an Enerpac Authorized Service Center and go to step 12. -
Page 15: Troubleshooting Guide
Battery pack shut-off. Refer to Milwaukee Electric Tool battery/charger instruction manual. e. Motor brushes worn. Contact Enerpac Authorized Service Center. f. Trigger lock engaged. Move trigger lock to the unlocked position. g. Motor damaged. Contact Enerpac Authorized Service Center. - Page 16 www.enerpac.com...
