Hardware Description

• X-NUCLEO-NFC05A1 is an NFC card reader expansion
board based on ST25R3911B for STM32MP1, STM32 and
STM8 based platforms
• STM32MP157F-DK2
capabilities of STM32MP1 series microprocessors to allow
users easily develop applications using STM32 MPU
OpenSTLinux distribution software
Key Products on board
STM32MP157F
Microprocessor
ST25R3911B
High performance HF reader / NFC initiator
Discovery kit leverages the
X-NUCLEO-NFC05A1
X-LINUX-NFC5

Hardware Overview

Arduino
connectors

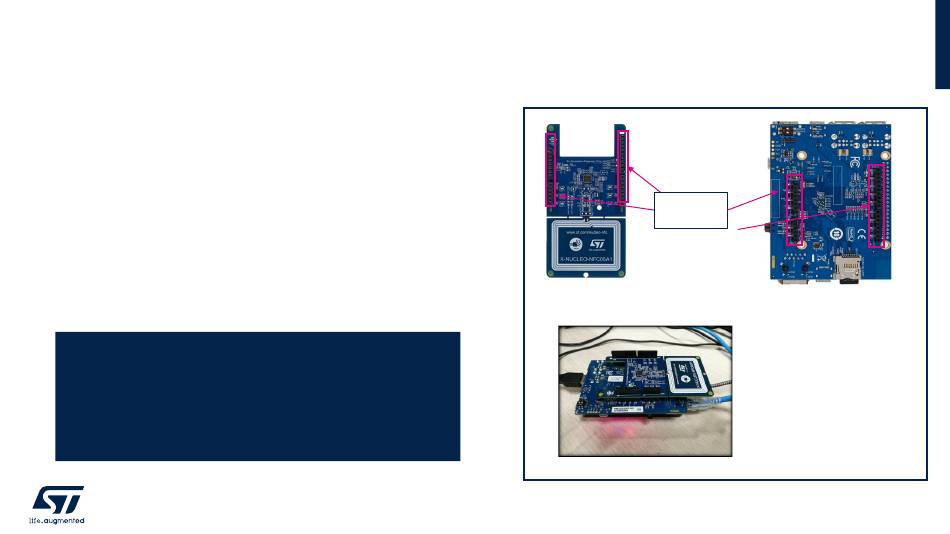

View of connectors
on the board
STM32MP157F-DK2
X-NUCLEO-NFC05A1
board plugged over
STM32MP157F-DK2
