- Page 1 User manual ATEOxM audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. REV-1.3...
- Page 3 Table of contents Introduction Bright sound, effortless installation � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 04 Precautions Chapter 1 CleverMount+™...

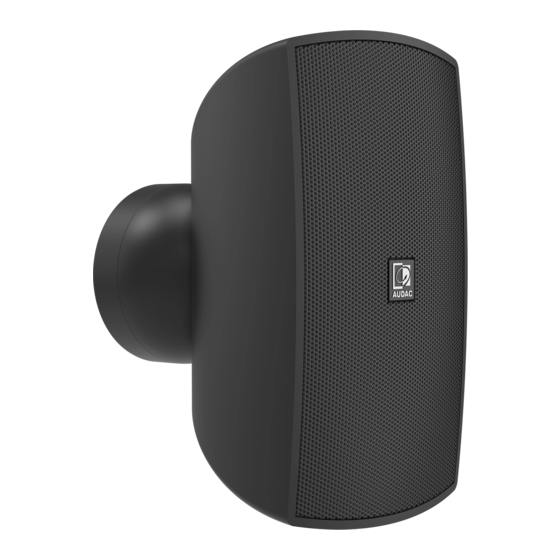

- Page 4 Introduction Bright sound, effortless installation The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs. The ATEOxM ensures a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response.
- Page 5 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS. NEVER THROW THEM AWAY ALWAYS HANDLE THIS UNIT WITH CARE HEED ALL WARNINGS FOLLOW ALL INSTRUCTIONS NO NAKED FLAME SOURCES, SUCH AS LIGHTED CANDLES, SHOULD BE PLACED ON THE APPARATUS DO NOT STICK ANY OBJECTS THROUGH THE VENTILATION OPENINGS.
- Page 6 Chapter 1 CleverMount+™ Thanks to the patented CleverMount+™ mounting technology these loudspeakers have the advantage of making the speaker cabinet flow together with the mounting bracket providing a great ease for installing the loudspeaker in one good-looking entity. A safe installation of the loudspeaker is acquired thanks to the separate bracket base.
- Page 7 Chapter 2 Installing ATEOxM With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall plate to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & power configuration, the ATEOxM loudspeakers come with an external power tap selection rotary switch located on the rear of the speaker.
- Page 8 3) Set the external power tap selection on ATEOxM (not for ATEOxDM) The ATEOxM can be connected in low impedance (8 Ω) or high impedance (70/100V) systems. For use in high impedance (70/100V) systems, various power tappings can be selected. Depending on whether the speaker will be used in LO-Z or 70/100V applications, the ATEOxM has an integrated external power tap selector hidden on the rear which is protected by a plastic cap.
- Page 9 4) Mount ATEOxM on CleverMount+™ CleverMount+™ mounting system provides great ease of installing the ATEOxM. Secure and safe installation of the speaker is ensured thanks to the separate bracket base. Installation is described below in 5 steps. Step 1 ATEOxM has two connection latches on it and those connection latches should be placed to attachment points CleverMount+™...
- Page 10 The last step in the mounting procedure of the speaker is pointing it in the desired direction by untightening the Allen-key bolt located in the centre of the speaker grill. The AUDAC logo comes separately to be placed in the centre of the speaker grill after the positioning of the ATEOxM. After this bolt is untightened by a few turns, the speaker will be in a free state, making it possible to move it into the left (30°), right (30°), up (5°)
- Page 11 Technical specifications ATEO4M ATEO6M Peak Power handling 140W 240W Program Power handling 120W RMS/AES power handling Nominal impedance Ω Sensitivity 1W/1m 86 dB 89 dB Sound pressure Max W/1m 101 dB @ 8 Ω 106 dB @ 8 Ω 100 dB @ 100V 105 dB @ 100V Frequency response ±...
- Page 12 Dimensions (w x h x d) 136 x 244 x 153 mm 193.1 x 347.5 x 215.2 mm Weight 1.75 kg 3.47 kg Included accessories 2 x Allen-key wrench Optional accessories WMP40M WMP60M WMA40M WMA60M RMA45M Discover more on audac.eu...
