- Page 1 User manual AWP06 audac.eu...
- Page 2 This manual is put together with much care, and is as complete as could be on the publication date. However, updates on the specifications, functionality or software may have occurred since publication. To obtain the latest version of both manual and software, please visit the Audac website @ www.audac.eu. AWP06 - User manual...
-
Page 3: Table Of Contents
Connections � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 09 Technical specifications Notes AWP06 - User manual... - Page 4 AWP06 - User manual...
-
Page 5: Introduction

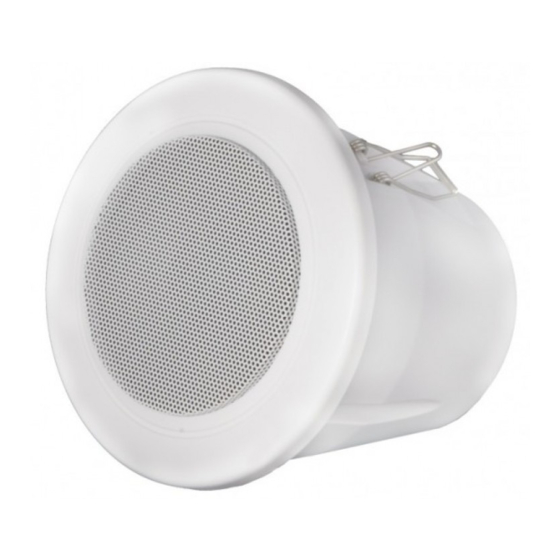

Waterproof ceiling speaker The AWP06 is a waterproof ceiling speaker with a power of 6 Watt, which meets the IP65 standard. It is designed to be used in a wide variation of in- and outdoor applications and damp locations and features a 4” loudspeaker. Due to its wide smooth frequency response and high efficiency, it ensures high-fidelity music reproduction and intelligible speech at very low distortion. -
Page 6: Precautions
Refer all servicing to qualified personnel. Opening the chassis for any reason will void the manufacturer’s warranty. Do not get the unit wet. If liquid is spilled on the unit, shut it off immediately and take it to a dealer for service. Disconnect the unit during storms to prevent damage. AWP06 - User manual... - Page 7 Please dispose this product at your local collection point or recycling centre for electrical and electronic waste. This will make sure that it will be recycled in an environmentally friendly manner, and will help to protect the environment in which we all live. AWP06 - User manual...
-
Page 8: Installation
When the speaker is mounted, push both springs downwards to lock the speaker in in place. Once the springs are pushed down, the speaker will place itself properly in line with the panel. In this image the AWP06 speaker is locked tightly and ready for use. -
Page 9: Connections
Be sure that you use the following polarities for your speaker cable, when using several speakers in the same location: Red: Negative or common Black: Positive The total rated input of all connected speakers may not exceed the amplifiers output. AWP06 - User manual... -
Page 10: Technical Specifications
3 W / 3333 Ohm 1.5 W / 6666 Ohm 140 x 148.5 mm Dimensions (Ø x D) Built-in depth 148.5 mm Cut-out measurement 125 mm (Ø) Weight 0.79 kg Operating temperature -20°C ~ 60°C Construction Colours White (RAL9010) AWP06 - User manual... - Page 11 Notes AWP06 - User manual...
- Page 12 Discover more on audac.eu...
