BLANCOTHERM 320 KB/320 KBR
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLANCOTHERM 320 KB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blanco BLANCOTHERM 320 KB

Summary of Contents for Blanco BLANCOTHERM 320 KB

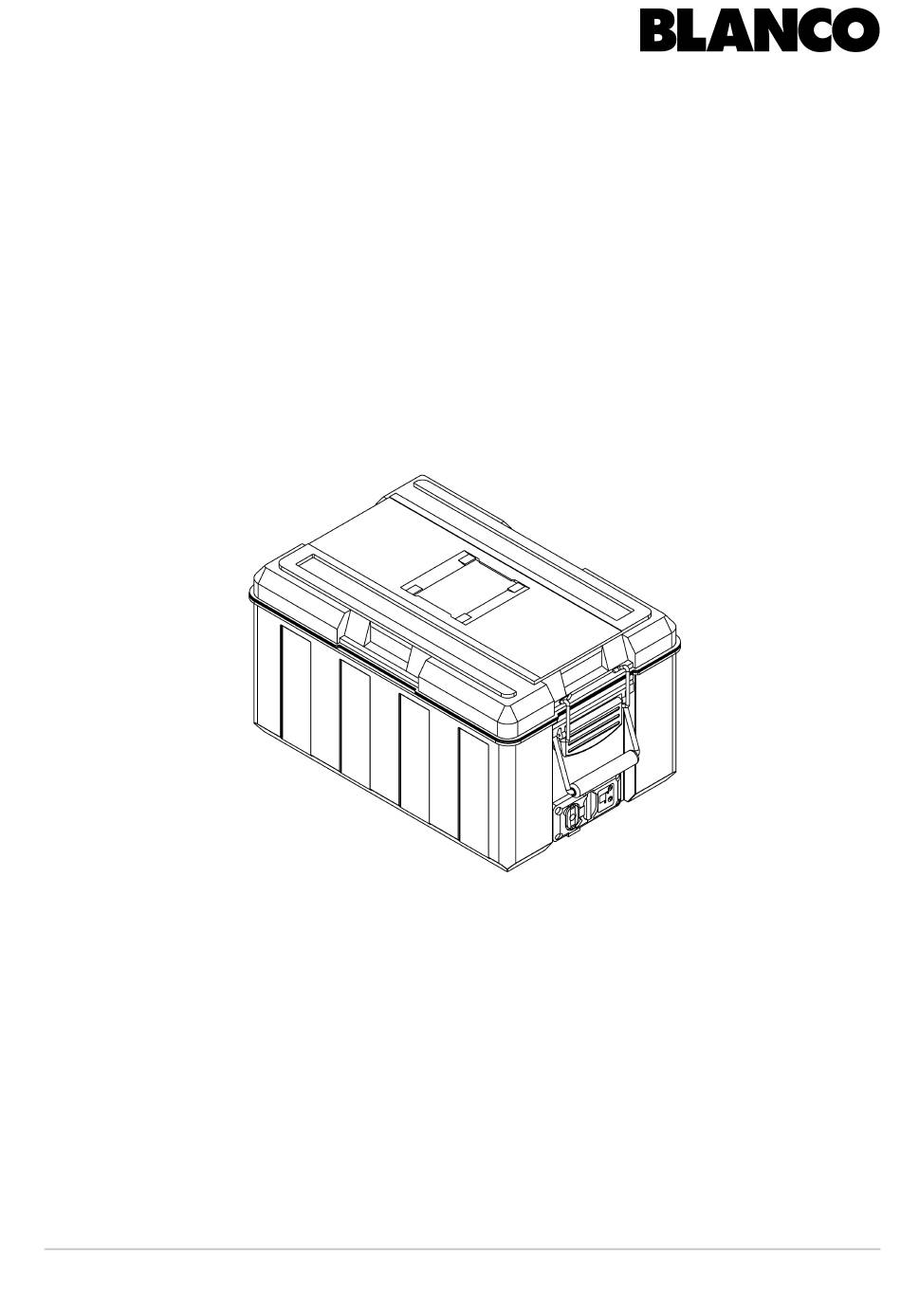

  • Page 1 BLANCOTHERM 320 KB/320 KBR Operating Instructions...
  • Page 2 BLANCOTHERM 320 KB/320 KBR General information Warranty This unit was manufactured with care using high-quality materials and mod- ern production techniques. The period of warranty from the date of purchase for this unit is 24 months and for wearing parts and electrical parts six months. The warranty encom- passes all the malfunctions and faults arising through the material and man- ufacturing.

  • Page 3: Table Of Contents

    BLANCOTHERM 320 KB/320 KBR Contents About this product Application ..........1 Conditions of use .
  • Page 4 BLANCOTHERM 320 KB ........

  • Page 5: Application

    The BLANCOTHERM 320 KB/320 KBR was not designed for heating up or cooking food. The BLANCOTHERM 320 KB/320 KBR may not be used as a room heater. The BLANCOTHERM 320 KB/320 KBR is particularly suitable for use in social facilities (clinics, retirement homes, day care centers), hotels, the food service industry (banquets, party services) and in cafeterias (canteens, dining halls).
  • Page 6 Wear-resistant carrying handles made of stainless steel are attached to the short sides of the unit. The cover of the BLANCOTHERM 320 KB/320 KBR is equipped with a menu holder. The contents of the unit, for example, can be written on the menus.

  • Page 7: Transportation

    BLANCOTHERM 320 KB/320 KBR Safety General information The unit has been built using state-of-the-art technology. Accordingly, all the requirements necessary for safe operation have been fulfilled. Additional dan- gers do nevertheless exist when the unit is operating. The safety precautions and warnings in these operating instructions are there to help you protect yourself against these sources of danger.

  • Page 8: Operation

    Damage The unit is only to be used when it is in proper working order. If the unit is damaged, secure it against being used and notify BLANCO Service immediately. Hygiene regulations Observe the corresponding regulations on foodstuffs and the properties of the food when maintaining the temperature of food.
  • Page 9 BLANCOTHERM 320 KB/320 KBR Operation If the unit is operated with the cover open for an extended period, a large amount of heat is lost. Operate the unit only with the cover closed. A unit con- nected to the power supply may only be opened briefly to place food inside or to remove food.

  • Page 10: Cleaning And Care

    BLANCOTHERM 320 KB/320 KBR Cleaning and care Hygiene The provisions of the hygiene guidelines 93/43/EEC as well as your national hygiene regulations must be complied with. Cleaning frequency Clean the unit after each use. Cleaning methods Use only approved cleaning methods.

  • Page 11: Maintenance

    BGV A 2 or the corresponding national regulations. Repairs Authorized persons The unit may only be repaired by professionals trained by BLANCO. Notify BLANCO Service in case of damage. The warranty will be invalidated if the unit is repaired by anyone else.

  • Page 12: Transportation

    Retain the unit and notify BLANCO of the damages with the waybill. – or – Do not accept the unit and return it to BLANCO via the carrier. This procedure will ensure correct processing of claims. If transportation damage is reported later the consignee must provide evidence of this.

  • Page 13: Startup

    BLANCOTHERM 320 KB/320 KBR Startup Prerequisites for operation The unit has no known defects or visible damage Connecting the unit The unit does not have an "On/Off" switch. The unit is "switched on" by connecting it to the power supply.
  • Page 14 BLANCOTHERM 320 KB/320 KBR BLANCOTHERM 320 KB Plug the power plug into the electrical outlet. The operation indicator LED illuminates and signals that the unit is con- nected to the power supply. BLANCOTHERM 320 KBR The factory setting of the unit is "Full Power" mode (FP). The unit reaches the maximum temperature (approx.

  • Page 15: Operation

    BLANCOTHERM 320 KB/320 KBR Operation Unit overview (1) Unit plug (2) Power cable (3) Power plug (4) Sealing cap; unit socket is located behind this (5) Recessed area for the sealing cap when folded out (6) Plug recess (7) On the plug recess:...

  • Page 16: Overview Of Temperature Regulation

    BLANCOTHERM 320 KB With the BLANCOTHERM 320 KB, the setpoint temperature is fixed at +90 °C. Instead of the temperature display and buttons, these units fea- ture a film layer with an operation indicator LED. This LED illuminates con- tinuously as long as the unit is connected to the power supply.

  • Page 17: Loading Types - Overview

    BLANCOTHERM 320 KB/320 KBR BLANCOTHERM 320 KBR (1) Temperature display: when the unit is switched on, the actual tempera- ture inside the unit is displayed. The setpoint temperature is displayed when a button is pressed. (2) "up" button: raises the setpoint temperature (press repeatedly or hold down for several seconds).

  • Page 18: Displaying The Setpoint Temperature

    (e. g. hot dogs) will be placed Food loaded directly into the unit is heated to the fixed specified temper- ature (BLANCOTHERM 320 KB) or the set temperature (BLANCOTHERM 320 KBR). This must be taken into account with sen- sitive foods (e.

  • Page 19: Setting The Setpoint Temperature

    BLANCOTHERM 320 KB/320 KBR Setting the setpoint BLANCOTHERM 320 KBR temperature The lowest temperature setting is +40 °C, and the highest FP (Full Power), which corresponds to a temperature of approx. +98 °C. While the setpoint temperature is being set, the unit switches off heating automatically.

  • Page 20: Opening The Cover

    BLANCOTHERM 320 KB/320 KBR Opening the cover Open both locking levers until the locking latches disengage. Remove cover from unit body. Closing the cover Place cover on the unit body. Hook the locking latches on both sides (1.) and close the locking levers (2.).

  • Page 21: Dry Loading The Unit

    BLANCO recommends operating the unit at "Full Power" (FP) with dry loading. Section "Setting the setpoint temperature" on page 15.
  • Page 22 GN 2/4, GN 1/4 and GN 1/6. Support crossbars can be ordered as accessories from BLANCO (for order number see BLANCO price list). Loading example with one support crossbar crosswise: one GN 1/2 Gastronorm container and two GN 1/4 Gastronorm containers.

  • Page 23: Wet Loading The Unit

    An explanation of the loading types can be found following the unit overview: Section "Loading types - Overview" on page 13. BLANCO recommends loading with Gastronorm containers made of stainless steel (good heat distribution in comparison with Gastronorm containers made of plastic).
  • Page 24 GN 2/4, GN 1/4 and GN 1/6. Support crossbars can be ordered as accessories from BLANCO (for order number see BLANCO price list). Loading example with one support crossbar crosswise: one GN 1/2 Gas- tronorm container and two GN 1/4 Gastronorm containers.

  • Page 25: Direct Loading The Unit

    BLANCOTHERM 320 KB/320 KBR Insert the corresponding support crossbar or crossbars as is necessary. Insert the Gastronorm containers in the stainless-steel basin. Close the cover of the unit with the locking levers. Section "Closing the cover" on page 16. Direct loading the unit...

  • Page 26: Moving The Unit To A New Location

    Up to three units may be stacked one on top of another during a location change. Stacked units must always be secured against tipping during the location change. BLANCO offers several different transport carts (BTT, ROLLI, ROL) for the unit. If a portable support (e. g. transport cart) is used to change the location of a unit or max.
  • Page 27 BLANCOTHERM 320 KB/320 KBR Warning! Overflowing hot liquid! The unit cover does not seal completely when closed. When the stainless-steel basin is filled with liquid (wet loading or direct load- ing), hot steam or hot liquid could exit between the edge of the stainless-steel basin and the cover during a change of location.

  • Page 28: Temperature Maintenance Of Food

    BLANCOTHERM 320 KB/320 KBR Temperature maintenance The unit can maintain the temperature of food for an extended period of of food time even if it is unplugged, as the unit is well insulated. Observe the corresponding regulations on foodstuffs and the properties of the food when maintaining the temperature of food.

  • Page 29: Using The Unit At A Food Distribution Container

    Do not keep the unit cover open when it is connected to the power supply The unit connected to the power supply should only be opened briefly to place food inside or to remove food The BLANCO distribution carts ROLA and BTA can be used for food distribution. – 25 –...

  • Page 30: Shutting Down

    BLANCOTHERM 320 KB/320 KBR Shutting down Shutting the unit down Unplug the power plug. Unplug the unit plug. Store the power cable in a suitable place and protect it from moisture. Seal the unit socket with the sealing cap. Seal the locking cap watertight by turning the locking grip clockwise.

  • Page 31: Help In The Event Of Problems

    BLANCOTHERM 320 KB/320 KBR Help in the event of problems LED/Temperature display does not illuminate Cause Action Surrounding area is too bright. Darken the area around the LED/ temperature display. If the problems persists, check other causes. Power plug and/or unit plug is Insert the power plug and/or unit plug not plugged in.

  • Page 32: Temperature Display Illuminates, But Food Temperature Is Not

    BLANCOTHERM 320 KB/320 KBR Temperature display BLANCOTHERM 320 KBR illuminates, but food temperature is not (adequately) Cause Action maintained Cold food inserted. Place only hot food in the unit. Unit/food not covered. Cover Gastronorm containers with Gastronorm container covers. Close the unit with the unit cover.

  • Page 33: Temperature Display Shows The Hi Fault Message

    BLANCOTHERM 320 KB/320 KBR Temperature display shows the BLANCOTHERM 320 KBR HI fault message Cause Action The temperature inside the unit Wait until the unit has cooled down. is over +99 °C. The temperature display automati- cally switches to the current actual temperature as soon as it is within display range.

  • Page 34: The Unit Has External Damage

    BLANCOTHERM 320 KB/320 KBR The unit has external damage Cause Action Damage during transport, Shut the unit down. change of location or other Chapter "Shutting down" on external influence. page 26. Secure the unit from being started up accidentally. Notify a facility authorized to carry out repairs.

  • Page 35: Cleaning And Care

    If necessary, the unit may be cleaned in a dishwasher. The temperature in the dishwasher may not exceed +90 °C. Any additional cleaning methods must be approved by BLANCO. The unit may not be submerged in liquid (e. g. water).

  • Page 36: Cleaning The Unit

    BLANCOTHERM 320 KB/320 KBR Cleaning the unit Unplug the power plug. Unplug the unit plug. Store the power cable in a suitable place and protect it from moisture. Seal the unit socket watertight with the sealing cap. Chapter "Shutting down" on page 26.

  • Page 37: Maintenance

    BLANCOTHERM 320 KB/320 KBR Maintenance Having the unit regularly BLANCO recommends regular maintenance of the unit by appropriately maintained trained professionals. Regular maintenance prevents failure of the unit, extends its operating life and generally contributes to its retaining value. Have maintenance performed on the unit regularly by appropriately trained professionals.

  • Page 38: Repairs

    BLANCOTHERM 320 KB/320 KBR Repairs Authorized persons The unit may only be repaired by professionals trained by BLANCO. Notify BLANCO Service in case of damage. Description of problem In order to describe the problem BLANCO Service requires the following information from the rating plate:...

  • Page 39: Disposal

    BLANCOTHERM 320 KB/320 KBR Disposal Disposing of the unit Make the unit unusable before disposing of it. Turn the unit over to a recycling center or electrical refuse collection site. More detailed information regarding disposal and the addresses of dis- posal facilities will be available from the respective public office (e.

  • Page 40: Technical Data

    BLANCOTHERM 320 KB/320 KBR Technical data General data Dimensions and weight Dimensions (L x W x H): 645 mm x 425 mm x 375 mm Empty weight: 13.5 kg Capacity: One Gastronorm container GN 1/1 – 200 or corresponding divisions...

  • Page 41: Operating Instructions

    BLANCOTHERM 320 KB/320 KBR Ordering information BLANCOTHERM 320 KB Article number: 566 242 BLANCOTHERM 320 KBR Article number: 572 228 Operating instructions Document number: 154 276 Accessories Menu set Article number: BLANCO price list Gastronorm container Article number: BLANCO price list...
  • Page 42 (Industrieverband Haus-, Heiz- und Küchentechnik e. V.)This mark documents the particularly high standard of the unit with regard to quality, service and ecology. DIN EN ISO 9001: BLANCO is certified in accordance with DIN EN ISO 9001. – 38 –...
  • Page 44 BLANCO CS GmbH + Co KG Catering Systems P.O. Box 13 10 75033 Oberderdingen GERMANY Phone + 49 7045 44 - 81416 + 49 7045 44 - 81508 E-mail cs.service@blanco.de Internet www.blanco.de...
