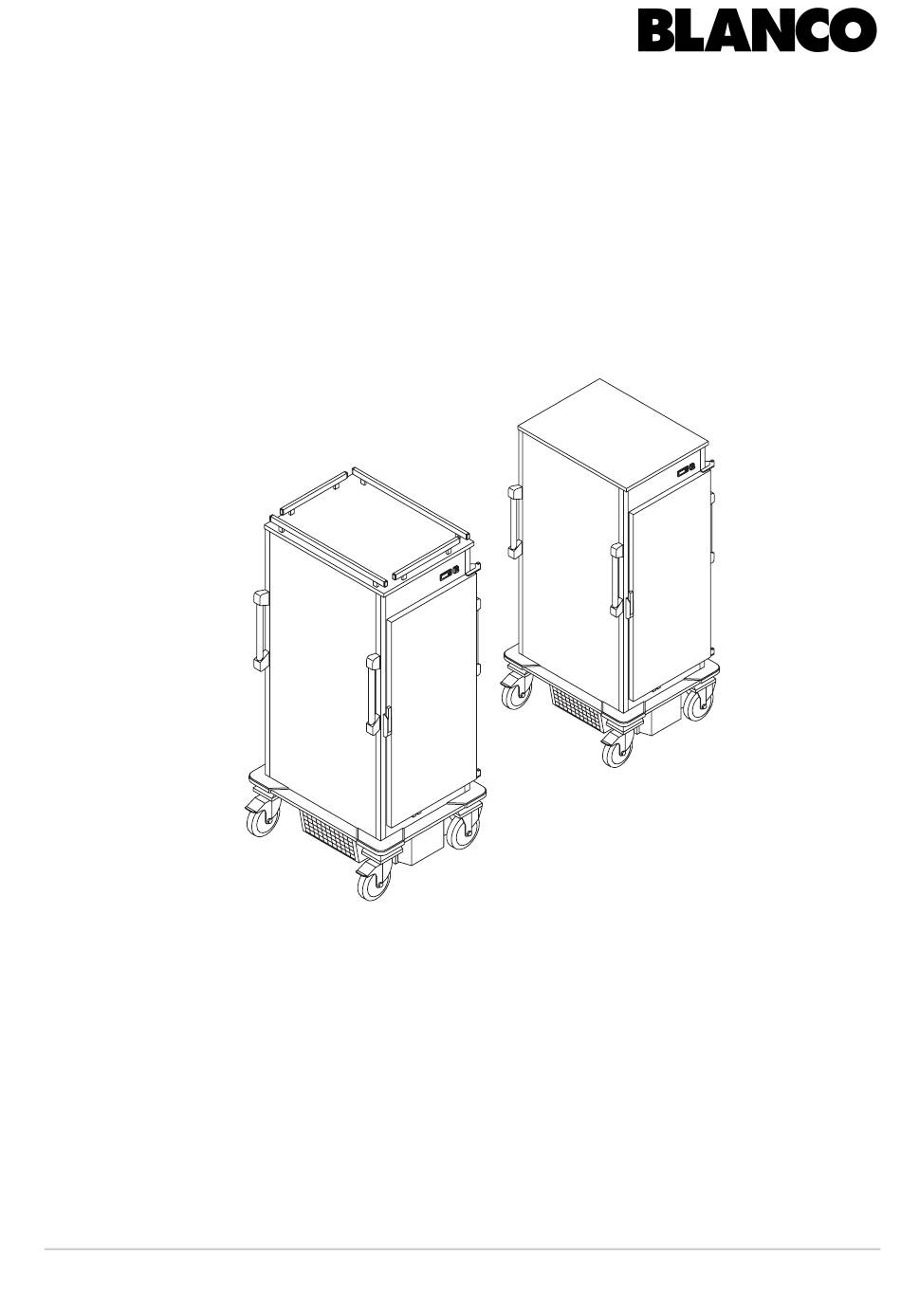

- Page 1 BLANCO INMOTION Banquet Trolleys, Cooled BW-UK 10/15 0/15 Operating Instructions...
- Page 2 BLANCO INMOTION Banquet Trolley, Cooled General information Warranty This unit was manufactured with care using high quality materials and modern production techniques. The period of warranty from the date of purchase for this unit is 24 months and for wearing parts and electrical parts six months. The warranty encompasses all the malfunctions and faults arising through the material and manufacturing.
-
Page 3: Table Of Contents
BLANCO INMOTION Banquet Trolley, Cooled Contents About this product Application ..........1 Conditions of use . - Page 4 Plate carriers ..........40 BLANCO microfiber cleaning cloth ......40 Stainless steel cleaning and care agent BLANCOPOLISH .
-
Page 5: About This Product
BLANCO INMOTION Banquet Trolley, Cooled About this product Application Fully prepared, pre portioned food on plates or food in Gastronorm contain ers is kept cool in the cooled banquet trolley. The cooled banquet trolley is not suitable for cooling down warm dishes and food. -
Page 6: Standard Model
BLANCO INMOTION Banquet Trolley, Cooled Standard model The standard model of the cooled banquet trolley features: Double walled unit body made of stainless steel Double walled hinged door Either 10 or 15 ledge pairs, depending on the unit model Ledge spacing of 115 mm (BW UK 10) or 75 mm (BW UK 15) -
Page 7: Safety
BLANCO INMOTION Banquet Trolley, Cooled Safety General information The unit has been built using state of the art technology. Accordingly, all the requirements necessary for safe operation have been fulfilled. Additional dan gers do nevertheless exist when the unit is operating. The safety precautions and warnings in these operating instructions are there to help you protect yourself against these sources of danger. -
Page 8: Startup
If damage is present, secure the unit against accidental use and have repairs carried out immediately at one of the following locations: In house, by BLANCO trained technician Externally, by BLANCO trained customer service engineer BLANCO Service For repairs to the refrigeration system: Specialist refrigeration engineers Always secure the unit from rolling away by setting the locking brakes. - Page 9 BLANCO INMOTION Banquet Trolley, Cooled Loading To prevent shifting of the center of gravity to the unit top, the unit should gen erally be loaded from the bottom up. When loading with Gastronorm containers, load the support ledges fully, e.g., with two Gastronorm containers of type GN 1/1 on each support ledge, so that the containers cannot slide when changing locations.
-
Page 10: Cleaning And Care
If the effectiveness of the brakes is not sufficient, have the defective castor replaced immediately by one of the following: In house, by BLANCO trained technician Externally, by BLANCO trained customer service engineer BLANCO Service Unit door Check the door seal for damage and aging after each cleaning (visual check). -
Page 11: Repairs
Authorized persons The unit may only be repaired by the following points: In house, by BLANCO trained technician Externally, by BLANCO trained customer service engineer BLANCO Service For repairs to the refrigeration system: Specialist refrigeration engineers The warranty will be invalidated if the unit is repaired by anyone else. -
Page 12: Transportation
Retain the unit and notify BLANCO of the damage, enclosing the waybill. – or – Do not accept the unit and return it to BLANCO via the carrier. This procedure will ensure correct processing of claims. If transportation damage is reported later the consignee must provide evidence of this. -
Page 13: Startup
BLANCO INMOTION Banquet Trolley, Cooled Startup Prerequisites for operation The unit has reached room temperature and is dry The unit is clean The unit and power plug have no known defects or visible damage The locking brakes are locked The unit is switched off... - Page 14 BLANCO INMOTION Banquet Trolley, Cooled Switch on unit with the On/Off switch. The operation indicator LED illuminates. – 10 –...
-
Page 15: Operation
BLANCO INMOTION Banquet Trolley, Cooled Operation Unit overview (1) Power plug and power plug retainer (2) Power cable (3) Magnet for door contact (4) Door lock (5) Push handle (6) Revision panel for the capacitor (7) Unit door: locked at side wall... -
Page 16: Overview Of Temperature Regulator
BLANCO INMOTION Banquet Trolley, Cooled Overview of temperature regulator (1) Temperature display: shows the actual temperature in the unit, setpoint temperature, mini mum/maximum temperatures for temperature undershoot/overshoot, duration of a temperature undershoot/overshoot, information messages. (2) Button rocker "Up/Down arrow": increases/decreases parameter values. -
Page 17: Switching Cooling On And Off
BLANCO INMOTION Banquet Trolley, Cooled Switching cooling on and off The temperature regulator is only functional if cooling is activated. The "Refrigeration unit" operation indicator LED illuminates while the refrigeration unit is running. As soon as the set setpoint temperature is reached, the refrigeration unit switches off until the actual temperature has risen by a preset amount. -
Page 18: Setting The Setpoint Temperature
BLANCO INMOTION Banquet Trolley, Cooled Setting the setpoint When cooling is active, the standard display shows the actual temperature temperature inside the unit. The setpoint temperature is set to +2 °C at the factory. If too low a tem perature is set this will result in the refrigeration unit running permanently (as will also happen when the ambient temperature is too high). -
Page 19: Defrosting The Unit Manually
BLANCO INMOTION Banquet Trolley, Cooled Defrosting the unit manually The unit performs automatic defrosting for max. 15 minutes every 6 hours, which is always followed by a drip off period lasting 8 minutes. Additional manual defrosting is only necessary if the actual temperature increasingly deviates upward from the set setpoint temperature. -
Page 20: Locking And Unlocking The Keyboard
BLANCO INMOTION Banquet Trolley, Cooled Locking and unlocking the Locking the keyboard keyboard The keyboard lock protects against unauthorized access to temperature adjustment, e.g., changing of the setpoint temperature. Only the following functions can be executed when the keyboard is... -
Page 21: Opening A Unit Door
BLANCO INMOTION Banquet Trolley, Cooled Opening a unit door To keep the loss of cool air to a minimum, do not open the door unnec essarily while cooling is active. The temperature regulator is only functional if cooling is activated. -
Page 22: Locking Back The Unit Door
BLANCO INMOTION Banquet Trolley, Cooled Locking back the unit door Open the unit door completely (270°) and press it to the unit side wall until the ball catch (1) perceptibly locks into the door lock (2). Closing the unit door The temperature regulator is only functional if cooling is activated. -
Page 23: Loading The Unit
BLANCO INMOTION Banquet Trolley, Cooled Loading the unit Always insert the food pre cooled. The unit is only suitable for keeping food cool, not for cooling food down. Unit pre cooled 30–100 minutes Food pre cooled for refrigeration Food on plates is covered with cloches... -
Page 24: Moving Unit To A New Location
BLANCO INMOTION Banquet Trolley, Cooled Moving unit to a new location Switching the unit off Switch off the unit with the On/Off switch. The operation indicator LED of the On/Off switch goes out. Unplug the power plug. Insert the power plug into the power plug retainer on the unit. - Page 25 BLANCO INMOTION Banquet Trolley, Cooled Warning! Limited field of vision! When pushing the unit, a person in front of the unit can be overlooked and injured. The unit or an object in front of the unit can be damaged due to lim ited field of vision.
-
Page 26: Traversing Ramps, Recesses, And Slanted Surfaces
BLANCO INMOTION Banquet Trolley, Cooled Traversing ramps, recesses, Do not place objects on top of the unit and slanted surfaces Unit door closed Cooling deactivated (The operation indicator LED of the On/Off switch illuminates) Power plug unplugged and inserted into the power plug retainer... -
Page 27: Checking Temperature Deviations
BLANCO INMOTION Banquet Trolley, Cooled Checking temperature If the actual temperature deviates from the setpoint by a certain amount deviations (–10 °C, +10 °C), this temperature overshoot/undershoot is registered by the temperature regulator. In case of temperature deviations in effect longer than 30 minutes, the "Alarm"... -
Page 28: Resetting A Saved Alarm
BLANCO INMOTION Banquet Trolley, Cooled Resetting a saved alarm The alarm can only be reset if the temperature overshoot/undershoot is no longer in effect. Interrupting the power supply is not an option for resetting the alarm indication. Alarm indications are saved and must be reset manually. -
Page 29: Shutting Down
BLANCO INMOTION Banquet Trolley, Cooled Shutting down Shutting the unit down Switch off the unit with the On/Off switch. The operation indicator LED of the On/Off switch goes out. Unplug the power plug. Insert the power plug into the power plug retainer on the unit. -
Page 30: Help In The Event Of Problems
BLANCO INMOTION Banquet Trolley, Cooled Help in the event of problems Operation indicator LED on on-/off switch does Cause Action not illuminate Power plug is unplugged. Plug the power plug into the electrical outlet. Power plug is damaged; a wire... -
Page 31: Da" Flashes In The Display Of The Temperature Regulator
BLANCO INMOTION Banquet Trolley, Cooled Cause Action "P1" displayed on the tempera Notify a facility authorized to carry out ture regulator of the refrigera repairs. tion unit (the thermostat sensor Chapter "Repairs" on page 36. is defective). Refrigeration unit has failed. -
Page 32: Alarm Indication Of Temperature Regulator (Display: "Hal") - Temperature Overshoot
BLANCO INMOTION Banquet Trolley, Cooled Alarm indication of temperature regulator Cause Action (display: "HAL") – High ambient temperature. Check temperature deviation and temperature overshoot reset saved alarm. Section "Checking temperature deviations" on page 23. Section "Resetting a saved alarm" on page 24. -
Page 33: Pof" Appears In The Display Of The Temperature Regulator When A Button Is Pressed
BLANCO INMOTION Banquet Trolley, Cooled "PoF" appears in the display of the temperature regulator Cause Action when a button is pressed Keyboard locked. Unlock the keyboard. Section "Locking and unlocking the keyboard" on page 16. Corrosion of stainless-steel parts Cause Action Incorrect handling/care. -
Page 34: Cleaning And Care
The prescribed cleaning method for routine daily cleaning is to wipe the unit over with a damp cloth. Persistent soiling may be removed with a brush (synthetic or natural bristles). Any other cleaning method must be approved by BLANCO. Do not use a steam jet device or high pressure cleaner. Cleaning agents... -
Page 35: Emptying The Condensation Water Catch Tray Daily And Cleaning It Every Two Weeks
BLANCO INMOTION Banquet Trolley, Cooled Emptying the condensation- The condensation water catch tray is located on the outside on the bot water catch tray daily and tom right side of the unit. cleaning it every two weeks Pull the condensation water catch tray from the guide. -
Page 36: Removing Areas Of Corrosion On Stainless Steel
BLANCO INMOTION Banquet Trolley, Cooled Removing areas of corrosion New areas of corrosion on stainless steel Unplug power plug from the electrical socket and insert it into the power plug retainer. Remove areas of corrosion with a scouring agent or fine sandpaper. -
Page 37: Maintenance
Have maintenance performed on the unit regularly by appropriately trained professionals. Maintaining the refrigeration BLANCO recommends having the refrigeration unit serviced once a year unit by a specialist company. Exhaust air suction duct of the refrigeration unit Unscrew the four screws on the revision panel of the capacitor on the back of the unit and remove the revision panel. -
Page 38: Checking The Door Seal
If damage is present, order replacement of the defective door seal by one of the following: In house, by BLANCO trained technician Externally, by BLANCO trained customer service engineer BLANCO Service Checking locking brakes The locking brakes must be checked for effectiveness every time the unit is moved to a new location. -
Page 39: Changing The Refrigeration Parameters
BLANCO INMOTION Banquet Trolley, Cooled Changing the refrigeration The refrigeration parameters of the temperature regulator (such as parameters switching hysteresis) can be modified or reset as required by a refrigera tion engineer. Information on setting the temperature regulator will be found in the separate operating instructions for the temperature regula tor. -
Page 40: Repairs
Externally, by BLANCO trained customer service engineer BLANCO Service For repairs to the refrigeration system: Specialist refrigeration engi neers Description of problem In order to assess the problem, BLANCO Service requires the following infor mation from the rating plate: Article number Serial number Date of manufacture Model The rating plate is located near the power line to the unit. -
Page 41: Address
BLANCO INMOTION Banquet Trolley, Cooled BLANCO CS GmbH + Co KG Address Catering Systems P.O. Box 13 10 75033 Oberderdingen GERMANY Phone +49 7045 44 81416 +49 7045 44 81508 E mail cs.service@blanco.de Internet www.blanco.de Disposal Disposing of the unit Have the coolant disposed of by a specialist refrigeration company in accordance with the applicable statutory regulations. -
Page 42: Technical Data
BLANCO INMOTION Banquet Trolley, Cooled Technical data General data Dimensions and weights (standard variant) Model Length Width Height Empty Max. load in mm in mm in mm weight weight in kg in kg BW UK 10 1816 BW UK 15... -
Page 43: Environment
BLANCO INMOTION Banquet Trolley, Cooled Environment Environmental conditions – operation Temperature range: +15 °C to +32 °C Relative humidity: Without condensation Environmental conditions – storage, transportation Temperature range: –10 °C to +40 °C Relative humidity: Without condensation Material Unit body:... -
Page 44: Ordering Information
BLANCO INMOTION Banquet Trolley, Cooled Ordering information BW-UK 10 Article number: 572 876, 367 435 BW-UK 15 Article number: 572 877, 367 435 Operating instructions Document number: 154 351 Accessories Gastronorm grates, GR 2/1 Article numbers: BLANCO price list Gastronorm containers... - Page 45 BGV A 3 (VBG 4): Accident prevention regulations for electrical units and devices. DIN EN ISO 9001: BLANCO is certified in accordance with DIN EN ISO 9001. HKI quality mark: Collective mark of the German industry association for home, heating and kitchen technology (Industrieverband Haus , Heiz und Küchentechnik e.
- Page 46 BLANCO INMOTION Banquet Trolley, Cooled – 42 –...
- Page 48 BLANCO CS GmbH + Co KG Catering Systems P.O. Box 13 10 75033 Oberderdingen GERMANY Phone + 49 7045 44 81416 + 49 7045 44 81508 E mail cs.service@blanco.de Internet www.blanco.de...
