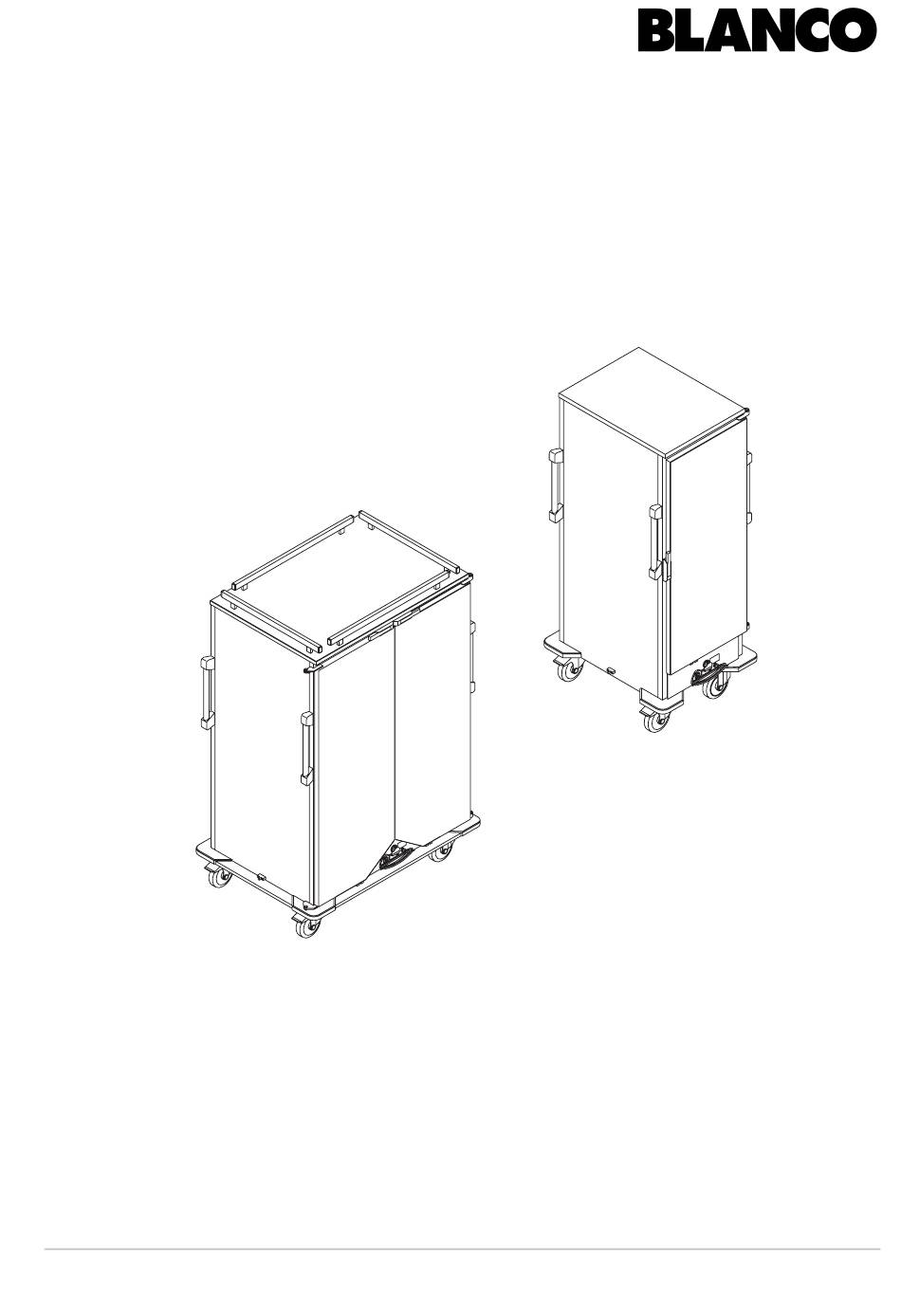

- Page 1 BLANCO INMOTION Banquet Trolley, Heated BW 11/BW 18/BW 22/BW 36 22/BW 36 Operating Instructions...
- Page 2 BLANCO INMOTION Banquet Trolley, Heated General information Warranty This unit was manufactured with care using high quality materials and modern production techniques. The period of warranty from the date of purchase for this unit is 24 months and for wearing parts and electrical parts 6 months. The warranty encompasses all the malfunctions and faults arising through the material and manufacturing.
-
Page 3: Table Of Contents
BLANCO INMOTION Banquet Trolley, Heated Contents About this product Application ..........1 Conditions of use . - Page 4 Plate carriers ..........33 BLANCO microfiber cleaning cloth ......33 Stainless steel cleaning and care agent BLANCOPOLISH .
-
Page 5: About This Product
BLANCO INMOTION Banquet Trolley, Heated About this product Application The heated banquet trolley is used for keeping warm fully prepared, pre por tioned food on plates with cloches on Gastronorm grates or food in Gas tronorm containers. The heated banquet trolley is not suitable for heating up or cooking food. It may not be used as a room heater. -
Page 6: Standard Model
BLANCO INMOTION Banquet Trolley, Heated The convection heating module has a power cable with power plug, an On/ Off switch for starting and ending temperature maintenance and a separate temperature regulator. The temperature range of the temperature regulator lies between +30 °C and +90 °C. -
Page 7: Safety
BLANCO INMOTION Banquet Trolley, Heated Safety General information The unit has been built using state of the art technology. Accordingly, all the requirements necessary for safe operation have been fulfilled. Additional dan gers do nevertheless exist when the unit is operating. The safety precautions and warnings in these operating instructions are there to help you protect yourself against these sources of danger. -
Page 8: Operation
If damage is present, secure the unit against accidental use and have repairs carried out immediately at one of the following locations: In house, by BLANCO trained technician Externally, by BLANCO trained customer service engineer BLANCO Service Always secure the unit from rolling away by setting the locking brakes. The unit can cause injuries and damage to property if allowed to roll away acci dentally. - Page 9 BLANCO INMOTION Banquet Trolley, Heated Hot convection heating module, unit parts, objects and food The convection heating module, the unit interior and objects contained within the unit (e.g. Gastronorm containers) heat up during operation (up to approx. +90 °C) and can cause burns.
-
Page 10: Shutting Down
If the effectiveness of the brakes is not sufficient, have the defective castor replaced immediately by one of the following: In house, by BLANCO trained technician Externally, by BLANCO trained customer service engineer BLANCO Service Unit doors Check the door seal for damage and aging after each cleaning (visual check). -
Page 11: Repairs
Authorized persons The unit may only be repaired by the following service points: In house, by BLANCO trained technician Externally, by BLANCO trained customer service engineer BLANCO Service The warranty will be invalidated if the unit is repaired by anyone else. -
Page 12: Transportation
Retain the unit and notify BLANCO of the damage, enclosing the waybill. – or – Do not accept the unit and return it to BLANCO via the carrier. This procedure will ensure correct processing of claims. If transportation damage is reported later the consignee must provide evidence of this. -
Page 13: Startup
BLANCO INMOTION Banquet Trolley, Heated Startup Prerequisites for operation The unit has reached room temperature and is dry The unit is clean The convection heating module is inserted The unit and power plug have no known defects or visible damage... -
Page 14: Operation
BLANCO INMOTION Banquet Trolley, Heated Operation Unit overview (1) Door lock (2) Unit door (3) Dividing wall (optional) (4) Support ledge (5) Water container (6) Splash plate (7) Impact protection strip (optional) (8) Fixed castor (9) Power plug and power plug retainer... -
Page 15: Overview Of Temperature Regulator
BLANCO INMOTION Banquet Trolley, Heated Overview of temperature regulator (1) Temperature display: displays the actual temperature in the unit, the setpoint temperature and informational messages. (2) Button rocker "Up/Down arrow": increases/decreases parameter values. (3) SET: setpoint display; during programming mode, saving of modified parameter values. -
Page 16: Switching The Unit Off
BLANCO INMOTION Banquet Trolley, Heated Switching the unit off Switch off the unit with the On/Off switch. The operation indicator LED of the On/Off switch goes out. Setting the setpoint When the convection heating module is activated, the standard display temperature shows the actual temperature inside the unit. -
Page 17: Locking And Unlocking The Keyboard
BLANCO INMOTION Banquet Trolley, Heated To save the changed setpoint temperature press the "SET" button briefly. – or – Wait approx. 10 seconds. The setpoint temperature is set. The operation indicator LED of the tem perature regulator stops flashing. The actual temperature inside the unit is displayed. - Page 18 BLANCO INMOTION Banquet Trolley, Heated Caution! Hand can be pinched! Your hands can be pinched to the side walls and injured when locking the unit door. Do not put your hand between the unit door and the unit or hold it there when locking.
-
Page 19: Locking Back The Unit Door
BLANCO INMOTION Banquet Trolley, Heated Locking back the unit door Open the unit door completely (270°) and press it to the unit side wall until the ball catch (1) perceptibly locks into the door lock (2). Closing the unit door... -
Page 20: Moving Unit To A New Location
BLANCO INMOTION Banquet Trolley, Heated Warning! Hot convection heating module! The convection heating module becomes very hot during temperature main tenance and can cause burns. When loading, avoid direct contact with the convection heating module. Warning! Danger of tipping when center of gravity is at the top of the unit! If Gastronorm containers are only loaded at the top of the device, the center of gravity moves upward, and there is a risk that the unit could tip over. - Page 21 BLANCO INMOTION Banquet Trolley, Heated Unplug the power plug. Wind the power cable around the power cable retainer. Insert the power plug into the power plug retainer on the unit. Change of location If the traversal route is uneven, special measures must be taken.
- Page 22 BLANCO INMOTION Banquet Trolley, Heated Warning! Limited visibility! When pushing the unit, a person in front of the unit can be overlooked and injured. The unit or an object in front of the unit can be damaged due to lim ited visibility.
-
Page 23: Traversing Ramps, Recesses And Slanted Surfaces
BLANCO INMOTION Banquet Trolley, Heated Traversing ramps, recesses No objects on top of the unit and slanted surfaces Unit door(s) closed Water container emptied Power plug unplugged and power cable is wound around the retainer Two people Warning! The unit can tip! The unit can tip over when traversing a slanted surface. - Page 24 BLANCO INMOTION Banquet Trolley, Heated Warning! Hot convection heating module, hot unit interior and hot Gastronorm containers! When maintaining the temperature of food, the convection heating module, the unit interior and the Gastronorm containers or other objects contained in it become hot and could cause burns.
-
Page 25: Shutting Down
BLANCO INMOTION Banquet Trolley, Heated Shutting down Shutting the unit down Switch off the unit with the On/Off switch. The operation indicator LED of the On/Off switch goes out. Unplug the power plug. Wind the power cable around the retainer. -
Page 26: Help In The Event Of Problems
BLANCO INMOTION Banquet Trolley, Heated Help in the event of problems Operation indicator LED on On /Off switch does Cause Action not illuminate Power plug is not plugged in. Plug the power plug into the electrical outlet. Power plug is damaged; a wire... -
Page 27: Corrosion Of Stainless Steel Parts
BLANCO INMOTION Banquet Trolley, Heated Corrosion of stainless-steel parts Cause Action Incorrect handling/care. Remove the areas of corrosion. Section “Removing areas of cor rosion on stainless steel” on page 28. Ensure proper handling/care. The unit has external damage Cause Action Damage during transport, Shut the unit down. - Page 28 The prescribed cleaning method for routine daily cleaning is to wipe the unit over with a damp cloth. Stubborn soiling may be removed with a brush (synthetic or natural bristles). Any other cleaning method must be approved by BLANCO. Do not use a steam jet device or high pressure cleaner. Cleaning agents...
- Page 29 BLANCO INMOTION Banquet Trolley, Heated Warning! Electric shock due to water penetrating the convection heating module! If the unit is cleaned with the convection heating module installed, water can penetrate the convection heating module. In this case, a risk of electric shock is present when the convection heating module is connected to the power supply again.
- Page 30 BLANCO INMOTION Banquet Trolley, Heated Removing/installing the Unit disconnected from power supply convection heating module Unit door/doors open Power cable wound up and the plug in the power plug retainer Unit interior and convection heating module have cooled at least 20 minutes Pull the convection heating module out of the unit at the front panel;...
- Page 31 BLANCO INMOTION Banquet Trolley, Heated After cleaning the convection heating module, insert the splash plate back into the water container. Slide the convection heating module between the nubs of the guide until it stops. If necessary: Plug in the power plug.
- Page 32 BLANCO INMOTION Banquet Trolley, Heated Tilt the dividing wall to the side and remove it from the unit. If necessary, clean the dividing wall using the cleaning methods described above. Section “Cleaning methods” on page 24. Section “Cleaning agents” on page 24.
- Page 33 Use 10 % nitric acid if cleaning with oxalic acid is unsuccessful. Maintenance Having the unit regularly BLANCO recommends regular maintenance of the unit by appropriately maintained trained professionals. Regular maintenance prevents failure of the unit, extends its operating life and contributes to general value retention.
- Page 34 There are two rating plates on the unit. One rating plate is located on the con vection heating module, and the other on the back of the unit. In order to assess the problem, BLANCO Service requires the following information from the rating plates:...
- Page 35 Designation of spare part Article number Date of manufacture of the unit Quantity Refer to the service CD ROM and service documentation (available from BLANCO Service). BLANCO CS GmbH + Co KG Address Catering Systems P.O. Box 13 10 75033 Oberderdingen GERMANY...
- Page 36 BLANCO INMOTION Banquet Trolley, Heated Technical data General data Dimensions and weights (standard variant) Model Length Width Height Empty Max. load in mm in mm in mm weight weight in kg in kg Banquet trolley BW 11 756 1778 Banquet trolley BW 18 756...
- Page 37 BLANCO INMOTION Banquet Trolley, Heated Environment Environmental conditions – operation Temperature range: +15 °C to +32 °C Relative humidity: without condensation Environmental conditions – storage, transportation Temperature range: –10 °C to +40 °C Relative humidity: without condensation Material Unit body:...
- Page 38 BGV A 3 (VBG 4): Accident prevention regulations for electrical units and devices. DIN EN ISO 9001: BLANCO is certified in accordance with DIN EN ISO 9001. HKI quality mark: Collective mark of the German industry association for home, heating and kitchen technology (Industrieverband Haus , Heiz und Küchentechnik e.
- Page 40 BLANCO CS GmbH + Co KG Catering Systems P.O. Box 13 10 75033 Oberderdingen GERMANY Phone + 49 7045 44 81416 + 49 7045 44 81508 E mail cs.service@blanco.de Internet www.blanco.de...
